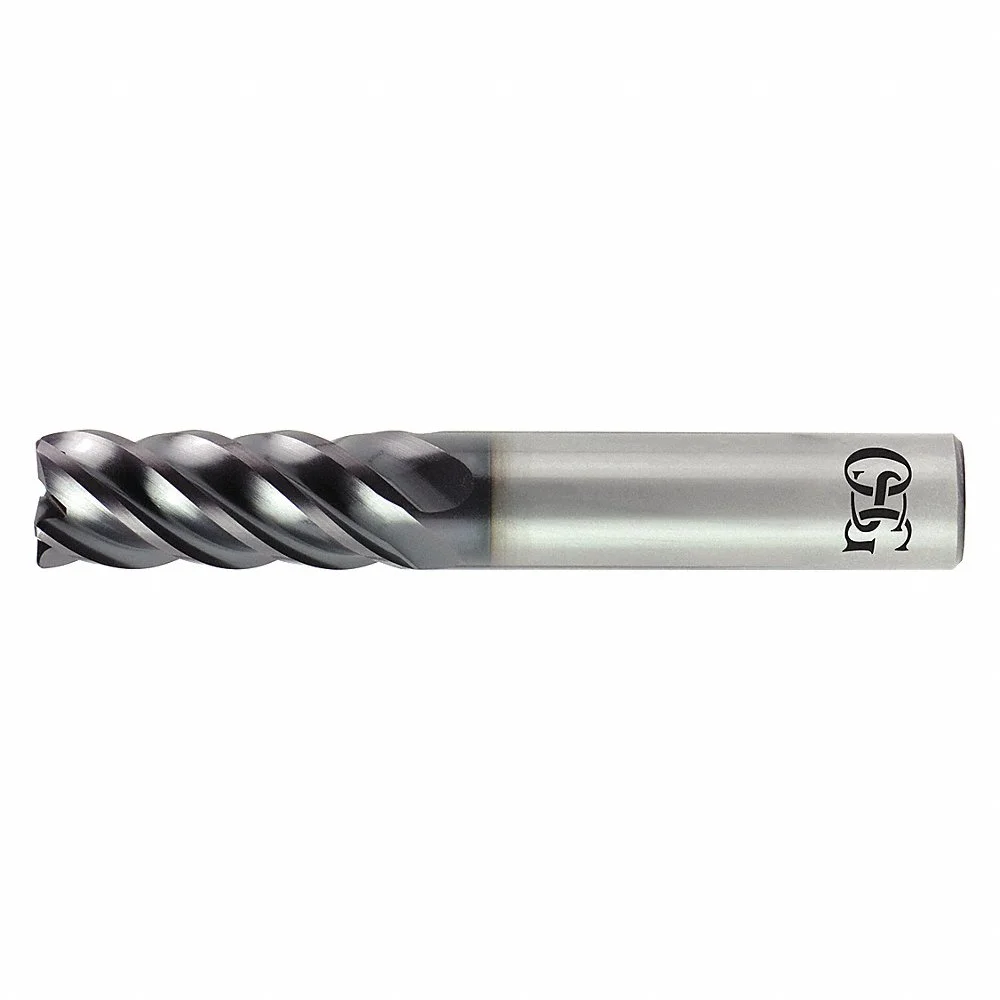

OSG 20551002 Corner Radius End Mill, 5 Flutes, 1 Inch Milling Dia, 1 1/2 Inch Length Of Cut
Item: CT4WZLModel: 20551002Cross Ref: 34ZT86
7 In Stock
1"
1"
Ships within 2 days via
10.00% off
€665.69 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Corner Radius End Mill |
| Cast Iron (k) Compatibility | Yes |
| Corner Radius | 0.06" |
| Cutting Direction | Right Hand |
| Cutting Direction - Machining | Right Hand |
| Cutting Length | 1 1/2" |
| Cutting Type | Center Cutting |
| Dimension Type | Fractional Inch |
| Drilling Tool Configuration | Individual |
| End Mill Application | Roughing/Finishing |
| End Mill Cutting Type | Center Cutting |
| End Mill Style | Corner Radius |
| End Type | Single End |
| Finish | Exo |
| Finish - Machining | EXO |
| Grade | General Purpose |
| Hardened Compatibility | No |
| Helix Angle | Variable |
| List Number | 2055 |
| Material | Carbide |
| Material - Machining | Carbide |
| Material Grade - Machining | General Purpose |
| Milling Dia. | 1" |
| Non Ferrous (n) Compatibility | No |
| Number Of Flutes | 5 |
| Overall Length | 4" |
| Primary Material Application | Nickel |
| Primary Material Application Iso Code | S |
| Shank Dia. | 1" |
| Shank Type | End Mill , Weldon Flat |
| Shank Type - Machining | Weldon Flat |
| Single End/double End | Single End |
| Stainless (m) Compatibility | Yes |
| Steel (p) Compatibility | Yes |
| Super Alloy (s) Compatibility | No |
| System Of Measurement | Fractional Inch |
Shipping Info:
| Ship weight (kg) | 0.41 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Milling Dia. | Helix Angle | Overall Length | Corner Radius | Shank Dia. | List Number | Number Of Flutes | Length Of Cut | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| HP432-5006 | 1/2" | 35° | 3" | 0.06" | 1/2" | HP432 | 2 | - | €191.51 | |
| HP432-2502 | 1/4" | 35° | 2 1/2" | 0.02" | 1/4" | HP432 | 2 | - | €70.08 | |
| HP432-1251 | 1/8" | 35° | 1 1/2" | 0.015" | 1/8" | - | 2 | - | €35.45 | |
| HP432-1872 | 3/16" | 35° | 2" | 0.02" | 3/16" | HP432 | 2 | - | €53.09 | |
| HP432-7512 | 3/4" | 35° | 4" | 1/8" | 3/4" | HP432 | 2 | - | €509.30 | |
| HP432-7509 | 3/4" | 35° | 4" | 0.09" | 3/4" | HP432 | 2 | - | €509.30 | |
| HP432-7506 | 3/4" | 35° | 4" | 0.06" | 3/4" | HP432 | 2 | - | €509.30 |
