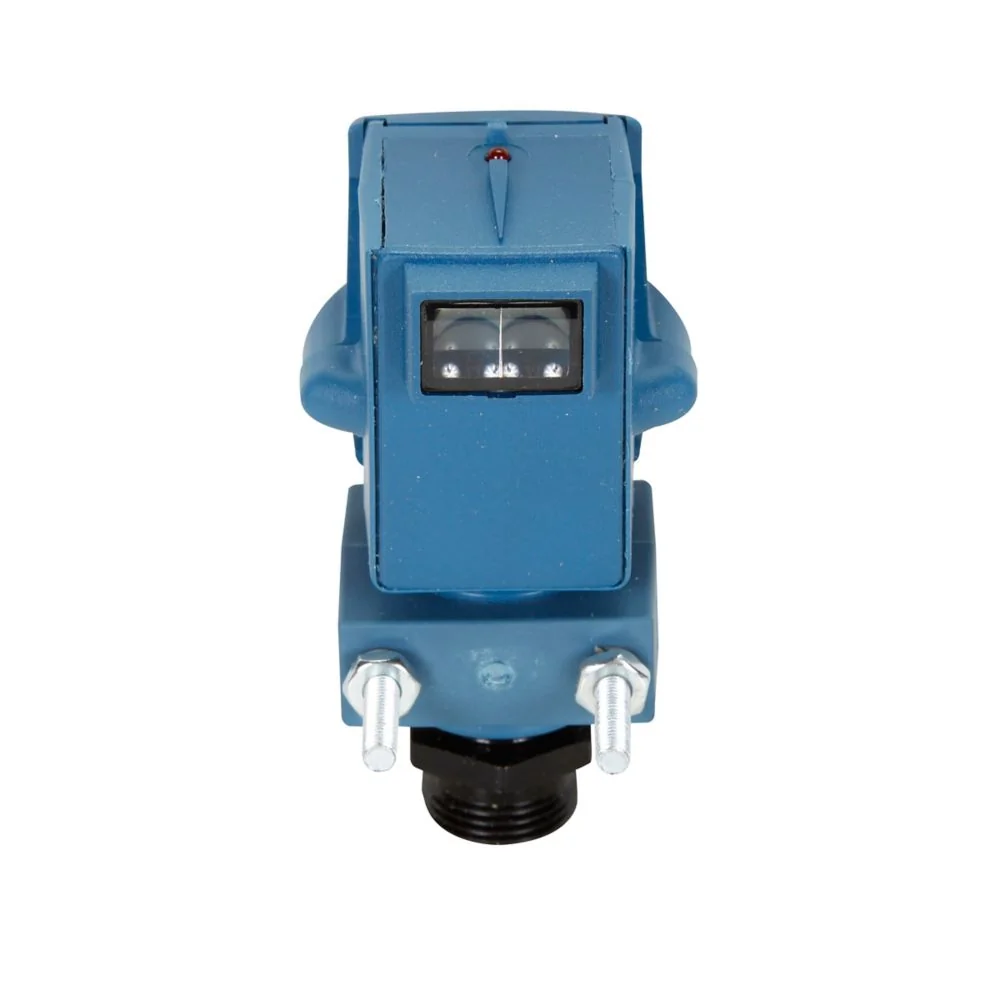

EATON 1351B-6501 Photoelectric Sensor, Distance 24 Inch, 5 Pin Mini Connector, 90-132 VAC
Get it by Tuesday, Sep 1
€851.07 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Photoelectric Sensor |
| Connection | 5-pin Mini Connector |
| Contact Configuration | Depends On Output Device |
| Contact Rating | Depends On Output Device |
| Enclosure Lens Material | Nylon |
| Enclosure Material | Noryl |
| Input Voltage | 90-132V AC |
| Led Indicator | Output Status, Red |
| Max. Amps | Depends On Output Device |
| Max. Operating Temp. | 158°F |
| Min. Operating Temp. | -40°F |
| Nema Enclosure Rating | NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4 |
| Operating Mode | Diffuse Reflective |
| Sensor Type | Diffuse Reflective |
| Switch Type | Photoelectric |
Shipping Info:
| Ship weight (kg) | 1.67 |
| Ship height (cm) | 14.48 |
| Ship length (cm) | 9.63 |
| Ship width (cm) | 19.43 |
Product Variants
| Model | Input Voltage | Height | Sensor Type | Max. Amps | Min. Operating Temp. | Contact Configuration | Contact Rating | Operating Mode | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 1250B-6501 | 90-132V AC | 3.19" | Through Beam | Depends On Output Device | -22°F | Depends On Output Device | Depends On Output Device | Thru Beam | €1,194.77 | |
| 1250B-6502 | 180-264V AC | 3.19" | Through Beam | Depends On Output Device | -22°F | Depends On Output Device | Depends On Output Device | Thru Beam | €1,246.14 | |
| 1250B-6507 | 10-30V DC | 3.19" | Through Beam | 250 mA | -22°F | NPN And PNP Open Collector | 250 MA at 30V DC | Thru Beam | - | RFQ
|
| 1250B-6511 | 90-132V AC | 3.19" | Through Beam | Depends On Output Device | -22°F | Depends On Output Device | Depends On Output Device | Thru Beam | €1,135.54 | |
| 1250BS9352 | 90-132V AC | 3.19" | Through Beam | Depends On Output Device | -22°F | Depends On Output Device | Depends On Output Device | Thru Beam | €1,318.41 | |
| 1250B-6517 | 10-30V DC | 3.19" | Through Beam | 250 mA | -22°F | NPN And PNP Open Collector | 250 MA at 30V DC | Thru Beam | €1,045.20 | |
| 1250B-6512 | 180-264V AC | 3.19" | Through Beam | Depends On Output Device | -22°F | Depends On Output Device | Depends On Output Device | Thru Beam | €1,135.54 |
