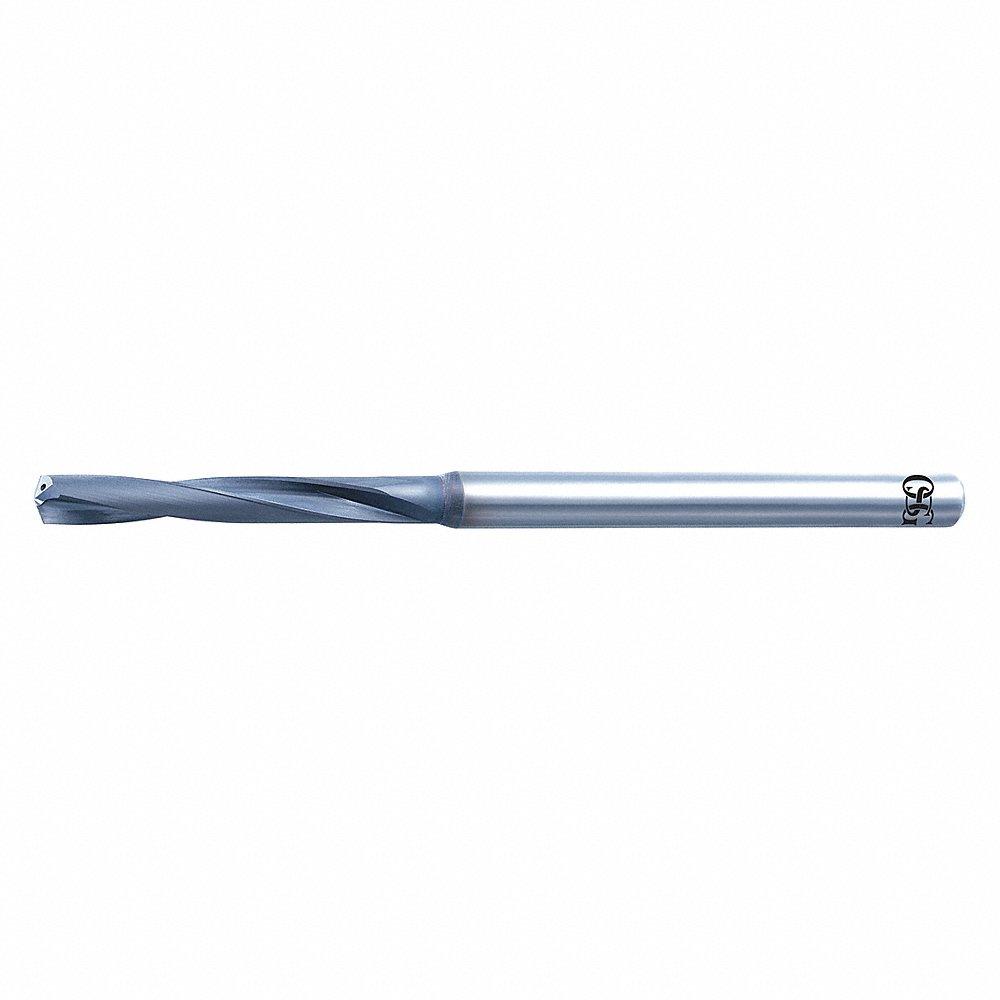

OSG 3316400 Jobber Length Drill Bit, 4 mm Drill Bit Size, 78 mm Overall Length | CT6DQN 34XF65

OSG 3316400 Jobber Length Drill Bit, 4 mm Size, 78 mm Overall Length

Item: CT6DQNModel: 3316400Cross Ref: 34XF65
7 In Stock

Ships within 2 days via

€195.53
10.00% off
€175.98 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Jobber Length Drill Bit
Coolant Fed Coolant Through
Coolant Through No
Cutting Direction Right Hand
Decimal Equivalent 0.1575
Depthdia. Ratio 5xd
Drill Bit Dimension Type Metric
Drill Bit Grouping Drill Bit
Drill Bit Material Solid Carbide
Drill Bit Point Angle 140°
Drill Bit Point Type R Thinning Point
Drill Bit Size 4 mm
Drill Diameter Tolerance -0.018 mm to 0 mm
Drill Length Class Jobber Length
Finish WXS
Finish - Machining WXS
Flute Length 36 mm
Flute Type Slow Spiral
Helix Angle +12° to +20°
Material Carbide
Material - Machining Carbide
Max. Drilling Depth 36 mm
Mfr. Series 5955NI
Number Of Coolant Holes 2
Number Of Flutes 2
Overall Length 78 mm
Point Angle 140°
Point Type R Thinning Point
Primary Material Application Hardened Steel, Nickel, Steel
Primary Material Application Iso Code H, P, S
Secondary Material Application Cast Iron, Die Steel, Hardened Steel, High Carbon Steel, Low Carbon Steel, Medium Carbon Steel
Secondary Material Application Iso Code H, K, P
Series 5955NI Series
Shank Dia. 6 mm
Shank Length 42 mm
Shank Type Straight
Shank Type - Machining Straight
Sheeter Drill No
Size 4 mm
Standards Not Rated
System Of Measurement Metric

Shipping Info:

Ship weight (kg) 0.05
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54

Product Variants

ProductModelDecimal EquivalentMax. Drilling DepthFlute TypeShank Dia.Flute LengthOverall LengthDrill Bit SizeDrill Bit Point TypePrice
OSG 3316480 Jobber Length Drill Bit, #12 Drill Bit Size, 88 mm Overall Length | CT6CCF 34XF74 33164800.18945 mmSlow Spiral6 mm45 mm88 mm#12R Thinning Point€205.30
OSG 8702480 Jobber Length Drill Bit, #12 Drill Bit Size, 95 mm Overall Length | CT6CCG 405N88 87024800.18944 mmSpiral6 mm44 mm95 mm#12X Thinning Point€184.48
OSG 8692480 Jobber Length Drill Bit, #12 Drill Bit Size, 95 mm Overall Length, Carbide | CT6CCJ 405N87 86924800.18944 mmSpiral5 mm44 mm95 mm#12X Thinning Point€184.48
OSG 8667480 Jobber Length Drill Bit, #12 Drill Bit Size, 95 mm Overall Length, Carbide | CT6CCK 54LN31 86674800.18944 mmSpiral5 mm44 mm95 mm#12R Thinning Point€174.07
OSG HP255-1850 Jobber Length Drill Bit, #13 Drill Bit Size, 74 mm Overall Length | CT6CCT 34YA19 HP255-18500.18536 mmSpiral6 mm36 mm74 mm#13R Thinning Point€102.70
OSG 3316470 Jobber Length Drill Bit, #13 Drill Bit Size, 88 mm Overall Length | CT6CCV 34XF73 33164700.18543 mmSlow Spiral6 mm43 mm88 mm#13R Thinning Point€205.30
OSG 8702470 Jobber Length Drill Bit, #13 Drill Bit Size, 95 mm Overall Length | CT6CCW 405N85 87024700.18543 mmSpiral6 mm43 mm95 mm#13X Thinning Point€184.48
