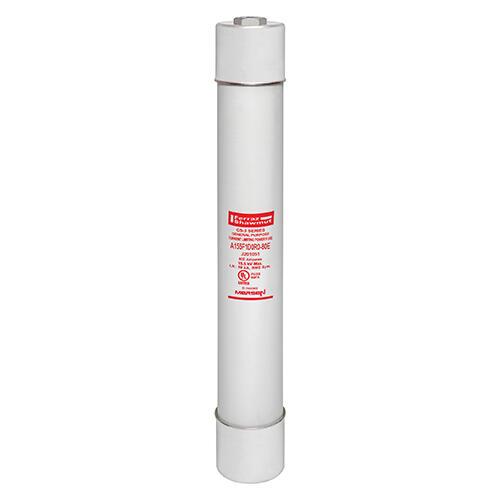

MERSEN FERRAZ A155F1D0R0-80E Fuse, Medium Voltage, 15500V, 80A, E Rated, Ferrule Mount Striker
Get it by Tuesday, Sep 1
€3,597.00 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Medium Voltage Fuse |
| Ac Max. I R Breaking Capacity I1 | 50 kA |
| Ac Voltage | 15500V AC |
| Ac/dc | AC |
| Amps | 80A |
| Body Material | Polytube |
| Body/insulating Material | Polytube |
| Connection/terminal Material | Copper |
| Connection/terminal Type | Ferrule |
| Dia. | 76.2 mm |
| Finish | Silver Plated |
| Frequency | 50/60 Hz |
| Indication System | Yes |
| Indication System Type | Visual Indicator |
| Length | 552.4 mm |
| Mounting | Clip |
| Product Datasheet | mersen-ferraz-9f60cjh002.pdf |
| Product Group | Medium Voltage IEEE Fuses |
| Rated Voltage Ac Ul | 15500V |
| Speed Characteristic | E Rated |
Shipping Info:
| Ship weight (kg) | 5.88 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 60.33 |
| Ship width (cm) | 10.16 |
Documentation:
Product Variants
| Product | Model | Amps | Body/insulating Material | Dia. | Height | Ac Voltage | Mounting | Frequency | Ac Max. I R Breaking Capacity I1 | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
9F60CJH002 | 2A | Epoxy | 50.8 mm | - | 15500V AC | Clip | 50/60 Hz | 50 kA | €1,577.40 | |
|
9F60CJH003 | 3A | Epoxy | 50.8 mm | - | 15500V AC | Clip | 50/60 Hz | 50 kA | €1,577.40 | |
|
9F60CJH005 | 5A | Epoxy | 50.8 mm | - | 15500V AC | Clip | 50/60 Hz | 50 kA | €1,729.20 | |
|
9F60CJH007 | 7A | Epoxy | 50.8 mm | - | 15500V AC | Clip | 50/60 Hz | 50 kA | €1,577.40 | |
|
9F60CJH010 | 10A | Epoxy | 50.8 mm | - | 15500V AC | Clip | 50/60 Hz | 50 kA | €1,577.40 | |
 |
9F60DMH001 | 1A | Epoxy | 50.8 mm | - | 15500V AC | Clip | 50/60 Hz | 50 kA | €1,755.60 | |
 |
9F60DMH002 | 2A | Epoxy | 50.8 mm | - | 15500V AC | Clip | 50/60 Hz | 50 kA | €1,755.60 |
