Medium Voltage Fuses

MERSEN FERRAZ -

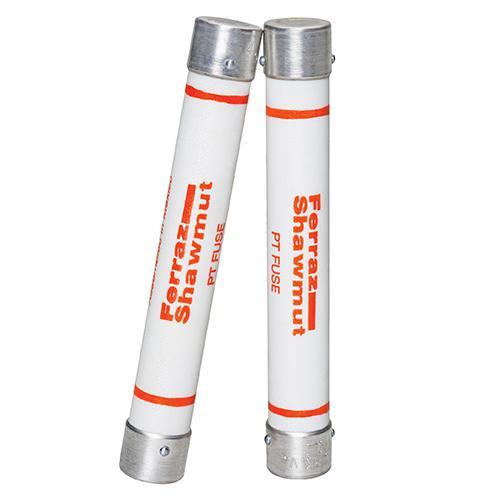

0.625kV to 15.5kV PT Fuses

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Style	Model	Ac Voltage	Amps	Ac Max. I R Breaking Capacity I1	Connection/terminal Material	Rated Voltage Ac Ul	Body/insulating Material	Dia.	Finish	Price	Pkg. Qty.

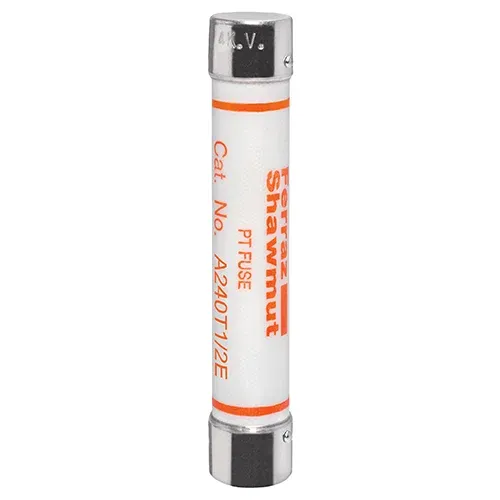

A	A240T1/2E	-	-	-	-	-	-	-	-	€557.04	2
B	9F60AAA005	625V AC	5A	100 kA	Copper	625V	Epoxy	20.6 mm	-	€375.12	2
C	9F60AAA010	625V AC	10A	100 kA	Copper	625V	Epoxy	20.6 mm	-	€375.12	2
D	9F60AAA003	625V AC	3A	100 kA	Copper	625V	Epoxy	20.6 mm	-	€375.12	2
E	9F60AAA007	625V AC	7A	100 kA	Copper	625V	Epoxy	20.6 mm	-	€384.36	2

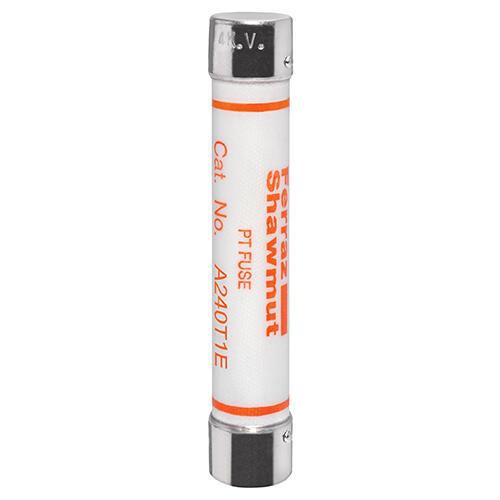

F	A240T1E	2400V AC	1A	50 kA	Copper	2400V	GMG	20.6 mm	TiN Plated	€557.04	2
G	A240T5E	2400V AC	5A	50 kA	Copper	2400V	GMG	20.6 mm	TiN Plated	€557.04	2
H	A240T2E	2400V AC	2A	50 kA	Copper	2400V	GMG	20.6 mm	TiN Plated	€155.73	1
I	9F60BBB003	2750V AC	3A	52 kA	Copper	2750V	Epoxy	39.6 mm	-	€641.52	1
J	9F60AAB001	2750V AC	1A	52 kA	Copper	2750V	Epoxy	20.6 mm	-	€492.59	2
K	9F60BDB003	2750V AC	3A	52 kA	Copper	2750V	Epoxy	39.6 mm	-	€621.72	1

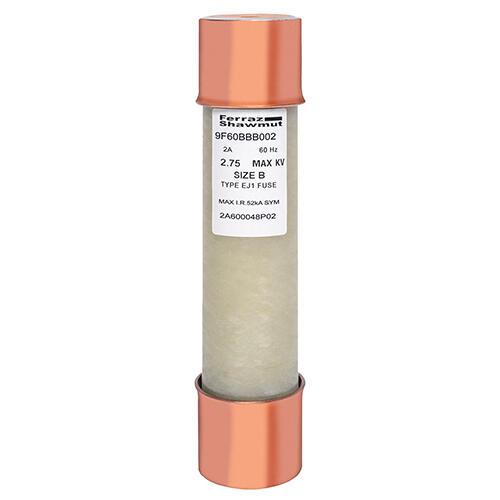

L	9F60BBB002	2750V AC	2A	52 kA	Copper	2750V	Epoxy	39.6 mm	-	€641.52	1
M	9F60BDB002	2750V AC	2A	52 kA	Copper	2750V	Epoxy	39.6 mm	-	€621.72	1

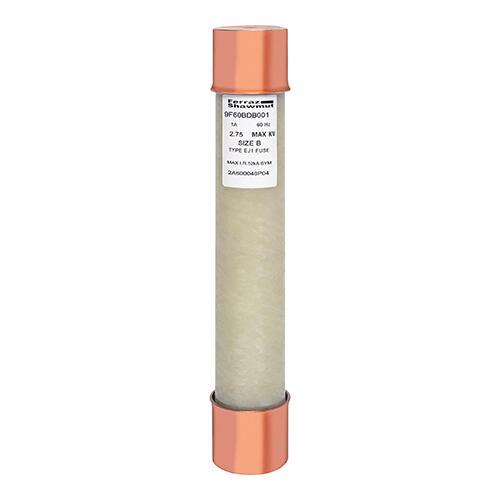

N	9F60BDB001	2750V AC	1A	52 kA	Copper	2750V	Epoxy	39.6 mm	-	€621.72	1
J	9F60AAB002	2750V AC	2A	52 kA	Copper	2750V	Epoxy	20.6 mm	-	€492.59	2
O	9F60BBB001	2750V AC	1A	52 kA	Copper	2750V	Epoxy	39.6 mm	-	€641.52	1

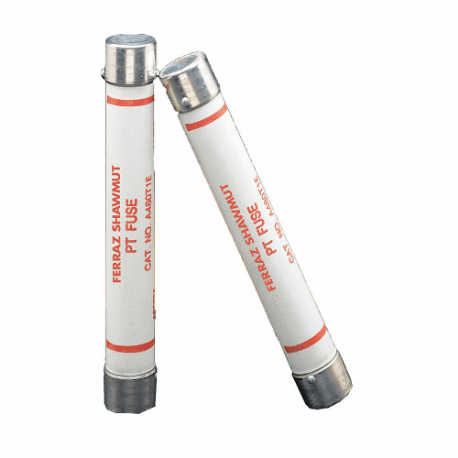

P	A480T1/2E	4800V AC	0.5A	50 kA	Copper	4800V	GMG	20.6 mm	TiN Plated	€219.67	1
Q	A500T5E-1	5000V AC	5A	50 kA	Brass	5000V	GMG	25.4 mm	TiN Plated	€348.48	1

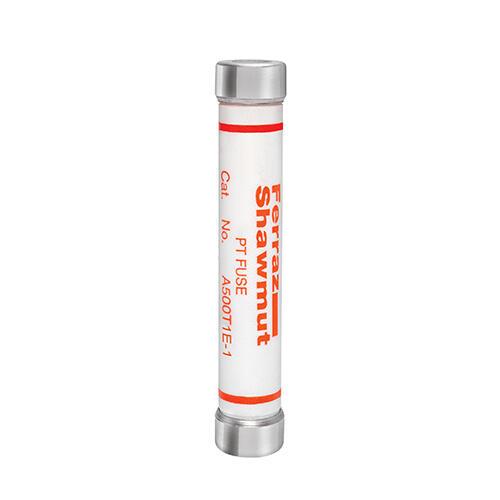

R	A500T1E-1	5000V AC	1A	50 kA	Brass	5000V	GMG	25.4 mm	TiN Plated	€578.16	2
S	A500T3E-1	5000V AC	3A	50 kA	Brass	5000V	GMG	25.4 mm	TiN Plated	€321.20	1
T	A500T2E-1	5000V AC	2A	50 kA	Brass	5000V	GMG	25.4 mm	TiN Plated	€578.16	2
U	A500T4E-1	5000V AC	4A	50 kA	Brass	5000V	GMG	25.4 mm	TiN Plated	€696.96	2

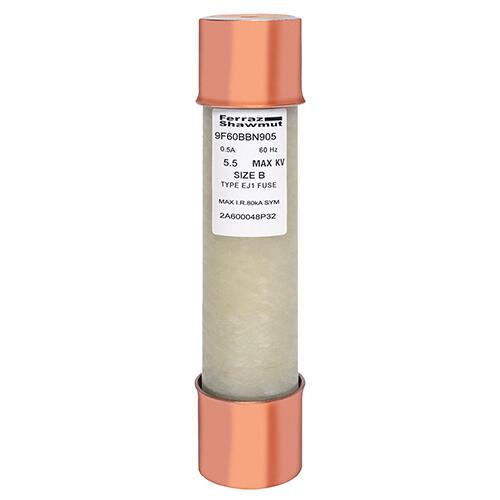

V	9F60BBN905	5500V AC	0.5A	63 kA	Copper	5500V	Epoxy	39.6 mm	-	€629.64	1
W	9F60BDD905	5500V AC	0.5A	63 kA	Copper	5500V	Epoxy	39.6 mm	-	€637.56	1

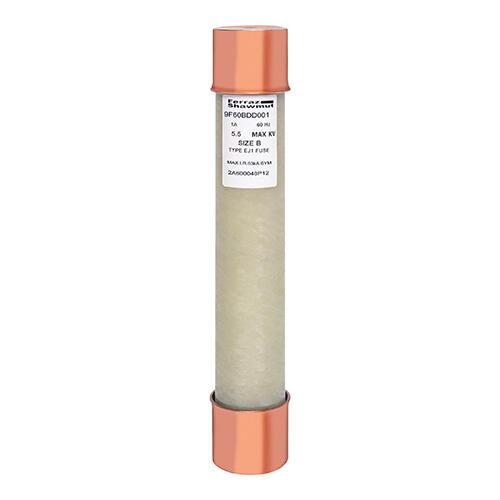

X	9F60BDD001	5500V AC	1A	63 kA	Copper	5500V	Epoxy	39.6 mm	-	€637.56	1

MERSEN FERRAZ -

7.2 kV / 8.25kV Ferrule Mount Transformer Fuses

A

Style	Model	Amps	Ac Voltage	Mounting	Frequency	Ac Max. I R Breaking Capacity I1	Connection/terminal Material	Connection/terminal Type	Rated Voltage Ac Ul	Price
A	A825X10E-1	10A	8250V AC	Clip	50/60 Hz	50 kA	Copper	Ferrule	8250V	€1,709.40
A	A825X15E-1	15A	8250V AC	Clip	50/60 Hz	50 kA	Copper	Ferrule	8250V	€1,709.40
A	A825X20E-1	20A	8250V AC	Clip	50/60 Hz	50 kA	Copper	Ferrule	8250V	€1,887.60
A	A825X25E-1	25A	8250V AC	Clip	50/60 Hz	50 kA	Copper	Ferrule	8250V	€1,887.60
A	A825X30E-1	30A	8250V AC	Clip	50/60 Hz	50 kA	Copper	Ferrule	8250V	€2,224.20
A	A825X40E-1	40A	8250V AC	Clip	50/60 Hz	50 kA	Copper	Ferrule	8250V	€2,224.20
A	A825X50E-1	50A	8250V AC	Clip	50/60 Hz	50 kA	Copper	Ferrule	8250V	€2,224.20
A	A825X65E-1	65A	8250V AC	Clip	50/60 Hz	50 kA	Copper	Ferrule	8250V	€2,310.00
A	A825X80E-1	80A	8250V AC	Clip	50/60 Hz	50 kA	Copper	Ferrule	8250V	€2,310.00
A	A825X100E-1	100A	8250V AC	Clip	50/60 Hz	50 kA	Copper	Ferrule	8250V	€2,310.00
A	A825X125E-1	125A	8250V AC	Clip	50/60 Hz	50 kA	Copper	Ferrule	8250V	€3,709.20
A	A825X150E-1	150A	8250V AC	Clip	50/60 Hz	50 kA	Copper	Ferrule	8250V	€3,709.20
A	A825X200E-1	200A	8250V AC	Clip	50/60 Hz	50 kA	Copper	Ferrule	8250V	€4,428.60

BUSSMANN -

E-Rated DIN Series Medium Voltage Fuses

A

B

C

Style	Model	Ac Voltage	Amps	Termination Type	Type	Indicator Style	Packaging	Mfr. Series	Price
A	175GXQSJ150ES	17.5 kV AC	150A	Non Standard Cartridge	E-Rated DIN Fuse Link	Striker Pin	Bulk	-	€5,115.60
B	175GDMSJ10ES	17.5 kV AC	10A	Cartridge	E-Rated DIN Fuse Link	Striker Pin	Bulk	E-Rated DIN Series	€850.35

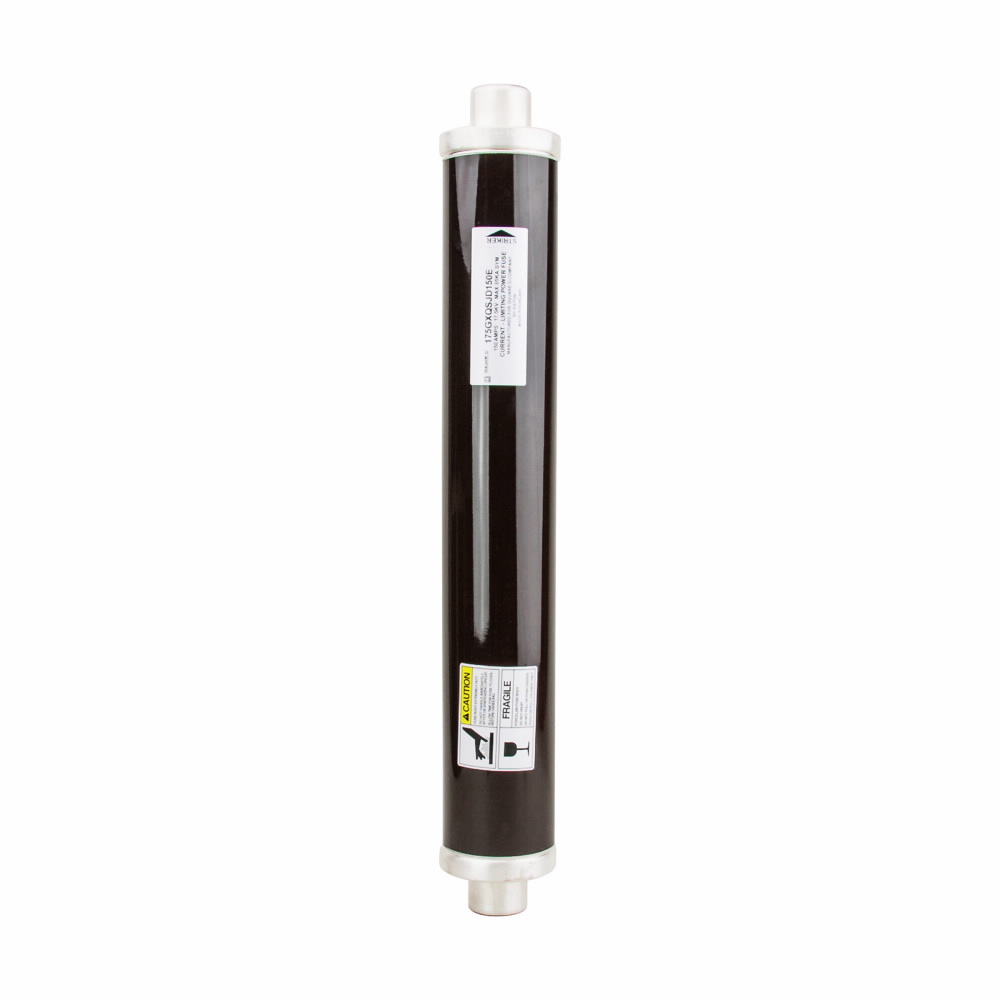

C	258GXQSJ50ES	25.8 kV AC	50A	Non Standard Cartridge	E-Rated DIN Fuse Link	Striker Pin	Bulk	-	€1,610.57	RFQ

BUSSMANN -

THMEJ Series Medium Voltage Fuses

A

B

Style	Model	Ac Voltage	Amps	Termination Type	Indicator Style	Packaging	Mfr. Series	Price
A	17.5THMEJ100	17.5 kV AC	100A	Cartridge	Striker Pin	Bulk	THMEJ Series	€1,258.61
A	17.5THMEJ80	17.5 kV AC	80A	Cartridge	Striker Pin	Bulk	THMEJ Series	€1,047.08
B	24THMEJ63	24 kV AC	63A	Non Standard Cartridge	Striker Pin	Bulk	-	€1,285.06

BUSSMANN -

Fuse 65a Class E-rated

A

Style	Model	Dia.	Fuse Size	Ac Voltage Rating	Interrupt Rating	Amps	Dc Voltage	Speed	Speed Type	Price
A	MV055F1CAX65E	2"	15 3/4" x 2"	5500V AC	50 kA (Sym.) @ 5500V AC	65A	Not Rated	Fast Acting	Fast Acting	€1,386.78
A	MV155F1DCX65E	3"	21 3/4" x 3"	15/500V AC	50 kA (Sym.) @ 15, 500V AC	65A	Not Rated	Fast Acting	Fast Acting	€2,553.84

BUSSMANN -

Fuse 200a Class

A

B

Style	Model	Fuse Size	Ac Voltage Rating	Class	Equivalent Brand And Series	Equivalent Series	Amps	Dc Voltage	Speed	Price
A	JCK-9R	11 1/4" x 3"	2540V AC	R Rated	Bussmann Jck, Mersen A240R	A240R, Jck	200A	Not Rated	Time Delay	€2,456.90
B	JCY-200E	15 7/8" x 3"	5500V AC	E-Rated	Bussmann Jcy Series	JCY	200A	Not Rated	Time Delay	€2,797.45

BUSSMANN -

Fuse 170a Class R-rated

A

B

Style	Model	Fuse Size	Ac Voltage Rating	Equivalent Series	Series	Amps	Dc Voltage	Speed	Speed Type	Price
A	JCH-6R	10 13/16" x 3"	2400V AC	A240R Series, JCH Series	JCH Series	170A	Not Rated	Time Delay	Time Delay	€3,953.87
B	JCR-A-6R	15 27/32" x 3"	8300V AC	JCR Series	JCR Series	170A	Not Rated	Time Delay	Time Delay	€7,119.36

BUSSMANN -

Fuse 130a Class R-rated

A

B

Style	Model	Fuse Size	Ac Voltage Rating	Equivalent Brand And Series	Equivalent Series	Series	Amps	Dc Voltage	Speed	Price
A	JCK-4R	11 15/64" x 3"	2540V AC	Bussmann Jck, Mersen A240R	A240R, Jck	JCK Series	130A	Not Rated	Time Delay	€2,301.86
B	JCR-A-4R	15 27/32" x 3"	8300V AC	Bussmann Jcr Series	JCR Series	JCR Series	130A	Not Rated	Time Delay	€3,602.76

BUSSMANN -

Fuse 100a Class

A

B

C

D

Style	Model	Fuse Size	Speed	Speed Type	Ac Voltage Rating	Class	Element	Series	Amps	Price
A	JCH-3R	10 13/16" x 3"	Time Delay	Time Delay	2400V AC	R Rated	Dual	JCH Series	100A	€2,545.83
B	JCK-3R	11 15/64" x 3"	Time Delay	Time Delay	2540V AC	R Rated	Dual	JCK Series	100A	€2,301.91
C	JDZ-100E	15 7/8" x 3"	Time Delay	Time Delay	8300V AC	E-Rated	Dual	-	100A	€1,856.29
D	MV155F1DCX100E	21 3/4" x 3"	Fast Acting	Fast Acting	15/500V AC	E-Rated	Single	-	100A	€2,347.85

BUSSMANN -

Medium Voltage Fuses: Series JCL

A

B

Style	Model	Fuse Size	Visual Indication	Indicating/nonindicating	Equivalent Brand And Series	Equivalent Series	Series	Amps	Dc Voltage	Price
A	JCL-18R	15 3/4" x 3"	Non Indicating	Non Indicating	Bussmann Jcl, Mersen A480R	A480R, Jcl	JCL Series	390A	Not Rated	€4,769.62
B	JCL-B-18R	19 1/4" x 3 1/3"	Indicating	Indicating	Bussmann Jcl-B Series	JCL B Series	JCL-B Series	390A	Not Rated	€7,813.57

BUSSMANN -

Medium Voltage Fuses: Series CAVH

A

Style	Model	Amps	Fuse Amps	Visual Indication	Dia.	Dc Voltage	Fuse Size	Speed	Speed Type	Price
A	15-5CAVH0-5E	0.5A	1/2A	Indicating	1 5/8"	Not Rated	12 7/8" x 1 5/8"	Time Delay	Time Delay	€1,232.63
A	15-5CAVH1E	1A	1A	Non Indicating	1 5/8"	Not Rated	12 7/8" x 1 5/8"	Time Delay	Time Delay	€1,224.51
A	15-5CAVH2E	2A	2A	Non Indicating	1 5/8"	Not Rated	12 7/8" x 1 5/8"	Time Delay	Time Delay	€1,069.24

MERSEN FERRAZ -

ABAT15C 1500VDC Fuses

A

B

C

D

Style	Model	MPN	Price
A	B1200486	B1200486	€1,837.45	RFQ
B	C1200487	C1200487	€1,885.07	RFQ
A	D1200488	D1200488	€1,885.95	RFQ
A	E1200489	E1200489	€2,036.87	RFQ
C	E1215715	E1215715	€1,949.83
A	F1200490	F1200490	€2,132.05	RFQ
A	G1200491	G1200491	€2,131.91	RFQ
C	G1215717	G1215717	€2,008.48
A	H1200492	H1200492	€2,418.77	RFQ
C	H1215718	H1215718	€2,099.34
A	J1200493	J1200493	€2,418.78	RFQ
C	M1215722	M1215722	€2,190.09
C	N1215723	N1215723	€2,314.66
D	P1209629	P1209629	€2,447.55
C	P1215724	P1215724	€3,036.57
C	W1213223	W1213223	€3,248.12

MERSEN FERRAZ -

7.2kV Ferrule Mount Motor Fuses

A

B

C

D

E

F

G

H

Style	Model	Design Details	Ac Voltage	Mounting	Frequency	Ac Max. I R Breaking Capacity I1	Connection/terminal Material	Connection/terminal Type	Rated Voltage Ac Ul	Price
A	A072F1D0R0-2R	2R	7200V AC	Clip	50/60 Hz	50 kA	Copper	Ferrule	7200V	€1,960.20
B	A072F1D0R0-3R	3R	7200V AC	Clip	50/60 Hz	50 kA	Copper	Ferrule	7200V	€1,960.20
C	A072F1D0R0-4R	4R	7200V AC	Clip	50/60 Hz	50 kA	Copper	Ferrule	7200V	€1,960.20
D	A072F1D0R0-5R	5R	7200V AC	Clip	50/60 Hz	50 kA	Copper	Ferrule	7200V	€3,055.80
E	A072F1D0R0-6R	6R	7200V AC	Clip	50/60 Hz	50 kA	Copper	Ferrule	7200V	€3,564.00
F	A072F1D0R0-9R	9R	7200V AC	Clip	50/60 Hz	50 kA	Copper	Ferrule	7200V	€3,564.00
G	A072F1D0R0-12R	12R	7200V AC	Clip	50/60 Hz	50 kA	Copper	Ferrule	7200V	€3,564.00
H	A072F2D0R0-18R	18R	7200V AC	Clip	50/60 Hz	50 kA	Copper	Ferrule	7200V	€5,913.60
H	A072F2D0R0-24R	24R	7200V AC	Clip	50/60 Hz	50 kA	Copper	Ferrule	7200V	€5,913.60

BUSSMANN -

SFMSJ Series Medium Voltage Fuses

A

B

C

D

Style	Model	Ac Voltage	Amps	Termination Type	Type	Indicator Style	Packaging	Mfr. Series	Price
A	25SFMSJ50	25 kV AC	50A	Cartridge	High Voltage Fuse	Striker Pin	Bulk	SFMSJ	€1,187.76
B	25SFMSJ40	25 kV AC	40A	Cartridge	High Voltage Fuse	Striker Pin	Bulk	SFMSJ	€1,131.19
C	27.6SFMSJ31.5	27.6 kV AC	31.5A	Cartridge	High Voltage Fuse	Striker Pin	Bulk	SFMSJ	€1,555.55
A	27.6SFMSJ50	27.6 kV AC	50A	Cartridge	High Voltage Fuse	Striker Pin	Bulk	SFMSJ	€1,187.76
D	27.6SFMSJ40	27.6 kV AC	40A	Non Standard Cartridge	High Voltage Fuse	Striker Pin	Bulk	-	€1,187.76

MERSEN FERRAZ -

7.2kV DIN Mount Motor Fuses

A

B

C

D

E

F

G

H

I

J

Style	Model	Design Details	Ac Voltage	Mounting	Frequency	Ac Max. I R Breaking Capacity I1	Connection/terminal Material	Connection/terminal Type	Rated Voltage Ac Ul	Price
A	A072D1DSR0-2R	2R	7200V AC	Clip	50/60 Hz	100 kA	Brass	Clip	7200V	€1,874.40
B	A072D1DSR0-3R	3R	7200V AC	Clip	50/60 Hz	100 kA	Brass	Clip	7200V	€1,874.40
C	A072D1DSR0-4R	4R	7200V AC	Clip	50/60 Hz	100 kA	Brass	Clip	7200V	€1,874.40
D	A072D1DSR0-5R	5R	7200V AC	Clip	50/60 Hz	100 kA	Brass	Clip	7200V	€2,125.20
E	A072D1DSR0-6R	6R	7200V AC	Clip	50/60 Hz	100 kA	Brass	Clip	7200V	€2,283.60
F	A072D1DSR0-9R	9R	7200V AC	Clip	50/60 Hz	100 kA	Brass	Clip	7200V	€2,283.60
G	A072D1DSR0-12R	12R	7200V AC	Clip	50/60 Hz	100 kA	Brass	Clip	7200V	€2,574.00
H	A072D1DSR0-13R	13R	7200V AC	Clip	50/60 Hz	100 kA	Brass	Clip	7200V	€2,574.00
I	A072D1DSR0-16R	16R	7200V AC	Clip	50/60 Hz	100 kA	Brass	Clip	7200V	€2,574.00
J	A072D1DSR0-19R	19R	7200V AC	Clip	50/60 Hz	100 kA	Brass	Clip	7200V	€2,574.00

MERSEN FERRAZ -

5.5kV DIN Mount Motor Fuses

A

B

C

D

E

F

G

H

I

J

Style	Model	Design Details	Ac Voltage	Mounting	Frequency	Ac Max. I R Breaking Capacity I1	Connection/terminal Material	Connection/terminal Type	Rated Voltage Ac Ul	Price
A	A055D1DSR0-2R	2R	5500V AC	Clip	50/60 Hz	100 kA	Brass	Clip	5500V	€1,405.80
B	A055D1DSR0-3R	3R	5500V AC	Clip	50/60 Hz	100 kA	Brass	Clip	5500V	€1,405.80
C	A055D1DSR0-4R	4R	5500V AC	Clip	50/60 Hz	100 kA	Brass	Clip	5500V	€1,405.80
D	A055D1DSR0-5R	5R	5500V AC	Clip	50/60 Hz	100 kA	Brass	Clip	5500V	€1,788.60
E	A055D1DSR0-6R	6R	5500V AC	Clip	50/60 Hz	100 kA	Brass	Clip	5500V	€1,788.60
F	A055D1DSR0-9R	9R	5500V AC	Clip	50/60 Hz	100 kA	Brass	Clip	5500V	€1,788.60
G	A055D1DSR0-12R	12R	5500V AC	Clip	50/60 Hz	100 kA	Brass	Clip	5500V	€2,046.00
H	A055D1DSR0-13R	13R	5500V AC	Clip	50/60 Hz	100 kA	Brass	Clip	5500V	€2,046.00
I	A055D1DSR0-16R	16R	5500V AC	Clip	50/60 Hz	100 kA	Brass	Clip	5500V	€2,046.00
J	A055D1DSR0-19R	19R	5500V AC	Clip	50/60 Hz	100 kA	Brass	Clip	5500V	€2,046.00

MERSEN FERRAZ -

5kV Ferrule Mount Motor Fuses

A

Style	Model	Dia.	Design Details	Height	Ac Voltage	Mounting	Frequency	Ac Max. I R Breaking Capacity I1	Connection/terminal Material	Price
A	9F60NLD836	4"	-	8.45"	5080V AC	Clip	-	-	-	-	RFQ
A	9F60NLD830	4"	-	8.45"	5080V AC	Clip	-	-	-	-	RFQ
A	9F60LJD502	76.2 mm	2R	76.2 mm	5080V AC	Clip	50/60 Hz	50 kA	Copper	€1,900.80
A	9F60LJD509	76.2 mm	9R	76.2 mm	5080V AC	Clip	50/60 Hz	50 kA	Copper	€3,742.20
A	9F60LJN302	76.2 mm	2R	76.2 mm	5080V AC	Clip	50/60 Hz	50 kA	Copper	€1,900.80
A	9F60LJD503	76.2 mm	3R	76.2 mm	5080V AC	Clip	50/60 Hz	50 kA	Copper	€1,900.80
A	9F60MJN318	76.2 mm	18R	-	5080V AC	Clip	50/60 Hz	50 kA	Copper	€6,527.40
A	9F60LJN306	76.2 mm	6R	76.2 mm	5080V AC	Clip	50/60 Hz	50 kA	Copper	€3,821.40
A	9F60MJN324	76.2 mm	24R	-	5080V AC	Clip	50/60 Hz	50 kA	Copper	€6,527.40
A	9F60LJD512	76.2 mm	12R	76.2 mm	5080V AC	Clip	50/60 Hz	50 kA	Copper	€3,742.20
A	9F60MJD524	76.2 mm	24R	-	5080V AC	Clip	50/60 Hz	50 kA	Copper	€6,177.60
A	9F60LJN304	76.2 mm	4R	76.2 mm	5080V AC	Clip	50/60 Hz	50 kA	Copper	€1,900.80
A	9F60LJD506	76.2 mm	6R	76.2 mm	5080V AC	Clip	50/60 Hz	50 kA	Copper	€3,742.20
A	9F60MJD518	76.2 mm	18R	-	5080V AC	Clip	50/60 Hz	50 kA	Copper	€6,177.60
A	9F60LJN303	76.2 mm	3R	76.2 mm	5080V AC	Clip	50/60 Hz	50 kA	Copper	€1,900.80
A	9F60LJD504	76.2 mm	4R	76.2 mm	5080V AC	Clip	50/60 Hz	50 kA	Copper	€1,900.80
A	9F60LJN309	76.2 mm	9R	76.2 mm	5080V AC	Clip	50/60 Hz	50 kA	Copper	€3,821.40
A	9F60LJN312	76.2 mm	12R	76.2 mm	5080V AC	Clip	50/60 Hz	50 kA	Copper	€3,821.40

EATON -

CX Type Current Limiting Fuses

A

B

Style	Model	Amps	Price
A	8CXI-40C	-	€1,095.77
B	5CXI-25C	-	€1,053.32
A	8CX-15C	-	€574.89
A	8CX-30C	-	€574.89
A	8CX-10C	-	€574.89
B	5CXI-65C	-	€2,235.92
B	5CXI-30C	-	€1,053.32
B	5CXI-40C	-	€1,053.32
B	5CXI-35C	-	€1,053.32
B	5CXI-50C	-	€2,235.92
B	5CXI-60C	-	€2,235.92
B	5CX-50C	-	€574.89
A	8CX-20C	-	€574.89
B	5CX-40C	-	€574.89
B	5CXI-21C	-	€1,053.32
B	5CXI-75C	-	€2,235.92
B	5CX-75C	-	€574.89
B	5CXI-18C	-	€1,053.32
B	5CXI-10C	-	€1,053.32
B	5CXI-20C	-	€1,053.32
B	5CXI-12C	-	€1,053.32
B	5CX-65C	-	€574.89
B	5CX-12C	-	€407.07
A	8CX-18C	-	€574.89
A	8CX-6C	-	€407.07

BUSSMANN -

R Rated Medium Voltage Fuses

A

B

C

D

E

Style	Model	Ac Voltage	Amps	Dia.	Body Style	Fuse Size	Interrupt Rating	Dc Voltage	Class	Price
A	5ACLS-18R	4800V AC	-	3"	Cylindrical	15.9 x 3"	50 kA @ 4.8K V	Not Rated	R Rated	€6,032.93
A	5ACLS-24R	4800V AC	-	3"	Cylindrical	15.9 x 3"	50 kA @ 4.8K V	Not Rated	R Rated	€4,895.99
B	5ACLS-3R	4800V AC	100A	3"	Cylindrical	15.9 x 3"	50 kA @ 4.8K V	Not Rated	R Rated	€2,088.69
B	5ACLS-5R	4800V AC	150A	3"	Cylindrical	15.9 x 3"	50 kA @ 4.8K V	Not Rated	R Rated	€3,182.72
C	5BCLS-24R	4800V AC	450A	3"	Bolt On	15.9 x 3"	50 kA @ 4.8K V	Not Rated	R Rated	€5,121.57
D	5BCLS-4R	4800V AC	130A	3"	Bolt On	15.9 x 3"	50 kA @ 4.8K V	Not Rated	R Rated	€3,174.89
D	5BCLS-6R	4800V AC	170A	3"	Bolt On	15.9 x 3"	50 kA @ 4.8K V	Not Rated	R Rated	€3,869.44
D	5BCLS-9R	4800V AC	200A	3"	Bolt On	15.9 x 3"	50 kA @ 4.8K V	Not Rated	R Rated	€3,978.02
E	5CLS-24R	4800V AC	450A	3"	Cylindrical	-	50 kA @ 4.8K V	Not Rated	R Rated	€4,890.44
E	5BCLS-44R	5000V AC	-	4"	Bolt On	19.2" x 4"	-	Not Rated	R Rated	€8,457.08
E	5CLS70-44R	5080V AC	700A	4"	Cylindrical	16" x 4"	50 kA (Sym.) at 5.08k V	Not Rated	R Rated	€10,204.62
E	5CLS70-36R	5080V AC	650A	4"	Cylindrical	15.85" x 4"	50 kA (Sym.) at 5.08k V	Not Rated	R Rated	€8,186.84
B	5ACLS-12R	5500V AC	-	3"	Cylindrical	15.9 x 3"	50 kA (Sym.) at 5.5k V	Not Rated	R Rated	€3,256.00

BUSSMANN -

JCX Series Medium Voltage Fuses

A

B

C

D

E

Style	Model	Amps	Termination Type	Interrupt Rating	Ac Voltage	Indicator Style	Packaging	Type	Mfr. Series	Price
A	JCX-1E	1A	Non Standard Cartridge	60 kA	2.4 kV AC	Open Fuse	Bulk	E-Rated Fuse For Transformer	-	€718.11
A	JCX-2E	2A	Cartridge	60 kA	2.4 kV AC	Open Fuse	Bulk	E-Rated Fuse For Transformer	JCX Series	€718.11
B	JCX-3E	3A	Cartridge	60 kA	2.4 kV AC	Open Fuse	Bulk	-	JCX Series	€718.11
A	JCX-5E	5A	Cartridge	60 kA	2.4 kV AC	Open Fuse	Bulk	E-Rated Fuse For Transformer	-	€718.11
B	JCX-7E	7A	Cartridge	60 kA	2.4 kV AC	Open Fuse	Bulk	E-Rated Fuse For Transformer	JCX Series	€718.11
C	JCX-10E	10A	Cartridge	60 kA	2.4 kV AC	Open Fuse	Bulk	E-Rated Fuse For Transformer	JCX Series	€1,686.79
D	JCX-15E	15A	Cartridge	80 kA	2.4 kV AC	Open Fuse	Bulk	E-Rated Fuse For Transformer	JCX Series	€822.33
C	JCX-20E	20A	Non Standard Cartridge	80 kA	2.4 kV AC	Open Fuse	Bulk	E-Rated Fuse For Transformer	-	€822.33
C	JCX-25E	25A	Cartridge	80 kA	2.4 kV AC	Open Fuse	Bulk	E-Rated Fuse For Transformer	JCX Series	€822.33
D	JCX-30E	30A	Cartridge	80 kA	2.4 kV AC	Open Fuse	Bulk	E-Rated Fuse For Transformer	JCX Series	€1,473.71
C	JCX-40E	40A	Cartridge	80 kA	2.4 kV AC	Open Fuse	Bulk	E-Rated Fuse For Transformer	-	€1,473.71
D	JCX-50E	50A	Cartridge	80 kA	2.4 kV AC	Open Fuse	Bulk	E-Rated Fuse For Transformer	JCX Series	€1,487.24
C	JCX-65E	65A	Cartridge	80 kA	2.4 kV AC	Open Fuse	Bulk	E-Rated Fuse For Transformer	JCX Series	€1,473.71
D	JCX-80E	80A	Cartridge	80 kA	2.4 kV AC	Open Fuse	Bulk	E-Rated Fuse For Transformer	-	€1,473.71
D	JCX-100E	100A	Cartridge	80 kA	2.4 kV AC	Open Fuse	Bulk	E-Rated Fuse For Transformer	JCX Series	€1,473.71
D	JCX-150E	150A	Cartridge	80 kA	2.4 kV AC	Open Fuse	Bulk	E-Rated Fuse For Transformer	JCX Series	€3,151.45
D	JCX-200E	200A	Cartridge	80 kA	2.4 kV AC	Open Fuse	Bulk	E-Rated Fuse For Transformer	JCX Series	€3,151.45
E	JCX-300E/325X	300A	Non Standard Cartridge	-	2.4 kV AC	Open Fuse	Bulk	E-Rated Fuse For Transformer	-	€5,237.58
C	JCX-350X	350A	Cartridge	80 kA	2.4 kV AC	Open Fuse	Bulk	E-Rated Fuse For Transformer	JCX Series	€5,156.18

BUSSMANN -

Medium Voltage Fuses: Series ABWNA

A

Style	Model	Amps	Fuse Amps	Class	Element	Dia.	Speed Type	Body Style	Indicating/nonindicating	Price
A	5-5ABWNA3E	-	3A	PT Fuse	Dual	1"	Time Delay	Cylindrical	Non Indicating	€530.73
A	5-5ABWNA2E	-	2A	PT Fuse	Dual	1"	Time Delay	Cylindrical	Non Indicating	€588.29
A	5-5ABWNA0-5E	0.5A	1/2A	E Rated	Single	1"	Time Delay	Cylindrical	Non Indicating	€726.11
A	5-5ABWNA1E	1A	1A	E Rated	Single	1"	Time Delay	Cylindrical	Non Indicating	€591.32
A	5-5ABWNA5E	5A	5A	E Rated	Single	1"	Time Delay	Cylindrical	Non Indicating	€616.38

Strictly Necessary Cookies

Advertising

Recommendations

Functionality

Analytics

Categories

Brands

Medium Voltage Fuses

0.625kV to 15.5kV PT Fuses

7.2 kV / 8.25kV Ferrule Mount Transformer Fuses

E-Rated DIN Series Medium Voltage Fuses

THMEJ Series Medium Voltage Fuses

Fuse 65a Class E-rated

Fuse 200a Class

Fuse 170a Class R-rated

Fuse 130a Class R-rated

Fuse 100a Class

Medium Voltage Fuses: Series JCL

Medium Voltage Fuses: Series CAVH

ABAT15C 1500VDC Fuses

7.2kV Ferrule Mount Motor Fuses

SFMSJ Series Medium Voltage Fuses

7.2kV DIN Mount Motor Fuses

5.5kV DIN Mount Motor Fuses

5kV Ferrule Mount Motor Fuses

CX Type Current Limiting Fuses

R Rated Medium Voltage Fuses

JCX Series Medium Voltage Fuses

Medium Voltage Fuses: Series ABWNA

Popular Search Queries

Explore More

Select your cookie preferences

Strictly Necessary Cookies

Advertising

Recommendations

Functionality

Analytics

Categories

Brands

Medium Voltage Fuses

Popular Search Queries

Explore More
