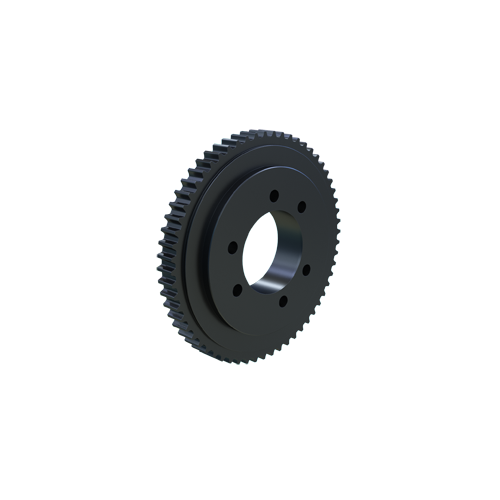

MARTIN SPROCKET W6014M20-E Sprocket, E Bushing, 8.750 Inch Max Bore, 60 Teeth, 10.527 Inch Pitch Dia., Cast Iron
10.527"
Get it by Monday, Apr 6
€746.17 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Sprocket |
| Bore Diameter | 7/8" to 3 1/2" |
| Bore Type | QD Bushed |
| Bushing Type | E |
| Face Width | 1.22" |
| Flange Dia. | 11.06" |
| Length | 2 5/8" |
| Material | Cast Iron |
| No. Of Grooves | 60 |
| No. Of Teeth | 60 |
| O.d. | 10.42" |
| Pitch | 0.55118" |
| Pitch Dia. | 10.527" |
| Suitable For Use With | Hawk PD, Panter, QT Power Chain Belts |
| Type | Solid Type CF-1 |
Shipping Info:
| Ship weight (kg) | 10.63 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | Bore Type | Face Width | Pitch | Type | Bushing Type | Flange Dia. | Hub Projection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
W3014M20-SK | - | High hp Bushed | 1.22" | 14 mm | Solid Type DF-1 | SK | 6.13" | - | €353.58 | |
 |
W3014M42-SK | - | QD Bushed | 2.087" | 14 mm | Solid Type DF-1 | SK | 6.13" | - | €444.29 | |
|
W4014M42-SF | - | QD Bushed | 2.087" | 0.55118" | Solid Type DF-1 | SF | - | - | €643.85 | |
 |
W4814M42-E | - | High hp Bushed | 2.087" | 14 mm | Solid Type DF-1 | E | 8.937" | - | €676.44 | |
|
W6014M42-E | 10.527" | QD Bushed | 2.087" | 0.55118" | Solid Type DF-1 | E | 11.06" | - | €932.72 | |
|
W4414M42-E | 7 18/25" | QD Bushed | 2.087" | 0.55118" | Solid Type DF-1 | E | 8.22" | - | €652.91 | |
 |
W6014M65-F | 10.527" | QD Bushed | 3.032" | 0.55118" | Solid Type CF-1 | F | 11.06" | - | €1,189.28 |
