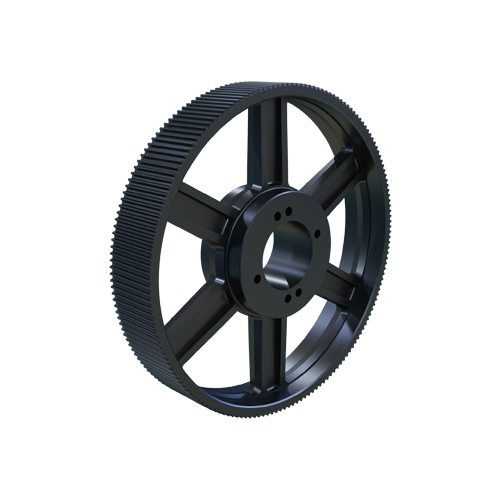

MARTIN SPROCKET W16814M120-M Sprocket, M Bushing, 5.5 Inch Max Bore, 168 Teeth, 29.475 Inch Pitch Dia., Cast Iron
29.475"
Get it by Tuesday, Mar 3
€4,379.42 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Sprocket |
| Bore Diameter | 1 15/16" to 5 1/2" |
| Bore Type | Bushed |
| Bushing Type | M |
| Face Width | 5.236" |
| Length | 6 3/4" |
| Material | Cast Iron |
| No. Of Grooves | 168 |
| No. Of Teeth | 168 |
| O.d. | 29.358" |
| Pitch | 0.55118" |
| Pitch Dia. | 29.475" |
| Suitable For Use With | Hawk PD, Panter, QT Power Chain Belts |
| Type | Arms Type C-3 |
Shipping Info:
| Ship weight (kg) | 110.62 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | Bore Type | Face Width | Pitch | Type | Bushing Type | Flange Dia. | Hub Projection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
W3814M42-SF | 6.667" | QD Bushed | 2.087" | 0.55118" | Solid Type DF-1 | SF | 7.16" | - | €625.78 | |
 |
W3614M65-3030 | 6.316" | Tapper Lock Bushed | 3.032" | 0.55118" | Solid Type MPBF-1 | 3030 | 6.81" | 0.032" | €795.22 | |
 |
W3814M65-3030 | 6.667" | Tapper Lock Bushed | 3.032" | 0.55118" | Solid Type MPBF-1 | 3030 | 7.16" | 0.032" | €753.91 | |
 |
W4014M65-3535 | - | Tapper Lock Bushed | 3.032" | 0.55118" | Solid Type CF-1 | 3535 | - | - | €784.91 | |
 |
W4014M90-3535 | - | Tapper Lock Bushed | 4.055" | 0.55118" | Solid Type KF-1 | 3535 | - | - | €932.14 | |
|
W4414M90-3535 | 7 18/25" | Tapper Lock Bushed | 4.055" | 0.55118" | Solid Type KF-1 | 3535 | 8.22" | - | €939.60 | |
 |
W4814M120-4040 | - | Bushed | 5.236" | 0.55118" | Solid Type KF-1 | 4040 | 8.937" | - | €1,430.34 |
