MARTIN SPROCKET E40B30 Sprocket, Stock Bore, 40 Chain, 30 Teeth, 4.783 Inch Pitch Dia., 5.057 Inch O.D., Steel
Item: AJ9CDQModel: E40B30
7 In Stock
5.057"
Ships within 2 days via
€223.94 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 7/8" to 2 1/4" |
| Bore Type | Finished Bore |
| Chain Number | 40 |
| Chain Pitch | 1/2" |
| Chain Size | #40 |
| Construction | Solid |
| Construction Type | Solid |
| Finished Bore Size | 7/8" |
| For Chain Number | 40 |
| For Chain Pitch | 1/2" |
| Hub Configuration | B |
| Hub Dia. | 3 1/4" |
| Hub Outside Dia. | 3 1/4" |
| Individually Packaged | No |
| Length Through Bore | 2 1/4" |
| Length Thru Bore | 2 1/4" |
| Material | Steel |
| Max. Bore Size | 2 1/4" |
| Min. Bore Size | 7/8" |
| No. Of Chain Rows | 3 |
| No. Of Teeth | 30 |
| Outside Dia. | 5.057" |
| Pitch | 1/2" |
| Pitch Dia. | 4.783" , 4.7834" |
| Single Strand Tooth Thickness | 0.275" |
| Storage Dimension Height | 2 1/4" |
| Storage Dimension Length | 5.057" |
| Storage Dimension Width | 5.057" |
| Type | Type B Triple Strand Solid Reboreable |
Shipping Info:
| Ship weight (kg) | 3.77 |
| Ship height (cm) | 5.72 |
| Ship length (cm) | 12.85 |
| Ship width (cm) | 12.85 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Pitch Dia. | Outside Dia. | Hub Dia. | Length Through Bore | For Chain Number | For Chain Pitch | Bore Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

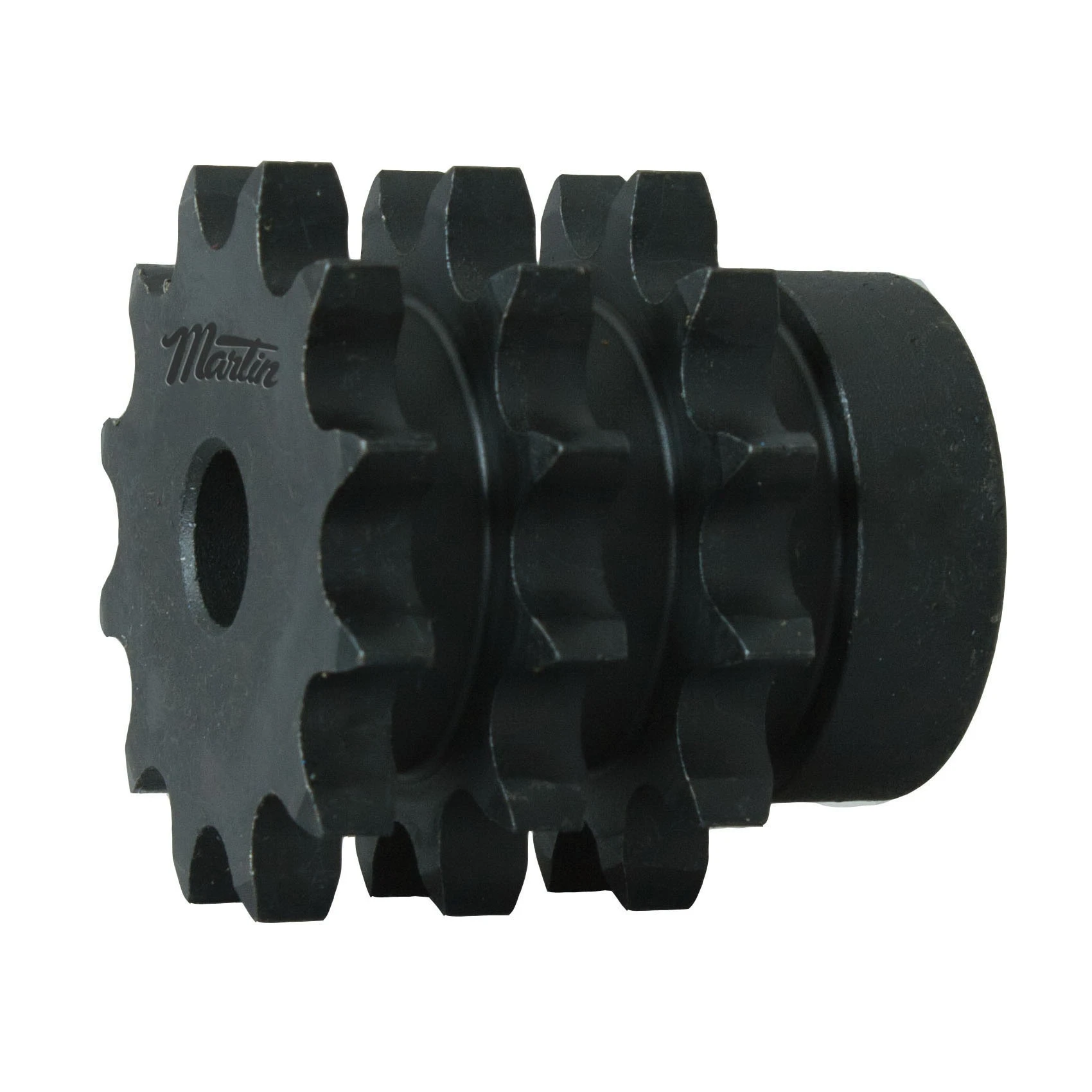

E40B11H | 1/2" to 3/4" | 1.775" | 2.003" | 1.438" | 2 1/8" | 40 | 1/2" | Finished Bore | €132.83 | |
|
E40B12H | 1/2" to 15/16" | 1.932" | 2.166" | 1.563" | 2 1/8" | 40 | 1/2" | Finished Bore | €134.62 | |
 |
E40B13H | 1/2" to 1" | 2.089" | 2.329" | 1 1/2" | 2 1/8" | 40 | 1/2" | Finished Bore | €135.15 | |
 |
E40B14H | 1/2" to 1 1/8" | 2.247" | 2.491" | 1.688" | 2 1/8" | 40 | 1/2" | Finished Bore | €135.15 | |
 |
E40B15H | 1/2" to 1 1/4" | 2.405" | 2.652" | 1.813" | 2 1/8" | 40 | 1/2" | Finished Bore | €136.17 | |
 |
E40B16H | 5/8" to 1 3/8" | 2.563" | 2.814" | 2" | 2 1/8" | 40 | 1/2" | Finished Bore | €139.77 | |
|
E40B17H | 5/8" to 1 7/16" | 2.721" | 2.975" | 2 1/8" | 2 1/8" | 40 | 1/2" | Finished Bore | €146.45 |
