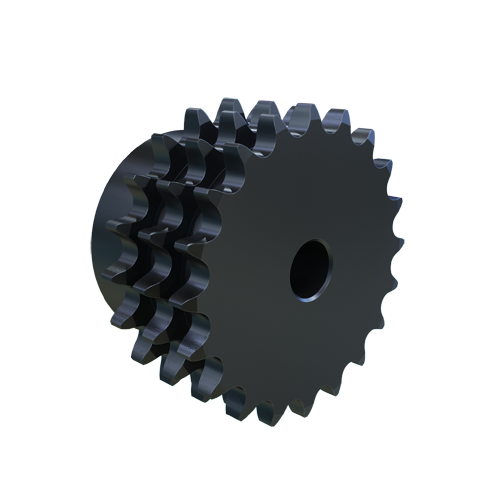

MARTIN SPROCKET E40B20H Sprocket, Stock Bore, 40 Chain, 20 Teeth, 3.196 Inch Pitch Dia., 3.457 Inch O.D., Steel
Item: AJ9CDHModel: E40B20H
7 In Stock
3.457"
Ships within 2 days via
€172.44 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 5/8" to 1 7/8" |
| Bore Type | Finished Bore |
| Chain Number | 40 |
| Chain Pitch | 1/2" |
| Chain Size | 40 |
| Construction | Solid |
| Construction Type | Solid |
| Finished Bore Size | 5/8" |
| For Chain Number | 40 |
| For Chain Pitch | 1/2" |
| Hardened Teeth | 1 |
| Hub Configuration | B |
| Hub Dia. | 2 5/8" |
| Hub Outside Dia. | 2 5/8" |
| Individually Packaged | No |
| Length Through Bore | 2 1/4" |
| Length Thru Bore | 2 1/4" |
| Material | Steel |
| Max. Bore Size | 1 7/8" |
| Min. Bore Size | 5/8" |
| No. Of Chain Rows | 3 |
| No. Of Teeth | 20 |
| Outside Dia. | 3.457" |
| Pitch | 1/2" |
| Pitch Dia. | 3.196" , 3.1962" |
| Single Strand Tooth Thickness | 0.275" |
| Storage Dimension Height | 2 1/4" |
| Storage Dimension Length | 3.457" |
| Storage Dimension Width | 3.457" |
| Type | Solid Stock Bore Type B Triple Strand |
Shipping Info:
| Ship weight (kg) | 1.68 |
| Ship height (cm) | 5.72 |
| Ship length (cm) | 8.79 |
| Ship width (cm) | 8.79 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Hub Dia. | Bore Dia. | Chain Size | Storage Dimension Length | Storage Dimension Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
E40B11H | 1.775" | 11 | 2 1/8" | 1.438" | 1/2" to 3/4" | #40 | 2 5/16" | 2 5/16" | €132.83 | |
|
E40B12H | 1.932" | 12 | 2 1/8" | 1.563" | 1/2" to 15/16" | #40 | 2 5/8" | 2 5/8" | €134.62 | |
 |
E40B13H | 2.089" | 13 | 2 1/8" | 1 1/2" | 1/2" to 1" | #40 | 2 5/8" | 2 5/8" | €135.15 | |
 |
E40B14H | 2.247" | 14 | 2 1/8" | 1.688" | 1/2" to 1 1/8" | #40 | 2 5/8" | 2 5/8" | €135.15 | |
 |
E40B15H | 2.405" | 15 | 2 1/8" | 1.813" | 1/2" to 1 1/4" | #40 | 2.8438" | 2.8438" | €136.17 | |
 |
E40B16H | 2.563" | 16 | 2 1/8" | 2" | 5/8" to 1 3/8" | #40 | 2.814" | 2.814" | €139.77 | |
|
E40B17H | 2.721" | 17 | 2 1/8" | 2 1/8" | 5/8" to 1 7/16" | #40 | 2.975" | 2.975" | €146.45 |
