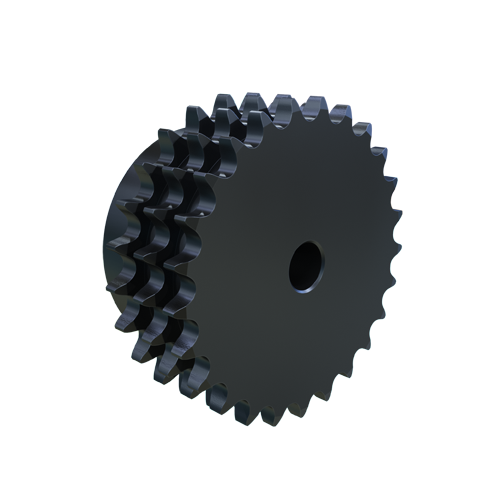

MARTIN SPROCKET E40B25H Sprocket, Stock Bore, 40 Chain, 25 Teeth, 3.989 Inch Pitch Dia., 4.258 Inch O.D., Steel
Item: AJ9CDNModel: E40B25H
7 In Stock
4.258"
Ships within 2 days via
€216.99 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 40 |
| Chain Pitch | 1/2" |
| Construction | Solid |
| Construction Type | Solid |
| Finished Bore Size | 5/8" |
| For Chain Number | 40 |
| For Chain Pitch | 1/2" |
| Hardened Teeth | 1 |
| Hub Configuration | B |
| Hub Diameter | 3 1/4" |
| Hub Outside Dia. | 3 1/4" |
| Individually Packaged | No |
| Length Through Bore | 2 1/4" |
| Length Thru Bore | 2 1/4" |
| Material | Steel |
| Max. Bore Size | 2 1/4" |
| Min. Bore Size | 5/8" |
| Number Of Chain Rows | 3 |
| Number Of Teeth | 25 |
| Outside Dia. | 4.258" |
| Pitch | 1/2" |
| Pitch Dia. | 3.9894" |
| Pitch Diameter | 3.989" |
| Single Strand Tooth Thickness | 0.275" |
| Storage Dimension Height | 2 1/4" |
| Storage Dimension Length | 4.258" |
| Storage Dimension Width | 4.258" |
Shipping Info:
| Ship weight (kg) | 2.72 |
| Ship height (cm) | 5.72 |
| Ship length (cm) | 10.82 |
| Ship width (cm) | 10.82 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Length Through Bore | For Chain Number | For Chain Pitch | Bore Type | Pitch | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
E40B11H | 11 | 1.7747" | 2.003" | 2 1/8" | 40 | 1/2" | Finished Bore | 1/2" | €132.83 | |
|
E40B12H | 12 | 1.9319" | 2.166" | 2 1/8" | 40 | 1/2" | Finished Bore | 1/2" | €134.62 | |
 |
E40B13H | 13 | 2.0893" | 2.329" | 2 1/8" | 40 | 1/2" | Finished Bore | 1/2" | €135.15 | |
 |
E40B14H | 14 | 2.247" | 2.491" | 2 1/8" | 40 | 1/2" | Finished Bore | 1/2" | €135.15 | |
 |
E40B15H | 15 | 2.4049" | 2.652" | 2 1/8" | 40 | 1/2" | Finished Bore | 1/2" | €136.17 | |
 |
E40B16H | 16 | 2.5629" | 2.814" | 2 1/8" | 40 | 1/2" | Finished Bore | 1/2" | €139.77 | |
|
E40B17H | 17 | 2.7211" | 2.975" | 2 1/8" | 40 | 1/2" | Finished Bore | 1/2" | €146.45 |
