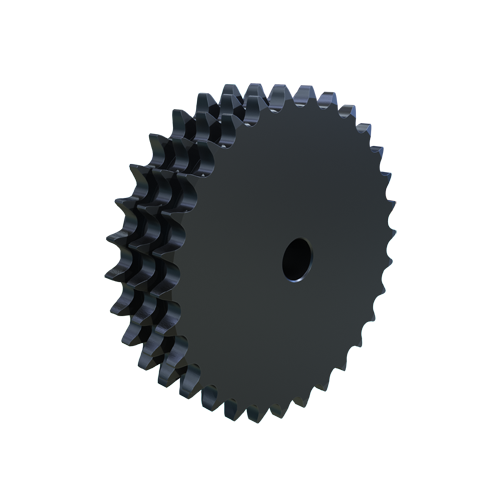

MARTIN SPROCKET E10B30 Sprocket, 10B-3 Chain, 30 Teeth, 151.873 mm Pitch Dia., 161.556 mm O.D., Steel
161.556 mm
Get it by Friday, Aug 21
€443.11 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 20 mm to 84 mm |
| Chain Size | #10B-3 |
| Hub Dia. | 119.99 mm |
| Length Through Bore | 59.995 mm |
| Material | High Carbon Steel |
| No. Of Teeth | 30 |
| Outside Dia. | 161.556 mm |
| Pitch | 15.875 mm |
| Pitch Dia. | 151.873 mm |
| Type | Type B Solid Stock Bore Triple Strand |
Shipping Info:
| Ship weight (kg) | 6.35 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 16.15 |
| Ship width (cm) | 16.15 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Hub Dia. | Bore Dia. | Material | Pitch | Chain Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
E10B35 | 177.099 mm | 35 | 59.995 mm | 119.99 mm | 20 mm to 84 mm | High Carbon Steel | 15.875 mm | #10B-3 | €596.22 | |
 |
E10B24 | 121.623 mm | 24 | 59.995 mm | 100 mm | 20 mm to 68 mm | High Carbon Steel | 15.875 mm | #10B-3 | €418.18 | |
 |
E10B18 | 91.42 mm | 18 | 59.995 mm | 73.99 mm | 16 mm to 52 mm | High Carbon Steel | 15.875 mm | #10B-3 | €348.88 | |
 |
E10B45 | 227.577 mm | 45 | 75.006 mm | 119.126 mm | 30 mm to 83 mm | High Carbon Steel | 15.875 mm | #10B-3 | €745.67 | |
 |
E10B21 | 106.513 mm | 21 | 59.995 mm | 84.988 mm | 20 mm to 60 mm | High Carbon Steel | 15.875 mm | #10B-3 | €391.05 | |
 |
E10B29 | 146.829 mm | 29 | 59.995 mm | 115.011 mm | 20 mm to 80 mm | High Carbon Steel | 15.875 mm | #10B-3 | €431.85 | |
 |
E10B28 | 141.786 mm | 28 | 59.995 mm | 115.011 mm | 20 mm to 81 mm | High Carbon Steel | 15.875 mm | #10B-3 | €416.36 |
