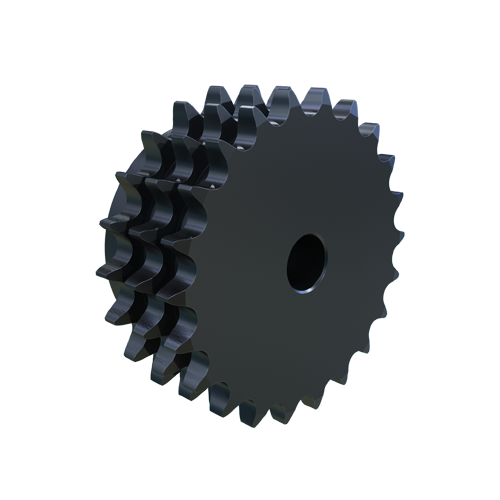

MARTIN SPROCKET E10B22 Sprocket, 10B-3 Chain, 22 Teeth, 111.548 mm Pitch Dia., 121.232 mm O.D., Steel
Item: BA3KLVModel: E10B22
7 In Stock
121.232 mm
Ships within 2 days via
€393.21 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 20 mm to 63 mm |
| Chain Size | #10B-3 |
| Hub Dia. | 89.992 mm |
| Length Through Bore | 59.995 mm |
| Material | High Carbon Steel |
| No. Of Teeth | 22 |
| Outside Dia. | 121.232 mm |
| Pitch | 15.875 mm |
| Pitch Dia. | 111.548 mm |
| Type | Type B Solid Stock Bore Triple Strand |
Shipping Info:
| Ship weight (kg) | 3.36 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 12.12 |
| Ship width (cm) | 12.12 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Pitch Dia. | Outside Dia. | Hub Dia. | Length Through Bore | Pitch | Price | |
|---|---|---|---|---|---|---|---|---|---|
 |
E10B35 | 20 mm to 84 mm | 177.099 mm | 186.782 mm | 119.99 mm | 59.995 mm | 15.875 mm | €596.22 | |
 |
E10B24 | 20 mm to 68 mm | 121.623 mm | 131.307 mm | 100 mm | 59.995 mm | 15.875 mm | €418.18 | |
 |
E10B18 | 16 mm to 52 mm | 91.42 mm | 101.104 mm | 73.99 mm | 59.995 mm | 15.875 mm | €348.88 | |
 |
E10B45 | 30 mm to 83 mm | 227.577 mm | 237.261 mm | 119.126 mm | 75.006 mm | 15.875 mm | €745.67 | |
 |
E10B21 | 20 mm to 60 mm | 106.513 mm | 116.197 mm | 84.988 mm | 59.995 mm | 15.875 mm | €391.05 | |
 |
E10B29 | 20 mm to 80 mm | 146.829 mm | 156.513 mm | 115.011 mm | 59.995 mm | 15.875 mm | €431.85 | |
 |
E10B28 | 20 mm to 81 mm | 141.786 mm | 151.47 mm | 115.011 mm | 59.995 mm | 15.875 mm | €416.36 |
