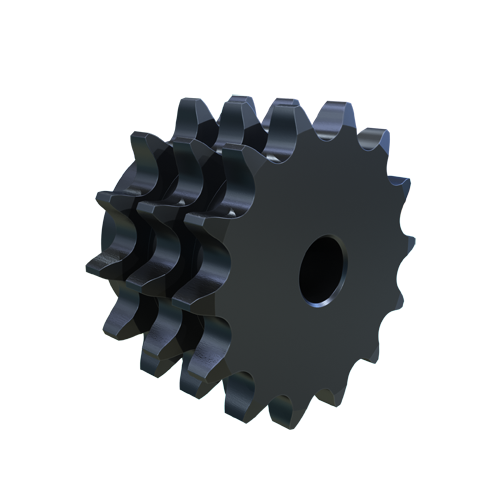

MARTIN SPROCKET E10B14 Sprocket, 10B-3 Chain, 14 Teeth, 71.342 mm Pitch Dia., 81.025 mm O.D., Steel
Item: BA3UXCModel: E10B14
7 In Stock
81.025 mm
Ships within 2 days via
€304.54 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 16 mm to 37 mm |
| Chain Size | #10B-3 |
| Hub Dia. | 53.01 mm |
| Length Through Bore | 54.991 mm |
| Material | High Carbon Steel |
| No. Of Teeth | 14 |
| Outside Dia. | 81.025 mm |
| Pitch | 15.875 mm |
| Pitch Dia. | 71.342 mm |
| Product Datasheet | martin-sprocket-06a15.pdf |
| Type | Type B Solid Stock Bore Triple Strand |
Shipping Info:
| Ship weight (kg) | 1.22 |
| Ship height (cm) | 5.51 |
| Ship length (cm) | 8.1 |
| Ship width (cm) | 8.1 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Hub Dia. | Bore Dia. | Material | Pitch | Chain Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
E10B35 | 177.099 mm | 35 | 59.995 mm | 119.99 mm | 20 mm to 84 mm | High Carbon Steel | 15.875 mm | #10B-3 | €596.22 | |
 |
E10B24 | 121.623 mm | 24 | 59.995 mm | 100 mm | 20 mm to 68 mm | High Carbon Steel | 15.875 mm | #10B-3 | €418.18 | |
 |
E10B18 | 91.42 mm | 18 | 59.995 mm | 73.99 mm | 16 mm to 52 mm | High Carbon Steel | 15.875 mm | #10B-3 | €348.88 | |
 |
E10B45 | 227.577 mm | 45 | 75.006 mm | 119.126 mm | 30 mm to 83 mm | High Carbon Steel | 15.875 mm | #10B-3 | €745.67 | |
 |
E10B21 | 106.513 mm | 21 | 59.995 mm | 84.988 mm | 20 mm to 60 mm | High Carbon Steel | 15.875 mm | #10B-3 | €391.05 | |
 |
E10B29 | 146.829 mm | 29 | 59.995 mm | 115.011 mm | 20 mm to 80 mm | High Carbon Steel | 15.875 mm | #10B-3 | €431.85 | |
 |
E10B28 | 141.786 mm | 28 | 59.995 mm | 115.011 mm | 20 mm to 81 mm | High Carbon Steel | 15.875 mm | #10B-3 | €416.36 |
