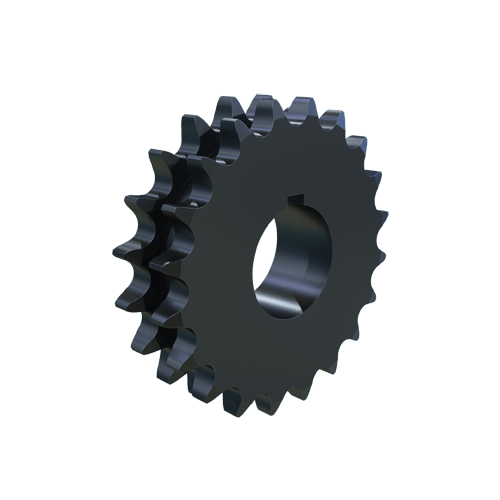

MARTIN SPROCKET D60P20H Sprocket, MST, 60 Chain, 20 Teeth, 4.794 Inch Pitch Dia., 5.185 Inch O.D., Steel
Item: AL4RYYModel: D60P20H
7 In Stock
5.185"
Ships within 2 days via
€309.64 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 1/2" to 1 3/4" |
| Bore Type | Bushed |
| Bushing Part Number | P1 |
| Bushing Size | P1 |
| Bushing Type | Type P1 Split Taper |
| Chain Number | 60 |
| Chain Pitch | 3/4" |
| Chain Size | 60 |
| Construction | Solid |
| Construction Type | Solid |
| For Chain Number | 60 |
| For Chain Pitch | 3/4" |
| Hardened Teeth | 1 |
| Hub Configuration | A |
| Hub Dia. | 3" |
| Individually Packaged | No |
| Key Way Size | 3/8" |
| Keyway Width | 3/8" , 3/8" W |
| Length Through Bore | 1 15/16" |
| Length Thru Bore | 1.3355" |
| Material | Steel |
| Max. Bore Size | 1 3/4" |
| Min. Bore Size | 1/2" |
| No. Of Chain Rows | 2 |
| No. Of Teeth | 20 |
| Outside Dia. | 5.185" |
| Pitch | 3/4" |
| Pitch Dia. | 4.794" , 4.7943" |
| Single Strand Tooth Thickness | 0.444" |
| Storage Dimension Height | 1.34" |
| Storage Dimension Length | 5.185" |
| Storage Dimension Width | 5.185" |
| Type | MST P1 Bushed Solid Type 13 |
Shipping Info:
| Ship weight (kg) | 2.09 |
| Ship height (cm) | 4.93 |
| Ship length (cm) | 13.18 |
| Ship width (cm) | 13.18 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Hub Dia. | Bore Dia. | Chain Size | Storage Dimension Length | Storage Dimension Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
D60R42 | 10.0361" | 42 | 2" | 5 1/2" | 1 1/8" to 3 3/4" | #60 | 10.458" | 10.458" | €640.13 | |
 |
D60R45 | 10.7517" | 45 | 2" | 5 1/2" | 1 1/8" to 3 3/4" | #60 | 11.175" | 11.175" | €684.78 | |
|
D60R48 | 11.4673" | 48 | 2" | 5 1/2" | 1 1/8" to 3 3/4" | #60 | 11.893" | 11.893" | €757.69 | |
 |
D60R54 | 12.8988" | 54 | 2" | 5 1/2" | 1 1/8" to 3 3/4" | #60 | 13.327" | 13.327" | €838.23 | |
 |
D60R60 | 14.331" | 60 | 2 7/8" | 5 1/2" | 1 1/8" to 3 3/4" | 60 | 14.761" | 14.761" | €897.54 | |
 |
D60R72 | 17.1942" | 72 | 2" | 5 1/2" | 1 1/8" to 3 3/4" | #60 | 17.628" | 17.628" | €1,071.11 | |
 |
D60R84 | 20.0582" | 84 | 2" | 5 1/2" | 1 1/8" to 3 3/4" | #60 | 20.494" | 20.494" | €1,310.77 |
