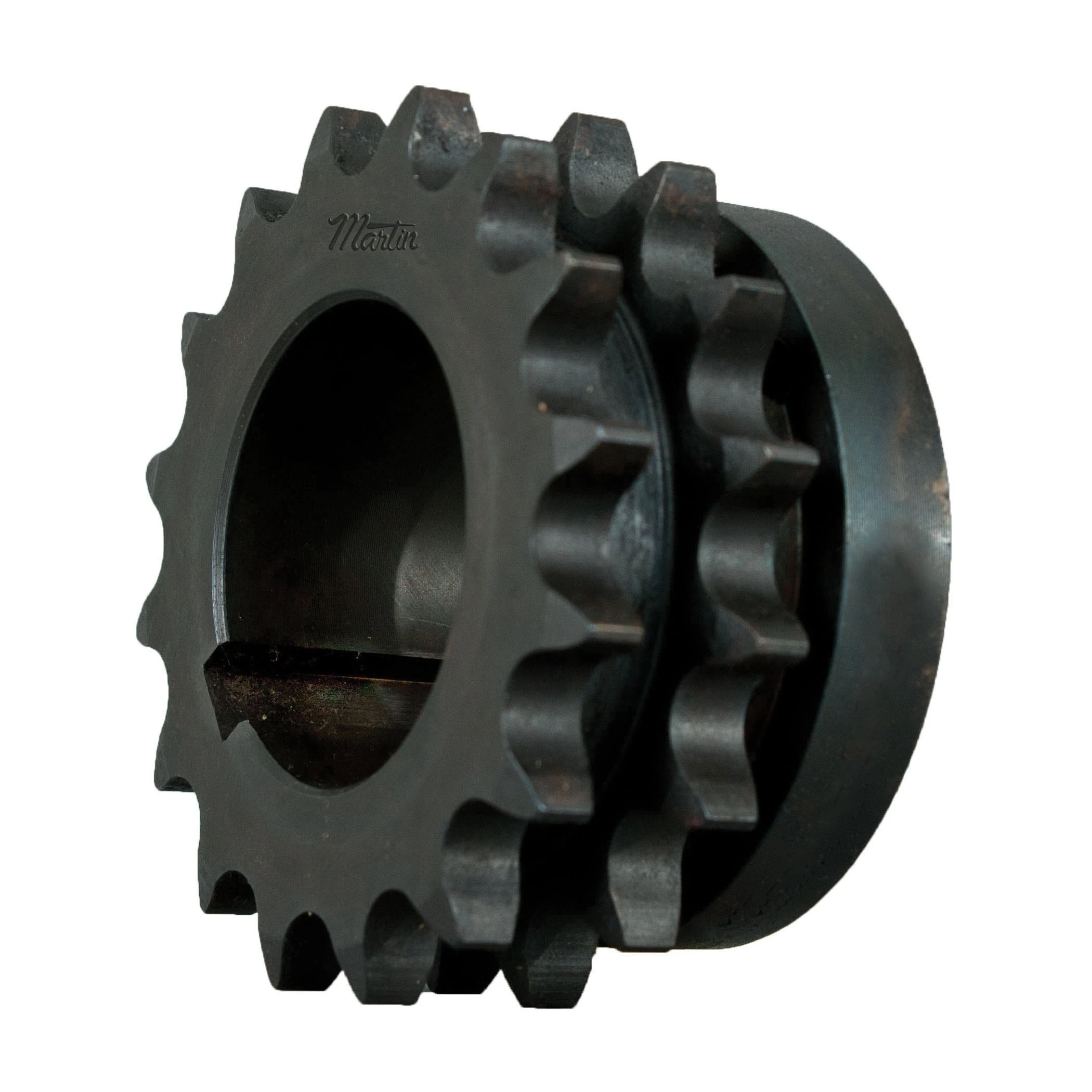

MARTIN SPROCKET D60P14H Sprocket, MST, 60 Chain, 14 Teeth, 3.371 Inch Pitch Dia., 3.736 Inch O.D., Steel
Item: AL4RYTModel: D60P14H
7 In Stock
3.736"
Ships within 2 days via
€244.50 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Type | Bushed |
| Bushing Part Number | P1 |
| Bushing Size | P1 |
| Chain Number | 60 |
| Chain Pitch | 3/4" |
| Construction | Solid With Recess Groove |
| Construction Type | Solid With Recess Groove |
| For Chain Number | 60 |
| For Chain Pitch | 3/4" |
| Hardened Teeth | 1 |
| Hub Configuration | B |
| Hub Diameter | 3" |
| Hub Outside Dia. | 3" |
| Hub Recessed For Chain | 1 |
| Individually Packaged | No |
| Keyway Size | 3/8" |
| Keyway Width | 3/8" |
| Length Through Bore | 2 1/8" |
| Length Thru Bore | 1 5/16" |
| Material | Steel |
| Max. Bore Size | 1 3/4" |
| Min. Bore Size | 1/2" |
| No. Of Teeth | 14 |
| Number Of Chain Rows | 2 |
| Number Of Teeth | 14 |
| Outside Dia. | 3.736" |
| Pitch | 3/4" |
| Pitch Dia. | 3.3705" |
| Product Datasheet | martin-sprocket-100a10.pdf |
| Single Strand Tooth Thickness | 0.444" |
| Storage Dimension Height | 2.13" |
| Storage Dimension Length | 3.736" |
| Storage Dimension Width | 3.736" |
Shipping Info:
| Ship weight (kg) | 1.04 |
| Ship height (cm) | 5.41 |
| Ship length (cm) | 9.5 |
| Ship width (cm) | 9.5 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Length Through Bore | Bushing Type | For Chain Number | For Chain Pitch | Bore Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

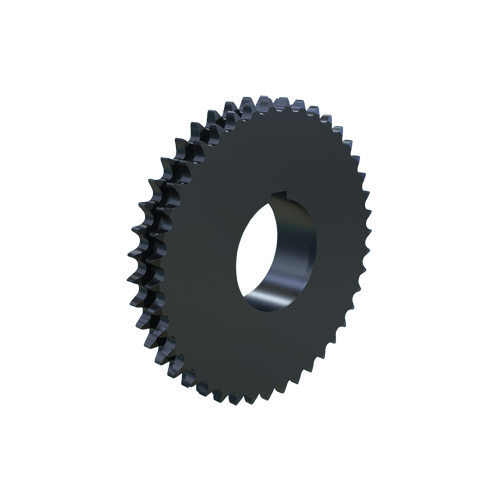

D60R42 | 42 | 10.0361" | 10.458" | 2" | MST R1 | 60 | 3/4" | Bushed | €640.13 | |
 |

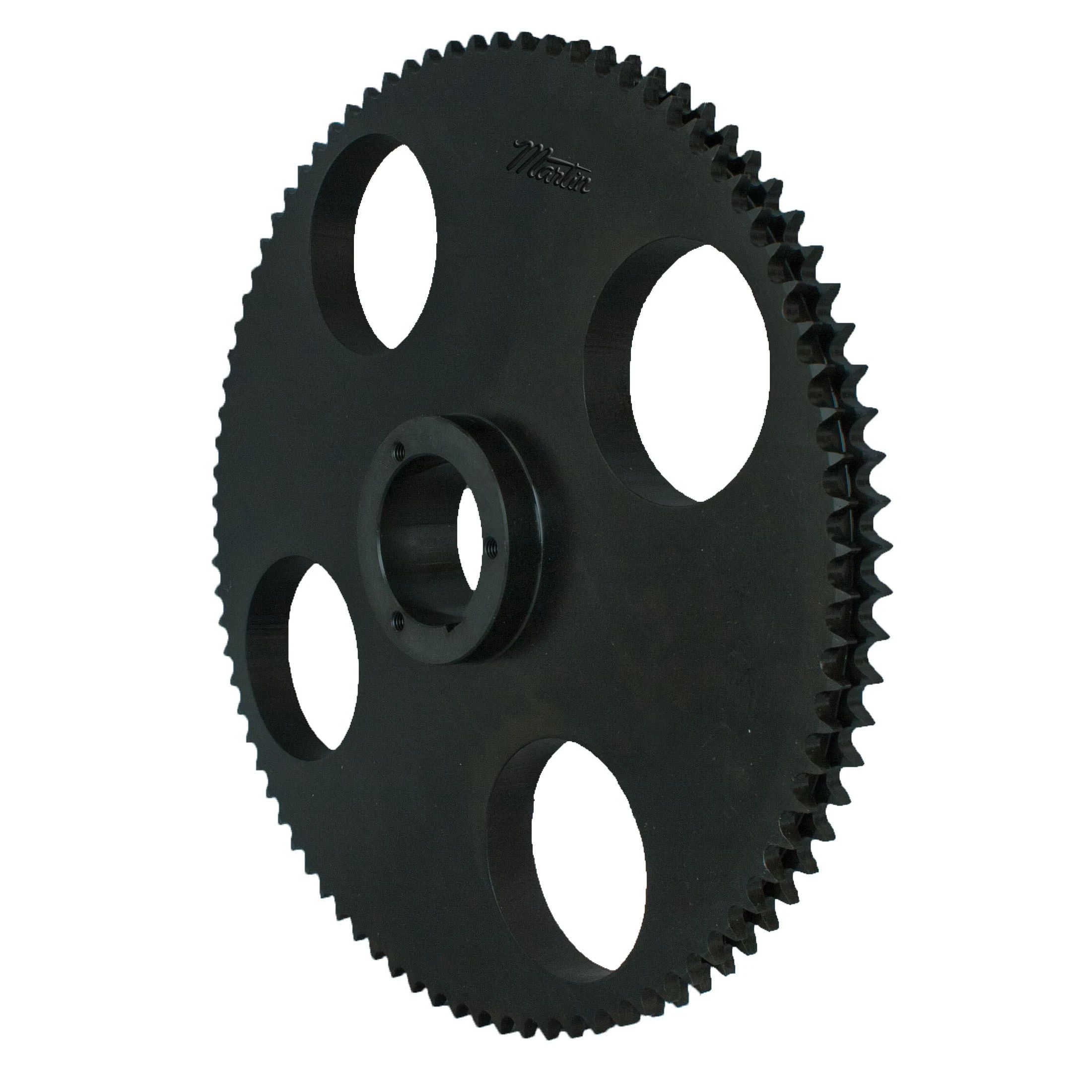

D60R45 | 45 | 10.7517" | 11.175" | 2" | MST R1 | 60 | 3/4" | Bushed | €684.78 | |
|
D60R48 | 48 | 11.4673" | 11.893" | 2" | MST R1 | 60 | 3/4" | Bushed | €757.69 | |
 |

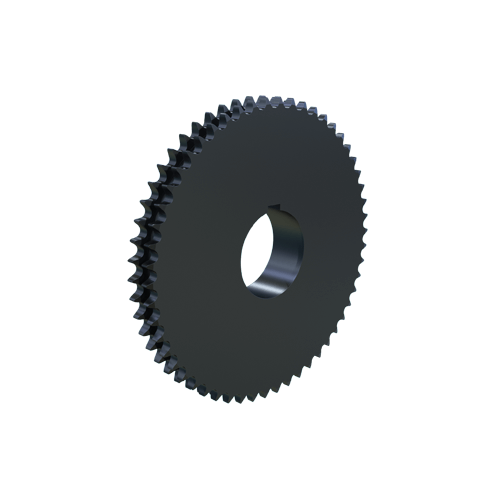

D60R54 | 54 | 12.8988" | 13.327" | 2" | MST R1 | 60 | 3/4" | Bushed | €838.23 | |
 |

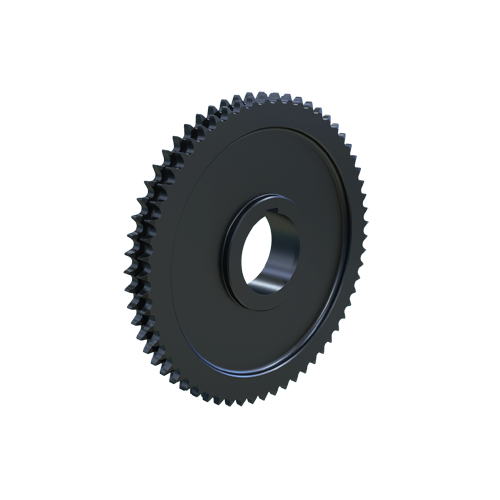

D60R60 | 60 | 14.3305" | 14.761" | 2 7/8" | Type R1 Split Taper | 60 | 3/4" | Bushed | €897.54 | |
 |

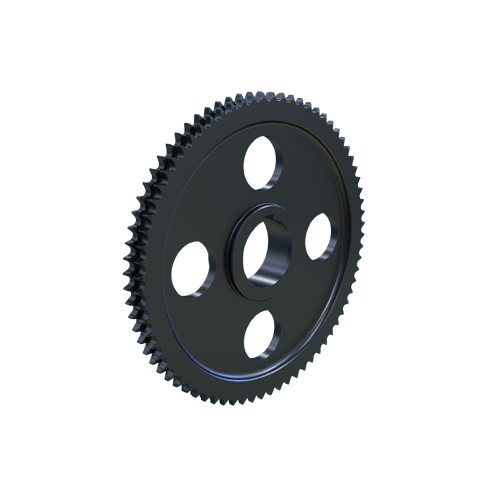

D60R72 | 72 | 17.1942" | 17.628" | 2" | MST R1 | 60 | 3/4" | Bushed | €1,071.11 | |
 |
D60R84 | 84 | 20.0582" | 20.494" | 2" | MST R1 | 60 | 3/4" | Bushed | €1,310.77 |
