MARTIN SPROCKET D60CTB60 Sprocket, Taper, 60 Chain, 60 Teeth, 14.331 Inch Pitch Dia., 14.761 Inch O.D., Steel
Get it by Wednesday, Jul 1
€729.42 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 1/2" to 2 1/2" |
| Bore Type | Bushed |
| Bushing Part Number | 2517 |
| Bushing Type | TB 2517 |
| Chain Number | 60 |
| Chain Pitch | 3/4" |
| Chain Size | #60 |
| Construction | Solid |
| Construction Type | Solid |
| For Chain Number | 60 |
| For Chain Pitch | 3/4" |
| Hub Configuration | C |
| Hub Dia. | 4 1/4" |
| Hub Outside Dia. | 4 1/4" |
| Individually Packaged | No |
| Length Through Bore | 1 3/4" |
| Length Thru Bore | 1 3/4" |
| Material | Steel |
| Max. Bore Size | 2 1/2" |
| Min. Bore Size | 1/2" |
| No. Of Chain Rows | 2 |
| No. Of Teeth | 60 |
| Outside Dia. | 14.761" |
| Pitch | 3/4" |
| Pitch Dia. | 14.3305" , 14.331" |
| Product Datasheet | martin-sprocket-100a10.pdf |
| Single Strand Tooth Thickness | 0.444" |
| Storage Dimension Height | 1 3/4" |
| Storage Dimension Length | 14.761" |
| Storage Dimension Width | 14.761" |
| Type | Type C Double Strand Solid Bushed |
Shipping Info:
| Ship weight (kg) | 15.07 |
| Ship height (cm) | 4.45 |
| Ship length (cm) | 37.49 |
| Ship width (cm) | 37.49 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Pitch Dia. | Outside Dia. | Bore Dia. | Length Through Bore | Bushing Type | Hub Dia. | For Chain Number | For Chain Pitch | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

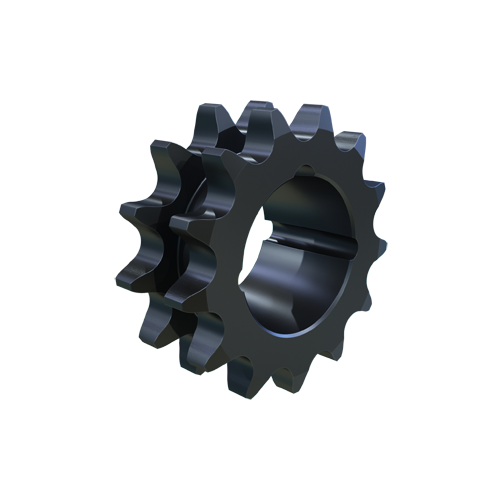

D60BTB13H | 3.134" | 3.493" | - | 1 1/2" | 1215 Taper Lock | 2.245" | 60 | 3/4" | €174.95 | |
 |

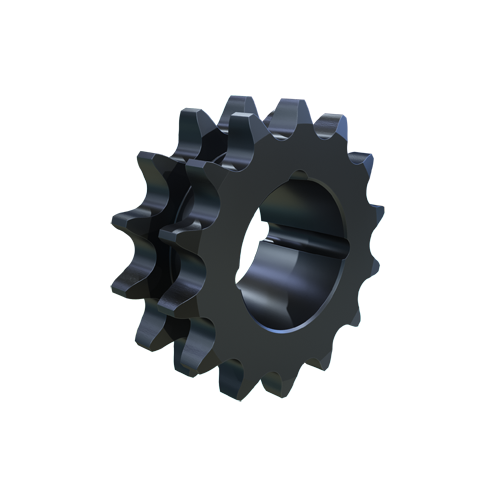

D60BTB14H | 3.371" | 3.736" | - | 1 1/2" | 1215 Taper Lock | 2 1/2" | 60 | 3/4" | €179.56 | |
 |

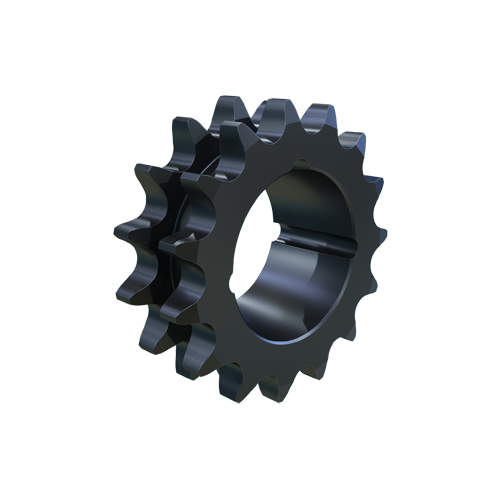

D60BTB15H | 3.607" | 3.978" | - | 1 1/2" | 1615 Taper Lock | 2.748" | 60 | 3/4" | €184.19 | |
 |

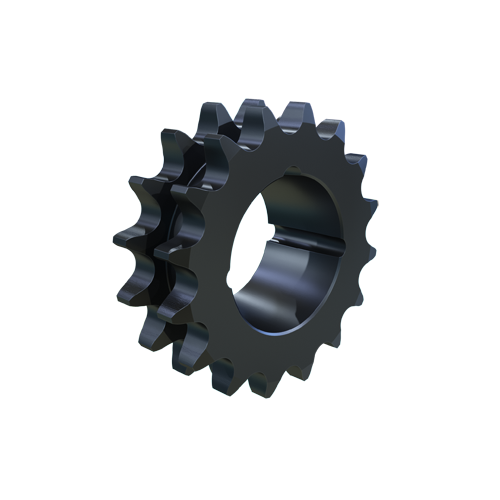

D60BTB16H | 3.844" | 4.221" | - | 1 1/2" | 1615 Taper Lock | 2.99" | 60 | 3/4" | €192.48 | |
 |

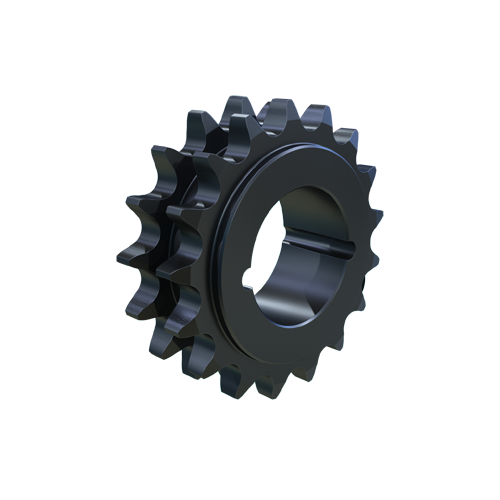

D60BTB17H | 4.082" | 4.462" | - | 1 1/2" | 1615 Taper Lock | 3.232" | 60 | 3/4" | €196.83 | |
 |

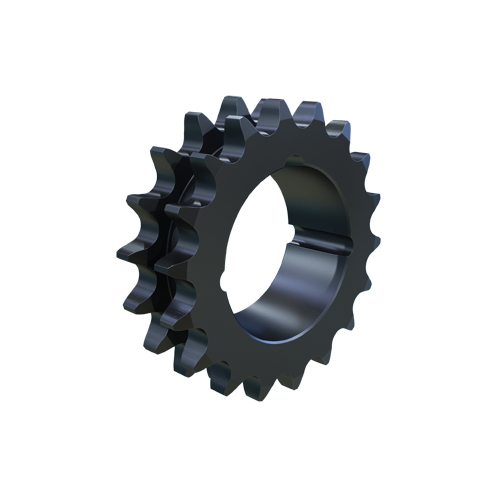

D60ATB18H | 4.319" | 4.703" | - | 1 1/4" | 2012 Taper Lock | - | 60 | 3/4" | €200.99 | |
 |

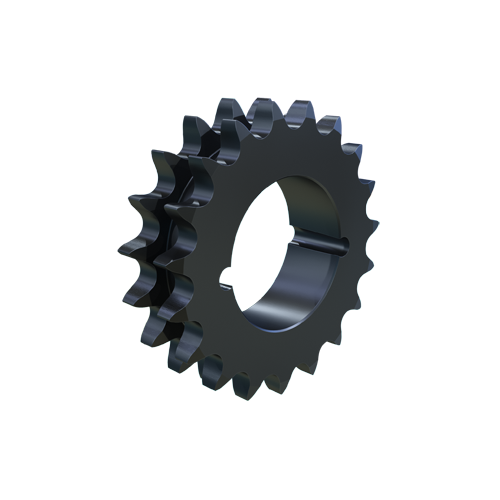

D60ATB19H | 4.557" | 4.945" | - | 1 1/4" | 2012 Taper Lock | - | 60 | 3/4" | €202.93 |
