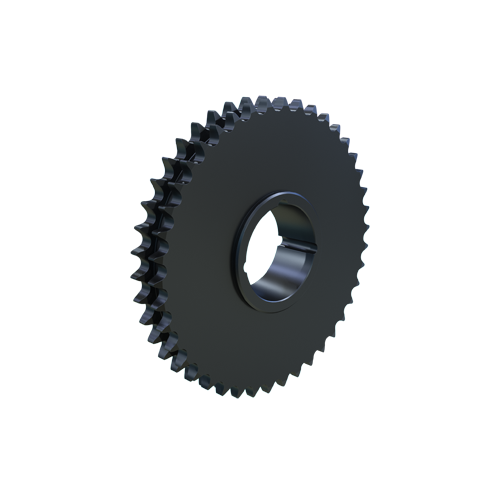

MARTIN SPROCKET D60CTB36 Sprocket, Taper, 60 Chain, 36 Teeth, 8.605 Inch Pitch Dia., 9.023 Inch O.D., Steel
Get it by Thursday, Dec 18
€360.19 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Type | Bushed |
| Bushing Part Number | 2517 |
| Chain Number | 60 |
| Chain Pitch | 3/4" |
| Construction | Solid |
| Construction Type | Solid |
| For Chain Number | 60 |
| For Chain Pitch | 3/4" |
| Hub Configuration | C |
| Hub Diameter | 4 1/4" |
| Hub Outside Dia. | 4 1/4" |
| Individually Packaged | No |
| Length Through Bore | 1 3/4" |
| Length Thru Bore | 1 3/4" |
| Material | Steel |
| Max. Bore Size | 2 1/2" |
| Min. Bore Size | 1/2" |
| No. Of Teeth | 36 |
| Number Of Chain Rows | 2 |
| Number Of Teeth | 36 |
| Outside Dia. | 9.023" |
| Pitch | 3/4" |
| Pitch Dia. | 8.6053" |
| Pitch Diameter | 8.605" |
| Single Strand Tooth Thickness | 0.444" |
| Storage Dimension Height | 1 3/4" |
| Storage Dimension Length | 9.023" |
| Storage Dimension Width | 9.023" |
Shipping Info:
| Ship weight (kg) | 7.74 |
| Ship height (cm) | 4.45 |
| Ship length (cm) | 22.91 |
| Ship width (cm) | 22.91 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Length Through Bore | Bushing Type | For Chain Number | For Chain Pitch | Bore Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
D60BTB13H | 13 | 3.1339" | 3.493" | 1 1/2" | 1215 Taper Lock | 60 | 3/4" | Bushed | €174.95 | |
 |
D60BTB14H | 14 | 3.3705" | 3.736" | 1 1/2" | 1215 Taper Lock | 60 | 3/4" | Bushed | €179.56 | |
 |
D60BTB15H | 15 | 3.6073" | 3.978" | 1 1/2" | 1615 Taper Lock | 60 | 3/4" | Bushed | €184.19 | |
 |
D60BTB16H | 16 | 3.8444" | 4.221" | 1 1/2" | 1615 Taper Lock | 60 | 3/4" | Bushed | €192.48 | |
 |
D60BTB17H | 17 | 4.0816" | 4.462" | 1 1/2" | 1615 Taper Lock | 60 | 3/4" | Bushed | €196.83 | |
 |
D60ATB18H | 18 | 4.3191" | 4.703" | 1 1/4" | 2012 Taper Lock | 60 | 3/4" | Bushed | €200.99 | |
 |
D60ATB19H | 19 | 4.5567" | 4.945" | 1 1/4" | 2012 Taper Lock | 60 | 3/4" | Bushed | €202.93 |
