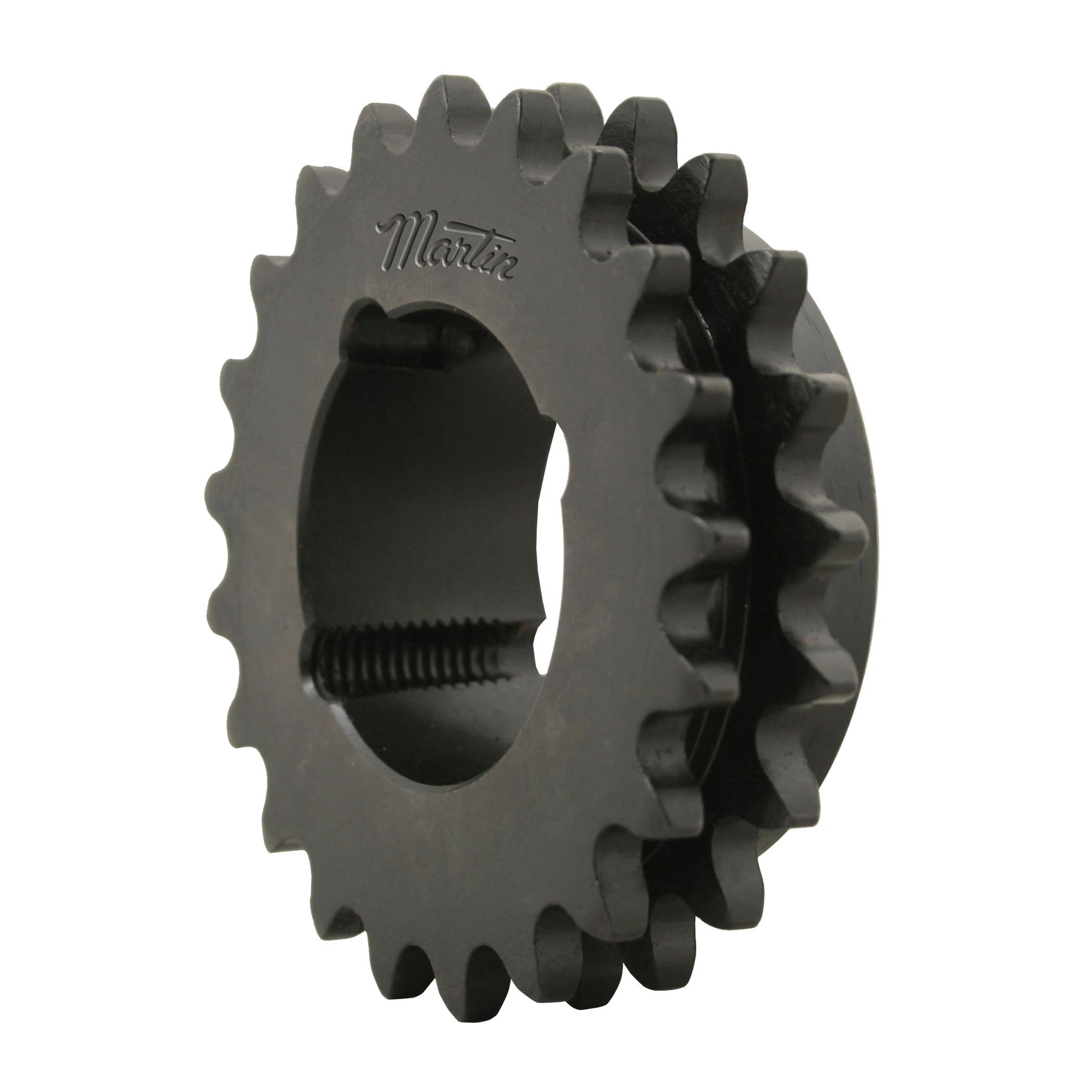

MARTIN SPROCKET D40CTB52 Sprocket, Taper, 40 Chain, 52 Teeth, 8.281 Inch Pitch Dia., 8.566 Inch O.D., Steel
Get it by Wednesday, Dec 17
€265.08 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Type | Bushed |
| Bushing Part Number | 2517 |
| Chain Number | 40 |
| Chain Pitch | 1/2" |
| Construction | Solid |
| Construction Type | Solid |
| For Chain Number | 40 |
| For Chain Pitch | 1/2" |
| Hub Configuration | C |
| Hub Diameter | 4 1/4" |
| Hub Outside Dia. | 4 1/4" |
| Individually Packaged | No |
| Length Through Bore | 1 3/4" |
| Length Thru Bore | 1 3/4" |
| Material | Steel |
| Max. Bore Size | 2 1/2" |
| Min. Bore Size | 1/2" |
| No. Of Teeth | 52 |
| Number Of Chain Rows | 2 |
| Number Of Teeth | 52 |
| Outside Dia. | 8.566" |
| Pitch | 1/2" |
| Pitch Dia. | 8.2811" |
| Product Datasheet | martin-sprocket-100a10.pdf |
| Single Strand Tooth Thickness | 0.275" |
| Storage Dimension Height | 1 3/4" |
| Storage Dimension Length | 8.566" |
| Storage Dimension Width | 8.566" |
Shipping Info:
| Ship weight (kg) | 5.04 |
| Ship height (cm) | 4.45 |
| Ship length (cm) | 21.77 |
| Ship width (cm) | 21.77 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Length Through Bore | Bushing Type | For Chain Number | For Chain Pitch | Bore Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
D40BTB18H | 18 | 2.8794" | 3.136" | 1" | 1210 Taper Lock | 40 | 1/2" | Bushed | €129.69 | |
 |
D40BTB19H | 19 | 3.0378" | 3.296" | 1" | 1210 Taper Lock | 40 | 1/2" | Bushed | €133.82 | |
 |
D40BTB20H | 20 | 3.1962" | 3.457" | 1" | 1610 Taper Lock | 40 | 1/2" | Bushed | €139.42 | |
 |
D40BTB21H | 21 | 3.3548" | 3.617" | 1" | 1610 Taper Lock | 40 | 1/2" | Bushed | €143.07 | |
 |

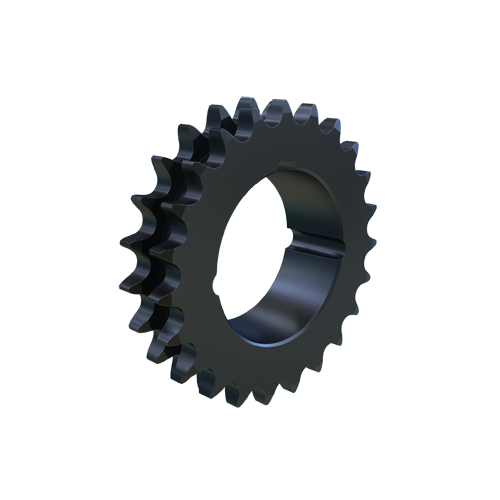

D40BTB23H | 23 | 3.672" | 3.938" | 1" | 1610 Taper Lock | 40 | 1/2" | Bushed | €169.11 | |
 |
D40BTB25H | 25 | 3.9894" | 4.258" | 1 1/4" | 2012 Taper Lock | 40 | 1/2" | Bushed | €171.77 | |
 |
D40BTB30 | 30 | 4.7834" | 5.057" | 1 1/4" | 2012 Taper Lock | 40 | 1/2" | Bushed | €179.56 |
