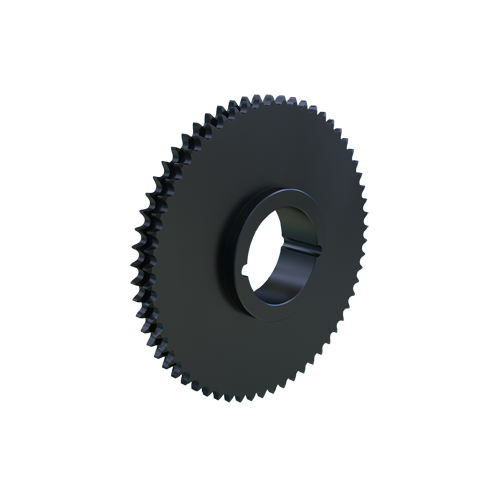

MARTIN SPROCKET D40CTB60 Sprocket, Taper, 40 Chain, 60 Teeth, 9.554 Inch Pitch Dia., 9.841 Inch O.D., Steel
Get it by Friday, Jul 3
€279.47 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Type | Bushed |
| Bushing Part Number | 2517 |
| Bushing Type | 2517 Taper Lock |
| Chain Number | 40 |
| Chain Pitch | 1/2" |
| Chain Size | 40-2 |
| Construction | Solid |
| Construction Type | Solid |
| For Chain Number | 40 |
| For Chain Pitch | 1/2" |
| Hub Configuration | C |
| Hub Dia. | 4 1/4" |
| Hub Outside Dia. | 4 1/4" |
| Individually Packaged | No |
| Length Through Bore | 1 3/4" |
| Length Thru Bore | 1 3/4" |
| Material | Steel |
| Max. Bore Size | 2 1/2" |
| Min. Bore Size | 1/2" |
| No. Of Chain Rows | 2 |
| No. Of Teeth | 60 |
| Outside Dia. | 9.841" |
| Pitch | 1/2" |
| Pitch Dia. | 9.5537" , 9.554" |
| Single Strand Tooth Thickness | 0.275" |
| Storage Dimension Height | 1 3/4" |
| Storage Dimension Length | 9.841" |
| Storage Dimension Width | 9.841" |
| Type | Double Strand TB Bushed Solid Type C |
Shipping Info:
| Ship weight (kg) | 6.93 |
| Ship height (cm) | 4.45 |
| Ship length (cm) | 24.99 |
| Ship width (cm) | 24.99 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | Outside Dia. | Hub Dia. | Length Through Bore | Bushing Type | For Chain Number | For Chain Pitch | Bore Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

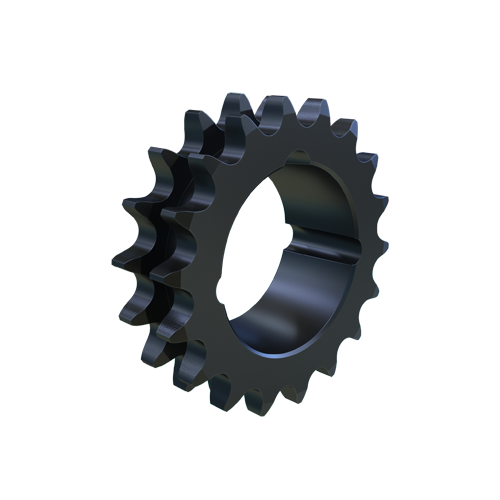

D40BTB18H | 2.879" | 3.136" | 2.313" | 1" | 1210 Taper Lock | 40 | 1/2" | - | €129.69 | |
 |

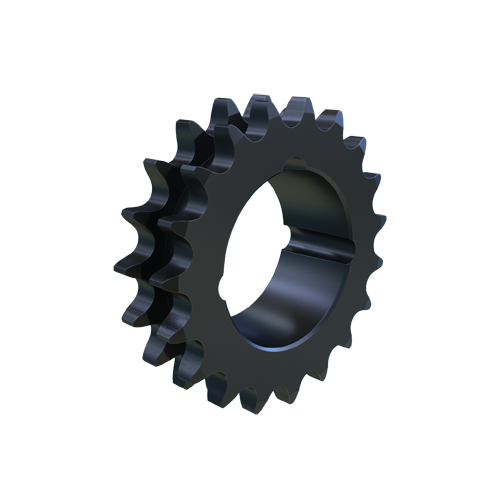

D40BTB19H | 3.038" | 3.296" | 2 1/2" | 1" | 1210 Taper Lock | 40 | 1/2" | - | €133.82 | |
 |

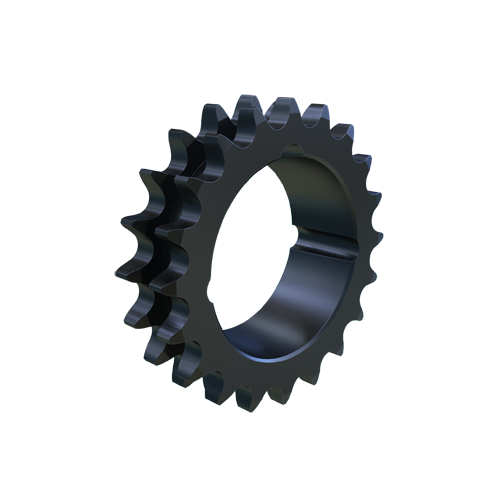

D40BTB20H | 3.196" | 3.457" | 2 5/8" | 1" | 1610 Taper Lock | 40 | 1/2" | - | €139.42 | |
 |

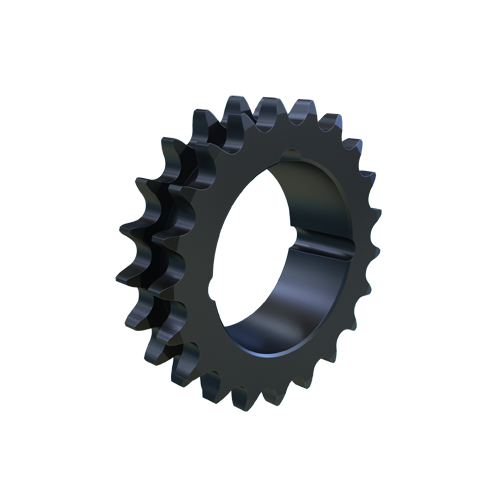

D40BTB21H | 3.355" | 3.617" | 2 3/4" | 1" | 1610 Taper Lock | 40 | 1/2" | - | €143.07 | |
 |
D40BTB23H | 3.672" | 3.938" | 3" | 1" | 1610 Taper Lock | 40 | 1/2" | - | €169.11 | |
 |

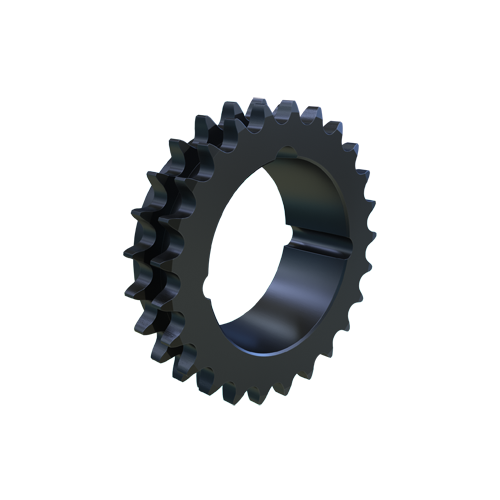

D40BTB25H | 3.989" | 4.258" | 3.406" | 1 1/4" | 2012 Taper Lock | 40 | 1/2" | - | €171.77 | |
 |

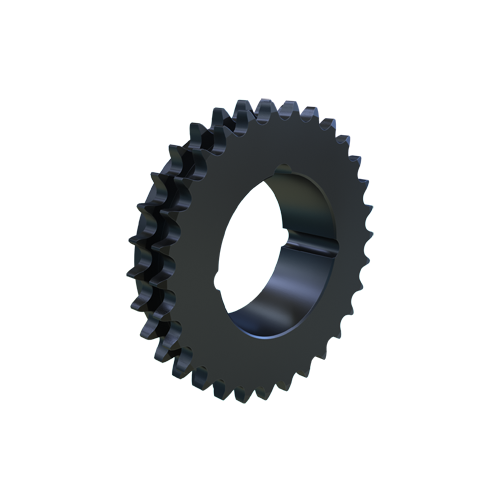

D40BTB30 | 4.783" | 5.057" | 4.234" | 1 1/4" | 2012 Taper Lock | 40 | 1/2" | - | €179.56 |
