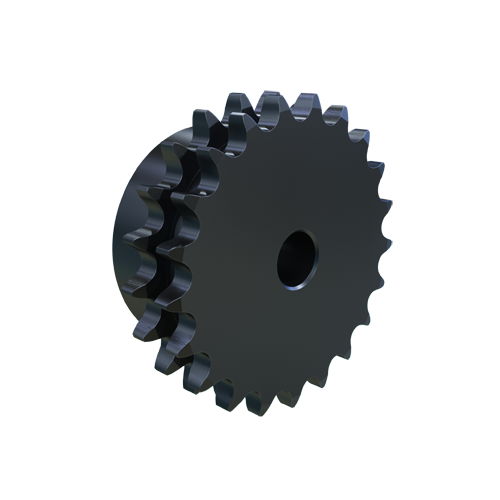

MARTIN SPROCKET D40B21H Sprocket, Stock Bore, 40 Chain, 21 Teeth, 3.355 Inch Pitch Dia., 3.617 Inch O.D., Steel
Item: AJ9BFPModel: D40B21H
7 In Stock
3.617"
Ships within 2 days via
€124.71 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Diameter | 5/8" |
| Bore Type | Finished Bore |
| Chain Number | 40 |
| Chain Pitch | 1/2" |
| Construction | Solid |
| Construction Type | Solid |
| Finished Bore Size | 5/8" |
| For Chain Number | 40 |
| For Chain Pitch | 1/2" |
| Hardened Teeth | 1 |
| Hub Configuration | B |
| Hub Diameter | 2 3/4" |
| Hub Outside Dia. | 2 3/4" |
| Individually Packaged | No |
| Length Through Bore | 1 5/8" |
| Length Thru Bore | 1 5/8" |
| Material | Steel |
| Max. Bore Size | 1 7/8" |
| Min. Bore Size | 5/8" |
| No. Of Teeth | 21 |
| Number Of Chain Rows | 2 |
| Number Of Teeth | 21 |
| Outside Dia. | 3.617" |
| Pitch | 1/2" |
| Pitch Dia. | 3.3548" |
| Pitch Diameter | 3.355" |
| Single Strand Tooth Thickness | 0.275" |
| Storage Dimension Height | 1 5/8" |
| Storage Dimension Length | 3.617" |
| Storage Dimension Width | 3.617" |
Shipping Info:
| Ship weight (kg) | 1.32 |
| Ship height (cm) | 4.14 |
| Ship length (cm) | 9.19 |
| Ship width (cm) | 9.19 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Length Through Bore | For Chain Number | For Chain Pitch | Bore Type | Pitch | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
D40B11H | 11 | 1.7747" | 2.003" | 1 1/2" | 40 | 1/2" | Finished Bore | 1/2" | €100.07 | |
 |
D40B12H | 12 | 1.9319" | 2.166" | 1 1/2" | 40 | 1/2" | Finished Bore | 1/2" | €100.65 | |
 |
D40B13H | 13 | 2.0893" | 2.329" | 1 1/2" | 40 | 1/2" | Finished Bore | 1/2" | €101.80 | |
 |
D40B14H | 14 | 2.247" | 2.491" | 1 1/2" | 40 | 1/2" | Finished Bore | 1/2" | €103.87 | |
 |
D40B15H | 15 | 2.4049" | 2.652" | 1 1/2" | 40 | 1/2" | Finished Bore | 1/2" | €103.87 | |
 |
D40B16H | 16 | 2.5629" | 2.814" | 1 1/2" | 40 | 1/2" | Finished Bore | 1/2" | €104.45 | |
 |
D40B17H | 17 | 2.7211" | 2.975" | 1 1/2" | 40 | 1/2" | Finished Bore | 1/2" | €107.63 |
