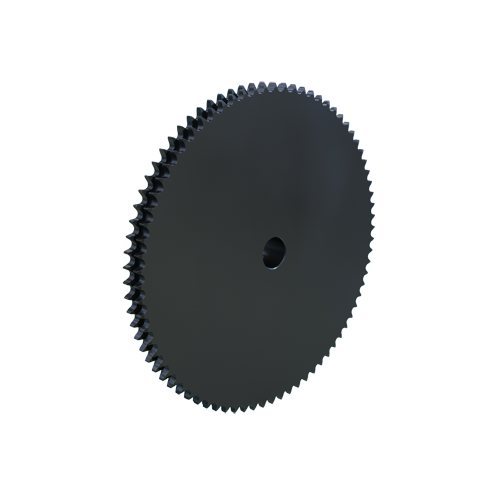

MARTIN SPROCKET D40B76 Sprocket, Stock Bore, 76 Teeth, 12.099 Inch Pitch Dia., 12.389 Inch O.D., Steel
12.389"
Get it by Thursday, Dec 18
€339.11 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 40 |
| Chain Pitch | 1/2" |
| Construction | Solid |
| Construction Type | Solid |
| Finished Bore Size | 1 3/16" |
| For Chain Number | 40 |
| For Chain Pitch | 1/2" |
| Hub Configuration | B |
| Hub Diameter | 4 1/4" |
| Hub Outside Dia. | 4 1/4" |
| Individually Packaged | No |
| Length Through Bore | 2 1/8" |
| Length Thru Bore | 2 1/8" |
| Material | Steel |
| Max. Bore Size | 2 3/4" |
| Min. Bore Size | 1 3/16" |
| Number Of Chain Rows | 2 |
| Number Of Teeth | 76 |
| Outside Dia. | 12.389" |
| Pitch | 1/2" |
| Pitch Dia. | 12.0992" |
| Single Strand Tooth Thickness | 0.275" |
| Storage Dimension Height | 2 1/8" |
| Storage Dimension Length | 12.389" |
| Storage Dimension Width | 12.389" |
Shipping Info:
| Ship weight (kg) | 13.58 |
| Ship height (cm) | 5.4 |
| Ship length (cm) | 31.47 |
| Ship width (cm) | 31.47 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Length Through Bore | For Chain Number | For Chain Pitch | Bore Type | Pitch | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
D40B11H | 11 | 1.7747" | 2.003" | 1 1/2" | 40 | 1/2" | Finished Bore | 1/2" | €100.07 | |
 |
D40B12H | 12 | 1.9319" | 2.166" | 1 1/2" | 40 | 1/2" | Finished Bore | 1/2" | €100.65 | |
 |
D40B13H | 13 | 2.0893" | 2.329" | 1 1/2" | 40 | 1/2" | Finished Bore | 1/2" | €101.80 | |
 |
D40B14H | 14 | 2.247" | 2.491" | 1 1/2" | 40 | 1/2" | Finished Bore | 1/2" | €103.87 | |
 |
D40B15H | 15 | 2.4049" | 2.652" | 1 1/2" | 40 | 1/2" | Finished Bore | 1/2" | €103.87 | |
 |
D40B16H | 16 | 2.5629" | 2.814" | 1 1/2" | 40 | 1/2" | Finished Bore | 1/2" | €104.45 | |
 |
D40B17H | 17 | 2.7211" | 2.975" | 1 1/2" | 40 | 1/2" | Finished Bore | 1/2" | €107.63 |
