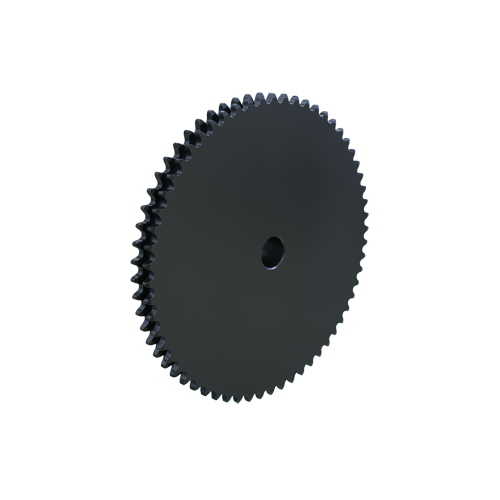

MARTIN SPROCKET D35B60 Sprocket, Stock Bore, 35 Chain, 60 Teeth, 7.165 Inch Pitch Dia., 7.380 Inch O.D., Steel
Item: AJ9BEHModel: D35B60
7 In Stock
7.380"
Ships within 2 days via
€179.42 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Diameter | 3/4" |
| Bore Type | Finished Bore |
| Chain Number | 35 |
| Chain Pitch | 3/8" |
| Construction | Solid |
| Construction Type | Solid |
| Finished Bore Size | 3/4" |
| For Chain Number | 35 |
| For Chain Pitch | 3/8" |
| Hub Configuration | B |
| Hub Diameter | 2 1/2" |
| Hub Outside Dia. | 2 1/2" |
| Individually Packaged | No |
| Length Through Bore | 1 3/8" |
| Length Thru Bore | 1 3/8" |
| Material | Steel |
| Max. Bore Size | 1 3/4" |
| Min. Bore Size | 3/4" |
| No. Of Teeth | 60 |
| Number Of Chain Rows | 2 |
| Number Of Teeth | 60 |
| Outside Dia. | 7.38" |
| Pitch | 3/8" |
| Pitch Dia. | 7.1652" |
| Pitch Diameter | 7.165" |
| Single Strand Tooth Thickness | 0.162" |
| Storage Dimension Height | 1 3/8" |
| Storage Dimension Length | 7.38" |
| Storage Dimension Width | 7.38" |
Shipping Info:
| Ship weight (kg) | 3.15 |
| Ship height (cm) | 3.51 |
| Ship length (cm) | 18.75 |
| Ship width (cm) | 18.75 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Length Through Bore | For Chain Number | For Chain Pitch | Bore Type | Pitch | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
D35B102 | 102 | 12.1773" | 12.397" | 1 1/2" | 35 | 3/8" | Finished Bore | 3/8" | €312.21 | |
 |
D35B12H | 12 | 1.4489" | 1 5/8" | 1 1/4" | 35 | 3/8" | Finished Bore | 3/8" | €70.66 | |
 |
D35B13H | 13 | 1.567" | 1.746" | 1 1/4" | 35 | 3/8" | Finished Bore | 3/8" | €70.66 | |
|
D35B14H | 14 | 1.6852" | 1.868" | 1 1/4" | 35 | 3/8" | Finished Bore | 3/8" | €71.61 | |
|
D35B15H | 15 | 1.8037" | 1.989" | 1 1/4" | 35 | 3/8" | Finished Bore | 3/8" | €72.86 | |
|
D35B16H | 16 | 1.9222" | 2.11" | 1 1/4" | 35 | 3/8" | Finished Bore | 3/8" | €73.53 | |
|
D35B17H | 17 | 2.0408" | 2.231" | 1 1/4" | 35 | 3/8" | Finished Bore | 3/8" | €79.23 |
