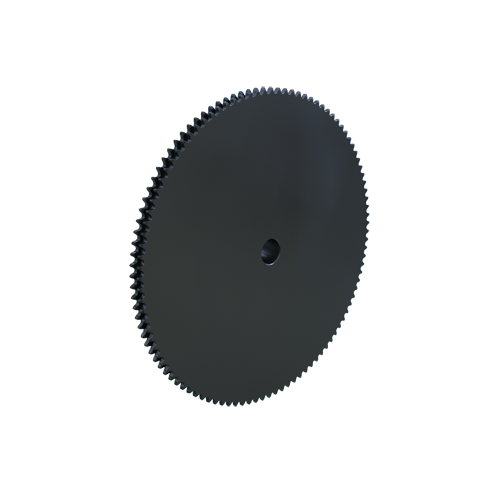

MARTIN SPROCKET D35B102 Sprocket, 35 Chain, 102 Teeth, 12.177 Inch Pitch Dia., 12.397 Inch O.D., Steel
12.397"
Get it by Thursday, Dec 18
€312.21 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 35 |
| Chain Pitch | 3/8" |
| Construction | Solid |
| Construction Type | Solid |
| Finished Bore Size | 1" |
| For Chain Number | 35 |
| For Chain Pitch | 3/8" |
| Hub Configuration | B |
| Hub Diameter | 3 1/2" |
| Hub Outside Dia. | 3 1/2" |
| Individually Packaged | No |
| Length Through Bore | 1 1/2" |
| Length Thru Bore | 1 1/2" |
| Material | Steel |
| Max. Bore Size | 2 3/8" |
| Min. Bore Size | 1" |
| Number Of Chain Rows | 2 |
| Number Of Teeth | 102 |
| Outside Dia. | 12.397" |
| Pitch | 3/8" |
| Pitch Dia. | 12.1773" |
| Single Strand Tooth Thickness | 0.162" |
| Storage Dimension Height | 1 1/2" |
| Storage Dimension Length | 12.397" |
| Storage Dimension Width | 12.397" |
Shipping Info:
| Ship weight (kg) | 9.02 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 31.5 |
| Ship width (cm) | 31.5 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Length Through Bore | For Chain Number | For Chain Pitch | Bore Type | Pitch | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
D35B12H | 12 | 1.4489" | 1 5/8" | 1 1/4" | 35 | 3/8" | Finished Bore | 3/8" | €70.66 | |
 |
D35B20H | 20 | 2.3972" | 2.593" | 1 3/8" | 35 | 3/8" | Finished Bore | 3/8" | €88.73 | |
 |
D35B21H | 21 | 2.5161" | 2.713" | 1 3/8" | 35 | 3/8" | Finished Bore | 3/8" | €92.05 | |
 |
D35B22H | 22 | 2.635" | 2.833" | 1 3/8" | 35 | 3/8" | Finished Bore | 3/8" | €95.98 | |
|
D35B23H | 23 | 2.754" | 2.953" | 1 3/8" | 35 | 3/8" | Finished Bore | 3/8" | €99.28 | |
|
D35B24H | 24 | 2.873" | 3.073" | 1 3/8" | 35 | 3/8" | Finished Bore | 3/8" | €99.20 | |
|
D35B25H | 25 | 2.992" | 3.193" | 1 3/8" | 35 | 3/8" | Finished Bore | 3/8" | €102.68 |
