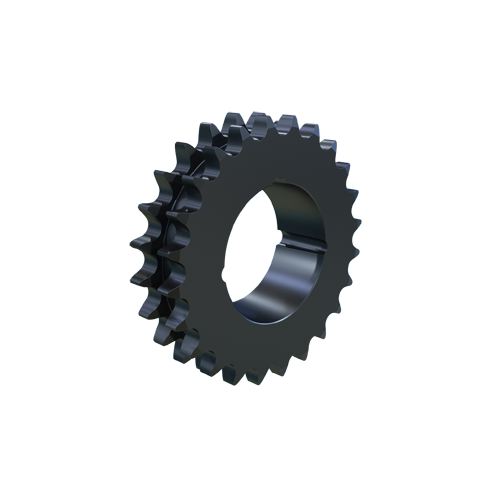

MARTIN SPROCKET D16BTB24 Sprocket, 16B-2 Chain, 24 Teeth, 194.600 mm Pitch Dia., 210.470 mm O.D., Steel
210.470 mm
Get it by Tuesday, Aug 25
€786.07 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 76.2 mm |
| Bushing Type | 3020 Taper |
| Chain Size | #16B-2 |
| Hub Dia. | 167 mm |
| Length Through Bore | 50.8 mm |
| Material | High Carbon Steel |
| No. Of Teeth | 24 |
| Outside Dia. | 210.47 mm |
| Pitch | 25.4 mm |
| Pitch Dia. | 194.6 mm |
| Type | Type B Double Strand Solid Stock Bore |
Shipping Info:
| Ship weight (kg) | 6.69 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 21.06 |
| Ship width (cm) | 21.06 |
| Country of Origin | US |
Product Variants
| Product | Model | Material | Pitch Dia. | No. Of Teeth | Length Through Bore | Chain Size | Bushing Type | Bore Dia. | Hub Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
D16ATB17 | Steel | 138.23 mm | 17 | 44.45 mm | 16B-2 | 2517 Taper Lock | - | - | €612.96 | |
 |
D16BTB19 | High Carbon Steel | 154.32 mm | 19 | 50.8 mm | #16B-2 | 3020 Taper | 76.2 mm | 130 mm | €671.07 | |
 |
D16BTB21 | High Carbon Steel | 170.42 mm | 21 | 50.8 mm | #16B-2 | 3020 Taper | 76.2 mm | 141 mm | €763.42 | |
 |
D16BTB23 | High Carbon Steel | 186.54 mm | 23 | 50.8 mm | #16B-2 | 3020 Taper | 76.2 mm | 158 mm | €742.14 | |
 |
D16BTB25 | High Carbon Steel | 202.66 mm | 25 | 50.8 mm | #16B-2 | 3020 Taper | 76.2 mm | 175 mm | €829.96 | |
 |
D16CTB30 | High Carbon Steel | 243 mm | 30 | 50.8 mm | #16B-2 | 3020 Taper | 76.2 mm | 133 mm | €818.72 | |
 |
D16CTB38 | High Carbon Steel | 307.58 mm | 38 | 50.8 mm | #16B-2 | 3020 Taper | 76.2 mm | 133 mm | €1,138.87 |
