MARTIN SPROCKET Duplex Taper Bushed Type Metric Roller Chain Sprockets, 16B-2 Chain Number

Filter

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

Style	Model	Pitch Dia.	Outside Dia.	Number Of Teeth	Length Through Bore	Bushing Type	Pitch	Price
A	D16ATB13	106.14 mm	122.01 mm	13	38.1 mm	1615 Taper	25.4 mm	€506.21
B	D16ATB14	114.15 mm	130.02 mm	14	31.75 mm	2012 Taper	25.4 mm	€511.60
C	D16ATB15	122.17 mm	138.04 mm	15	31.75 mm	2012 Taper	25.4 mm	€555.47
D	D16ATB16	130.2 mm	146.07 mm	16	31.75 mm	2012 Taper	25.4 mm	€582.62
E	D16ATB17	138.23 mm	154.11 mm	17	44.45 mm	2517 Taper Lock	25.4 mm	€612.96
F	D16ATB18	146.27 mm	162.15 mm	18	44.45 mm	2517 Taper	25.4 mm	€642.88
G	D16BTB19	154.32 mm	170.19 mm	19	50.8 mm	3020 Taper	25.4 mm	€671.07
H	D16BTB20	162.37 mm	178.24 mm	-	50.8 mm	3020 Taper	25.4 mm	€703.57
I	D16BTB21	170.42 mm	186.3 mm	21	50.8 mm	3020 Taper	25.4 mm	€763.42
J	D16BTB22	178.48 mm	194.35 mm	22	50.8 mm	3020 Taper	25.4 mm	€698.25
K	D16BTB23	186.54 mm	202.41 mm	23	50.8 mm	3020 Taper	25.4 mm	€742.14
L	D16BTB24	194.6 mm	210.47 mm	24	50.8 mm	3020 Taper	25.4 mm	€786.07

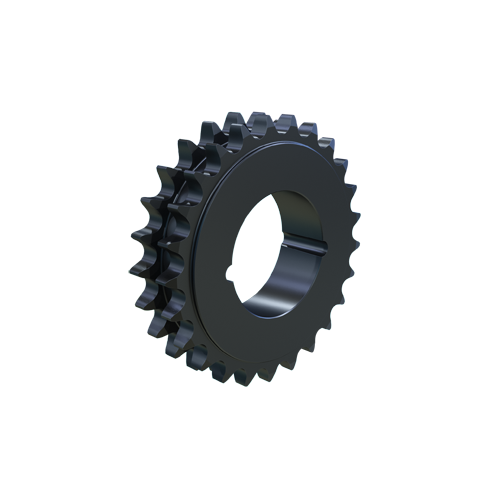

M	D16BTB25	202.66 mm	218.53 mm	-	50.8 mm	3020 Taper	25.4 mm	€829.96
N	D16BTB26	210.72 mm	226.6 mm	-	50.8 mm	3020 Taper	25.4 mm	€788.11
O	D16BTB28	226.86 mm	242.73 mm	28	50.8 mm	3020 Taper	25.4 mm	€859.21

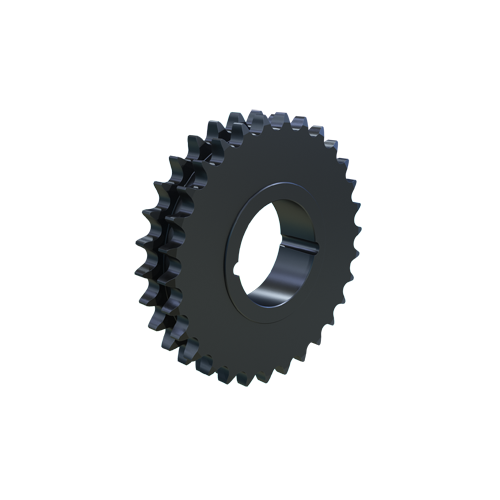

P	D16CTB30	243 mm	258.87 mm	30	50.8 mm	3020 Taper	25.4 mm	€818.72
Q	D16CTB38	307.58 mm	323.46 mm	38	50.8 mm	3020 Taper	25.4 mm	€1,138.87
R	D16CTB42	339.89 mm	355.76 mm	42	50.8 mm	3020 Taper	25.4 mm	€1,205.20
S	D16CTB45	364.12 mm	380 mm	-	50.8 mm	3020 Taper	25.4 mm	€1,362.01
T	D16CTB57	461.08 mm	476.96 mm	-	50.8 mm	3020 Taper	25.4 mm	€2,022.01
U	D16CTB76	614.64 mm	630.52 mm	-	50.8 mm	3020 Taper	25.4 mm	€3,431.50
R	D16CTB95	768.22 mm	784.1 mm	-	50.8 mm	3020 Taper	25.4 mm	€4,575.38

Looking for a part not listed here?
