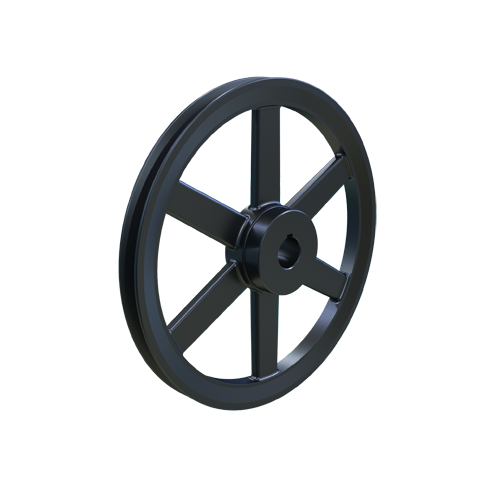

MARTIN SPROCKET BK110 1 Sheave, 1 Inch Bore, 0.875 Inch Face Width, 10.750 Inch Outside Dia., Cast Iron
10.750"
1"
Get it by Thursday, Aug 27
€133.06 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Sheave |
| 4la Or A Belt Pitch Dia. | 10" |
| 5l Or B Belt Pitch Dia. | 10 2/5" |
| Bore Dia. | 1" |
| Bore Type | Finished |
| Bushing Type | H |
| Face Width | 7/8" |
| Hub Dia. | 1 7/8" |
| Hub Projection | 21/32" |
| Length | 1 17/32" |
| Material | Cast Iron |
| No. Of Grooves | 1 |
| Series | BK Series |
| Suitable For Use With | A, 4L, B, 5L Cross Section Belts |
| Type | Arm, Spoke Bored to Size Type C |
Shipping Info:
| Ship weight (kg) | 3.02 |
| Ship height (cm) | 2.22 |
| Ship length (cm) | 27.31 |
| Ship width (cm) | 27.31 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Face Width | Bore Dia. | Material | Price | |
|---|---|---|---|---|---|---|---|
 |
BK45 3/4 | 4 1/4" | 7/8" | 3/4" | Cast Iron | €50.13 | |
 |
BK55 3/4 | 5 1/4" | 7/8" | 3/4" | Cast Iron | €58.21 | |
 |
BK100 1 | 9 3/4" | 7/8" | 1" | Cast Iron | €115.70 | |
 |
BK100 1 1/4 | 9 3/4" | 7/8" | 1 1/4" | Cast Iron | €115.70 | |
 |
BK100 1 1/8 | 9 3/4" | 7/8" | 1 1/8" | Cast Iron | €115.70 | |
 |
BK100 1 3/16 | 9 3/4" | 7/8" | 1 3/16" | Cast Iron | €115.70 | |
 |
BK25 3/4 | 2 1/2" | 0.813" | 3/4" | Steel | €28.51 |
