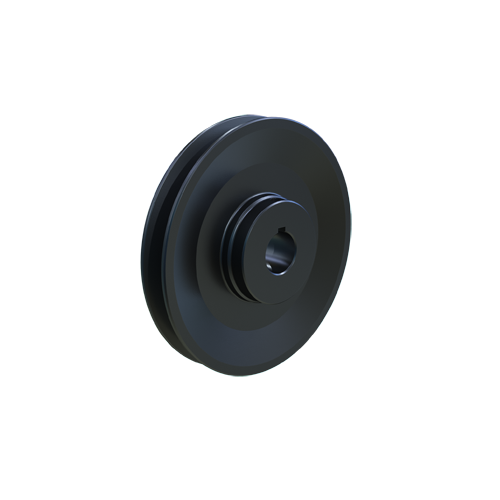

MARTIN SPROCKET BK65 1 Sheave, 1 Inch Bore, 0.875 Inch Face Width, 6.250 Inch Outside Dia., Cast Iron
6.250"
1"
Get it by Tuesday, Aug 25
€70.58 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Sheave |
| 4la Or A Belt Pitch Dia. | 5 1/2" |
| 5l Or B Belt Pitch Dia. | 5.9" |
| Bore Dia. | 1" |
| Bore Type | Finished |
| Bushing Type | H |
| Face Width | 7/8" |
| Hub Dia. | 2 3/4" |
| Hub Projection | 13/32" |
| Length | 1 9/32" |
| Material | Cast Iron |
| No. Of Grooves | 1 |
| Outside Dia. | 6 1/4" |
| Product Datasheet | martin-sprocket-1-3v-1060-sds.pdf |
| Series | BK Series |
| Suitable For Use With | A, 4L, B, 5L Cross Section Belts |
| Type | Bored to Size Type B Web |
Shipping Info:
| Ship weight (kg) | 1.58 |
| Ship height (cm) | 3.25 |
| Ship length (cm) | 15.88 |
| Ship width (cm) | 15.88 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Outside Dia. | Face Width | Bore Dia. | Material | Price | |
|---|---|---|---|---|---|---|---|
 |
BK45 3/4 | 4 1/4" | 7/8" | 3/4" | Cast Iron | €50.13 | |
 |
BK55 3/4 | 5 1/4" | 7/8" | 3/4" | Cast Iron | €58.21 | |
 |
BK100 1 | 9 3/4" | 7/8" | 1" | Cast Iron | €115.70 | |
 |
BK100 1 1/4 | 9 3/4" | 7/8" | 1 1/4" | Cast Iron | €115.70 | |
 |
BK100 1 1/8 | 9 3/4" | 7/8" | 1 1/8" | Cast Iron | €115.70 | |
 |
BK100 1 3/16 | 9 3/4" | 7/8" | 1 3/16" | Cast Iron | €115.70 | |
 |
BK25 3/4 | 2 1/2" | 0.813" | 3/4" | Steel | €28.51 |
