MARTIN SPROCKET 60JA11 Sprocket, QD, 60 Chain, 11 Teeth, 2.662 Inch Pitch Dia., 3.004 Inch O.D., Steel
Item: AJ8ZUTModel: 60JA11
7 In Stock
3.004"
Ships within 2 days via
€83.67 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Type | Bushed |
| Bushing Part Number | JA |
| Bushing Size | JA |
| Bushing Type | Type JA QD |
| Chain Number | 60 |
| Chain Pitch | 3/4" |
| Chain Size | #60 |
| Construction | Solid |
| Construction Type | Solid |
| For Chain Number | 60 |
| Hub Configuration | B |
| Hub Dia. | 1.9" |
| Hub Outside Dia. | 1.9" |
| Individually Packaged | Yes |
| Length Through Bore | 5/8" |
| Length Thru Bore | 14/25" |
| Material | Steel |
| Max. Bore Size | 1 1/4" |
| Min. Bore Size | 3/8" |
| No. Of Chain Rows | 1 |
| No. Of Teeth | 11 |
| Outside Dia. | 3.004" |
| Pitch | 3/4" |
| Pitch Dia. | 2.662" , 2.6621" |
| Single Strand Tooth Thickness | 0.459" |
| Storage Dimension Height | 3/4" |
| Storage Dimension Length | 3 3/16" |
| Storage Dimension Width | 3 3/16" |
| Type | QD Bushed Type B |
Shipping Info:
| Ship weight (kg) | 0.21 |
| Ship height (cm) | 1.6 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 7.62 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Hub Dia. | Storage Dimension Length | Storage Dimension Width | Storage Dimension Height | Length Thru Bore | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
60JA12 | 2.898" | 12 | 5/8" | 2.062" | 3 1/2" | 3 1/2" | 3/4" | 14/25" | €88.59 | |
 |
60JA13 | 3.134" | 13 | 5/8" | 2 1/8" | 3 1/2" | 3 1/2" | 15/16" | 14/25" | €91.38 | |
 |
60SH14 | 3.371" | 14 | 1 5/16" | 2 16/25" | 3 7/8" | 3 7/8" | 15/16" | 0.812" | €91.31 | |
 |
60SH15 | 3.607" | 15 | 1 5/16" | 2 3/4" | 4 5/16" | 4 5/16" | 15/16" | 0.812" | €96.89 | |
 |
60SH16 | 3.844" | 16 | 1 5/16" | 2 3/4" | 4 5/16" | 4 5/16" | 15/16" | 0.812" | €109.51 | |
 |
60SDS17 | 4.082" | 17 | 1 3/8" | 3 1/4" | 4 1/2" | 4 1/2" | 3/4" | 3/4" | €113.19 | |
 |

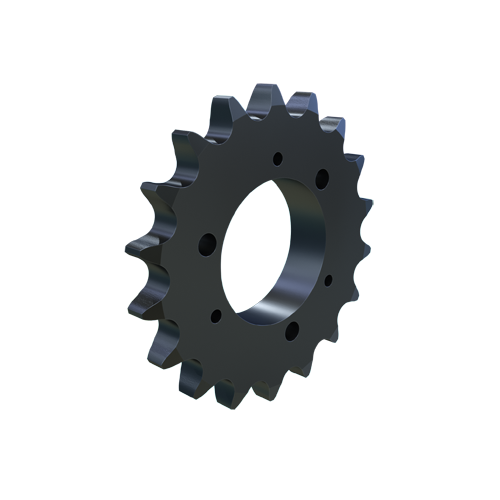

60SDS18 | 4.319" | 18 | 1 3/8" | 3 1/4" | 5 1/16" | 5 1/16" | 13/16" | 3/4" | €117.53 |
