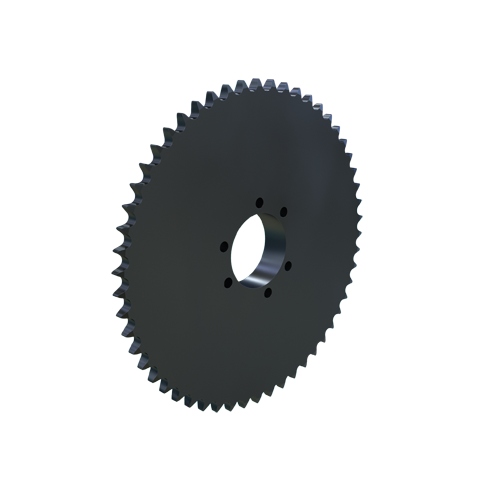

MARTIN SPROCKET 60SF54 Sprocket, QD, 60 Chain, 54 Teeth, 12.899 Inch Pitch Dia., 13.327 Inch O.D., Steel
13.327"
Get it by Friday, Dec 19
€210.38 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Type | Bushed |
| Bushing Part Number | SF |
| Bushing Size | SF |
| Chain Number | 60 |
| Chain Pitch | 3/4" |
| Construction | Welded |
| Construction Type | Welded |
| For Chain Number | 60 |
| For Chain Pitch | 3/4" |
| Hub Configuration | B |
| Hub Diameter | 4 3/4" |
| Hub Outside Dia. | 4 3/4" |
| Individually Packaged | No |
| Length Through Bore | 2 1/16" |
| Length Thru Bore | 1 1/4" |
| Material | Steel |
| Max. Bore Size | 2 15/16" |
| Min. Bore Size | 1/2" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 54 |
| Outside Dia. | 13.327" |
| Pitch | 3/4" |
| Pitch Dia. | 12.8988" |
| Single Strand Tooth Thickness | 0.459" |
| Storage Dimension Height | 1 1/4" |
| Storage Dimension Length | 13.327" |
| Storage Dimension Width | 13.327" |
Shipping Info:
| Ship weight (kg) | 7.56 |
| Ship height (cm) | 5.23 |
| Ship length (cm) | 33.86 |
| Ship width (cm) | 33.86 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Length Through Bore | Bushing Type | For Chain Number | For Chain Pitch | Bore Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
60JA11 | 11 | 2.662" | 3.004" | 5/8" | Type JA QD | 60 | - | Bushed | €83.67 | |
 |
60JA12 | 12 | 2.8978" | 3.249" | 5/8" | Type JA QD | 60 | 3/4" | Bushed | €88.59 | |
 |
60JA13 | 13 | 3.1339" | 3.493" | 5/8" | Type JA QD | 60 | 3/4" | Bushed | €91.38 | |
 |
60SH14 | 14 | 3.3705" | 3.736" | 1 5/16" | Type SH QD | 60 | 3/4" | Bushed | €91.31 | |
 |
60SH15 | 15 | 3.6073" | 3.978" | 1 5/16" | Type SH QD | 60 | 3/4" | Bushed | €96.89 | |
 |
60SH16 | 16 | 3.8444" | 4.221" | 1 5/16" | Type SH QD | 60 | 3/4" | Bushed | €109.51 | |
 |
60SDS17 | 17 | 4.0816" | 4.462" | 1 3/8" | Type SDS QD | 60 | 3/4" | Bushed | €113.19 |
