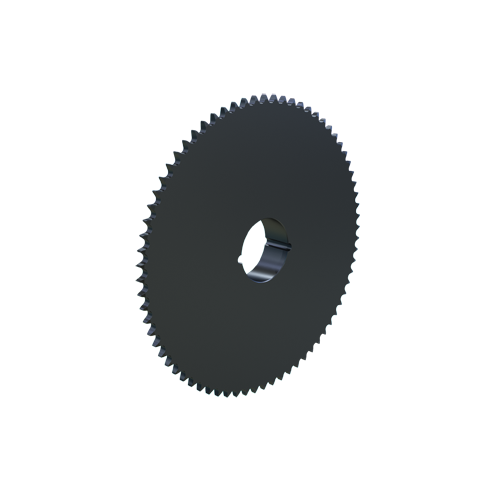

MARTIN SPROCKET 50BTB72 Sprocket, Taper, 50 Chain, 72 Teeth, 14.329 Inch Pitch Dia., 14.690 Inch O.D., Steel
14.690"
Get it by Wednesday, Aug 26
€230.23 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Type | Bushed |
| Bushing Part Number | 2517 |
| Bushing Type | 2517 Taper Lock |
| Chain Number | 50 |
| Chain Pitch | 5/8" |
| Chain Size | #50 |
| Construction | Welded |
| Construction Type | Welded |
| For Chain Number | 50 |
| For Chain Pitch | 5/8" |
| Hub Configuration | B |
| Hub Dia. | 4.228" |
| Hub Outside Dia. | 4 1/4" |
| Individually Packaged | No |
| Length Through Bore | 1 3/4" |
| Length Thru Bore | 1 3/4" |
| Material | Steel |
| Max. Bore Size | 2 1/2" |
| Min. Bore Size | 1/2" |
| No. Of Chain Rows | 1 |
| No. Of Teeth | 72 |
| Outside Dia. | 14.69" |
| Pitch | 5/8" |
| Pitch Dia. | 14.3285" , 14.329" |
| Single Strand Tooth Thickness | 0.343" |
| Storage Dimension Height | 1 3/4" |
| Storage Dimension Length | 14.69" |
| Storage Dimension Width | 14.69" |
| Type | Taper Bushed Type B |
Shipping Info:
| Ship weight (kg) | 7.46 |
| Ship height (cm) | 4.45 |
| Ship length (cm) | 37.31 |
| Ship width (cm) | 37.31 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Hub Dia. | Storage Dimension Length | Storage Dimension Width | Storage Dimension Height | Length Thru Bore | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
50BTB12 | 2.415" | 12 | 7/8" | 1.938" | 2 7/8" | 2 7/8" | 15/16" | 7/8" | €83.04 | |
 |
50BTB13 | 2.612" | 13 | 7/8" | 1.813" | 3 1/4" | 3 1/4" | 15/16" | 7/8" | €84.23 | |
 |
50BTB14 | 2.809" | 14 | 7/8" | 1.938" | 3 1/4" | 3 1/4" | 15/16" | 7/8" | €88.14 | |
 |
50BTB15 | 3.006" | 15 | 1" | 2.469" | 3 5/8" | 3 5/8" | 1.06" | 1" | €90.83 | |
 |
50BTB16 | 3.204" | 16 | 1" | 2.781" | 3.517" | 3.517" | 1" | 1" | €91.01 | |
 |
50BTB17 | 3.401" | 17 | 1" | 2.781" | 4 5/16" | 4 5/16" | 1.06" | 1" | €97.54 | |
 |
50BTB18 | 3.599" | 18 | 1" | 2.781" | 4 5/16" | 4 5/16" | 1.06" | 1" | €99.00 |
