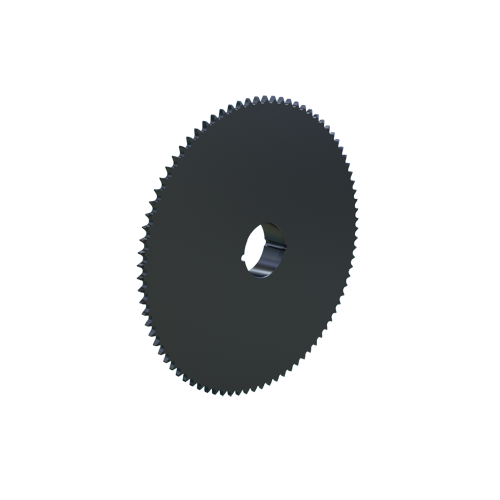

MARTIN SPROCKET 50BTB84 Sprocket, Taper, 50 Chain, 84 Teeth, 16.715 Inch Pitch Dia., 17.078 Inch O.D., Steel
17.078"
Get it by Tuesday, Feb 24
€274.36 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Type | Bushed |
| Bushing Part Number | 2517 |
| Chain Number | 50 |
| Chain Pitch | 5/8" |
| Construction | Welded |
| Construction Type | Welded |
| For Chain Number | 50 |
| For Chain Pitch | 5/8" |
| Hub Configuration | B |
| Hub Diameter | 4 1/4" |
| Hub Outside Dia. | 4 1/4" |
| Individually Packaged | No |
| Length Through Bore | 1 3/4" |
| Length Thru Bore | 1 3/4" |
| Material | Steel |
| Max. Bore Size | 2 1/2" |
| Min. Bore Size | 1/2" |
| No. Of Teeth | 84 |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 84 |
| Outside Dia. | 17.078" |
| Pitch | 5/8" |
| Pitch Dia. | 16.7152" |
| Single Strand Tooth Thickness | 0.343" |
| Storage Dimension Height | 1 3/4" |
| Storage Dimension Length | 17.078" |
| Storage Dimension Width | 17.078" |
Shipping Info:
| Ship weight (kg) | 9.54 |
| Ship height (cm) | 4.45 |
| Ship length (cm) | 43.38 |
| Ship width (cm) | 43.38 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Length Through Bore | Bushing Type | For Chain Number | For Chain Pitch | Bore Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
50BTB112 | 112 | 22.2846" | 22.651" | 1 3/4" | TB 2517 | 50 | 5/8" | Bushed | €494.38 | |
 |
50BTB12 | 12 | 2.4148" | 2.708" | 7/8" | 1008 Taper Lock | 50 | 5/8" | Bushed | €83.04 | |
 |
50BTB13 | 13 | 2.6116" | 2.911" | 7/8" | 1008 Taper Lock | 50 | 5/8" | Bushed | €84.23 | |
 |
50BTB14 | 14 | 2.8087" | 3.113" | 7/8" | 1008 Taper Lock | 50 | 5/8" | Bushed | €88.14 | |
 |
50BTB15 | 15 | 3.0061" | 3.315" | 1" | 1210 Taper Lock | 50 | 5/8" | Bushed | €90.83 | |
 |
50BTB16 | 16 | 3.2036" | 3.517" | 1" | 1610 Taper Lock | 50 | 5/8" | Bushed | €91.01 | |
 |
50BTB17 | 17 | 3.4014" | 3.718" | 1" | 1610 Taper Lock | 50 | 5/8" | Bushed | €97.54 |
