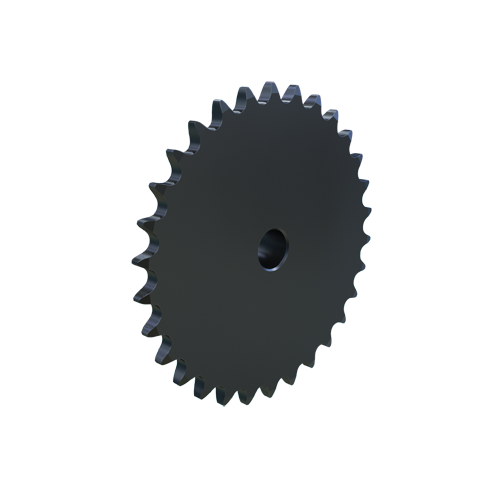

MARTIN SPROCKET 41B30 Sprocket, 41 Chain, 30 Teeth, 4.783 Inch Pitch Dia., 5.057 Inch O.D., Steel
Item: AJ8UKFModel: 41B30
7 In Stock
5.057"
Ships within 2 days via
€87.15 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Diameter | 5/8" |
| Bore Type | Finished Bore |
| Chain Number | 41 |
| Chain Pitch | 1/2" |
| Construction | Solid |
| Construction Type | Solid |
| Finished Bore Size | 5/8" |
| For Chain Number | 41 |
| For Chain Pitch | 1/2" |
| Hub Configuration | B |
| Hub Diameter | 3 1/4" |
| Hub Outside Dia. | 3 1/4" |
| Individually Packaged | Yes |
| Length Through Bore | 1" |
| Length Thru Bore | 1" |
| Material | Steel |
| Max. Bore Size | 2 1/4" |
| Min. Bore Size | 5/8" |
| No. Of Teeth | 30 |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 30 |
| Outside Dia. | 5.057" |
| Pitch | 1/2" |
| Pitch Dia. | 4.7834" |
| Pitch Diameter | 4.783" |
| Single Strand Tooth Thickness | 0.227" |
| Storage Dimension Height | 1 1/8" |
| Storage Dimension Length | 5 1/4" |
| Storage Dimension Width | 5 1/4" |
Shipping Info:
| Ship weight (kg) | 1.33 |
| Ship height (cm) | 2.86 |
| Ship length (cm) | 12.85 |
| Ship width (cm) | 12.85 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Length Through Bore | For Chain Number | For Chain Pitch | Bore Type | Pitch | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
41B6 | 6 | 1" | 1.166" | 7/8" | 41 | 1/2" | Finished Bore | 1/2" | €21.38 | |
 |
41B7 | 7 | 1.1524" | 1.338" | 7/8" | 41 | 1/2" | Finished Bore | 1/2" | €21.93 | |
 |
41B8 | 8 | 1.3066" | 1.507" | 7/8" | 41 | 1/2" | Finished Bore | 1/2" | €23.02 | |
 |
41B9 | 9 | 1.4619" | 1.674" | 7/8" | 41 | 1/2" | Finished Bore | 1/2" | €23.84 | |
 |
41B10 | 10 | 1.618" | 1.839" | 7/8" | 41 | 1/2" | Finished Bore | 1/2" | €24.93 | |
 |
41B11 | 11 | 1.7747" | 2.003" | 7/8" | 41 | 1/2" | Finished Bore | 1/2" | €25.49 | |
 |
41B12 | 12 | 1.9319" | 2.166" | 7/8" | 41 | 1/2" | Finished Bore | 1/2" | €26.85 |
