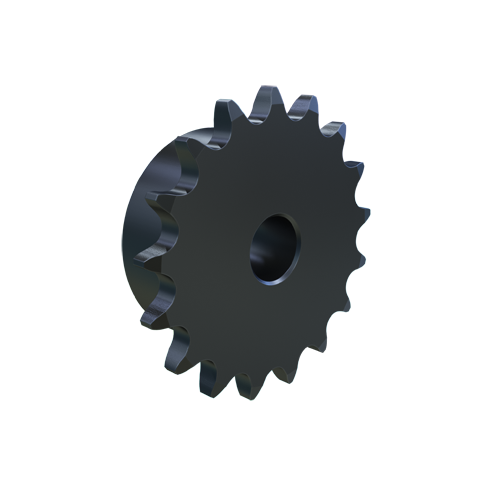

MARTIN SPROCKET 41B17 Sprocket, 41 Chain, 17 Teeth, 2.721 Inch Pitch Dia., 2.975 Inch O.D., Steel
Item: AJ8UJHModel: 41B17
7 In Stock
2.975"
Ships within 2 days via
€33.41 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 5/8" |
| Bore Type | Finished Bore |
| Chain Number | 41 |
| Chain Pitch | 1/2" |
| Chain Size | #41 |
| Construction | Solid |
| Construction Type | Solid |
| Finished Bore Size | 5/8" |
| For Chain Number | 41 |
| For Chain Pitch | 1/2" |
| Hub Configuration | B |
| Hub Dia. | 2 1/8" |
| Hub Outside Dia. | 2.2344" |
| Individually Packaged | Yes |
| Length Through Bore | 1" |
| Length Thru Bore | 1" |
| Material | Steel |
| Max. Bore Size | 1 1/2" |
| Min. Bore Size | 5/8" |
| No. Of Chain Rows | 1 |
| No. Of Teeth | 17 |
| Outside Dia. | 2.975" |
| Pitch | 1/2" |
| Pitch Dia. | 2.721" , 2.7211" |
| Single Strand Tooth Thickness | 0.227" |
| Storage Dimension Height | 1 1/16" |
| Storage Dimension Length | 3 1/4" |
| Storage Dimension Width | 3 1/4" |
| Type | Stock Bore Type B |
Shipping Info:
| Ship weight (kg) | 0.56 |
| Ship height (cm) | 2.7 |
| Ship length (cm) | 7.57 |
| Ship width (cm) | 7.57 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Hub Dia. | Bore Dia. | Storage Dimension Length | Storage Dimension Width | Storage Dimension Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
41B6 | 1" | 6 | 7/8" | 0.656" | 3/8" | 1 1/2" | 1 1/2" | 13/16" | €21.38 | |
 |
41B7 | 1.1524" | 7 | 7/8" | 3/4" | 3/8" to 3/8" | 1 15/16" | 1 15/16" | 15/16" | €21.93 | |
 |
41B8 | 1.3066" | 8 | 7/8" | 0.984" | 1/2" | 1 15/16" | 1 15/16" | 15/16" | €23.02 | |
 |
41B9 | 1.462" | 9 | 7/8" | 1 1/8" | 1/2" | 1 15/16" | 1 15/16" | 15/16" | €23.84 | |
 |
41B10 | 1.618" | 10 | 7/8" | 1 1/4" | 1/2" | 1 15/16" | 1 15/16" | 15/16" | €24.93 | |
 |
41B11 | 1.775" | 11 | 7/8" | 1 3/8" | 1/2" | 2 9/16" | 2 9/16" | 15/16" | €25.49 | |
 |
41B12 | 1.932" | 12 | 7/8" | 1.593" | 1/2" | 2 9/16" | 2 9/16" | 15/16" | €26.85 |
