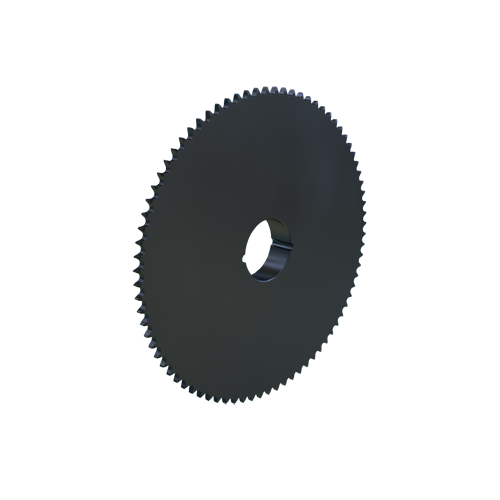

MARTIN SPROCKET 40BTB80 Sprocket, 40 Chain, 80 Teeth, 12.736 Inch Pitch Dia., 13.026 Inch O.D., Steel
Item: AJ8YHRModel: 40BTB80
7 In Stock
13.026"
Ships within 2 days via
€208.77 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Type | Bushed |
| Bushing Part Number | 2012 |
| Bushing Type | 2012 Taper Lock |
| Chain Number | 40 |
| Chain Pitch | 1/2" |
| Chain Size | #40 |
| Construction | Welded |
| Construction Type | Welded |
| For Chain Number | 40 |
| For Chain Pitch | 1/2" |
| Hub Configuration | B |
| Hub Dia. | 3.532" |
| Hub Outside Dia. | 3 9/16" |
| Individually Packaged | No |
| Length Through Bore | 1 1/4" |
| Length Thru Bore | 1 1/4" |
| Material | Steel |
| Max. Bore Size | 2" |
| Min. Bore Size | 1/2" |
| No. Of Chain Rows | 1 |
| No. Of Teeth | 80 |
| Outside Dia. | 13.026" |
| Pitch | 1/2" |
| Pitch Dia. | 12.7357" , 12.736" |
| Single Strand Tooth Thickness | 0.284" |
| Storage Dimension Height | 1 1/4" |
| Storage Dimension Length | 13.026" |
| Storage Dimension Width | 13.026" |
| Type | Taper Bushed Type B |
Shipping Info:
| Ship weight (kg) | 4.57 |
| Ship height (cm) | 3.18 |
| Ship length (cm) | 33.1 |
| Ship width (cm) | 33.1 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Hub Dia. | Storage Dimension Length | Storage Dimension Width | Storage Dimension Height | Length Thru Bore | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
40BTB14 | 2.247" | 14 | 7/8" | 1.813" | 2 9/16" | 2 9/16" | 15/16" | 7/8" | €70.11 | |
 |
40BTB15 | 2.405" | 15 | 7/8" | 1.813" | 2 7/8" | 2 7/8" | 15/16" | 7/8" | €71.61 | |
 |
40BTB16 | 2.563" | 16 | 7/8" | 1.937" | 2 7/8" | 2 7/8" | 15/16" | 7/8" | €72.81 | |
 |
40BTB17 | 2.721" | 17 | 1" | 2 3/8" | 3 1/4" | 3 1/4" | 1.06" | 1" | €79.71 | |
 |
40BTB18 | 2.879" | 18 | 1" | 2.469" | 3 1/4" | 3 1/4" | 1.06" | 1" | €83.04 | |
 |
40BTB19 | 3.038" | 19 | 1" | 2.469" | 3 5/8" | 3 5/8" | 1.06" | 1" | €88.14 | |
 |
40BTB20 | 3.196" | 20 | 1" | 2.781" | 3 5/8" | 3 5/8" | 1.06" | 1" | €91.01 |
