MARTIN SPROCKET 40BTB16 Sprocket, Taper, 40 Chain, 16 Teeth, 2.563 Inch Pitch Dia., 2.814 Inch O.D., Steel
Item: AJ8YDUModel: 40BTB16
7 In Stock
2.814"
Ships within 2 days via
€72.81 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Type | Bushed |
| Bushing Part Number | 1008 |
| Chain Number | 40 |
| Chain Pitch | 1/2" |
| Construction | Solid |
| Construction Type | Solid |
| For Chain Number | 40 |
| For Chain Pitch | 1/2" |
| Hub Configuration | B |
| Hub Outside Dia. | 1 13/16" |
| Individually Packaged | Yes |
| Length Through Bore | 7/8" |
| Length Thru Bore | 7/8" |
| Material | Steel |
| Max. Bore Size | 1" |
| Min. Bore Size | 1/2" |
| No. Of Teeth | 16 |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 16 |
| Outside Dia. | 2.814" |
| Pitch | 1/2" |
| Pitch Dia. | 2.5629" |
| Pitch Diameter | 2.563" |
| Single Strand Tooth Thickness | 0.284" |
| Storage Dimension Height | 15/16" |
| Storage Dimension Length | 2 7/8" |
| Storage Dimension Width | 2 7/8" |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 2.24 |
| Ship length (cm) | 7.14 |
| Ship width (cm) | 7.14 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Length Through Bore | Bushing Type | For Chain Number | For Chain Pitch | Bore Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
40BTB14 | 14 | 2.247" | 2.491" | 7/8" | 1008 Taper Lock | 40 | 1/2" | Bushed | €70.11 | |
 |
40BTB15 | 15 | 2.4049" | 2.652" | 7/8" | 1008 Taper Lock | 40 | 1/2" | Bushed | €71.61 | |
 |
40BTB17 | 17 | 2.7211" | 2.975" | 1" | 1210 Taper Lock | 40 | 1/2" | Bushed | €79.71 | |
 |
40BTB18 | 18 | 2.8794" | 3.136" | 1" | 1210 Taper Lock | 40 | 1/2" | Bushed | €83.04 | |
 |
40BTB19 | 19 | 3.0378" | 3.296" | 1" | 1210 Taper Lock | 40 | 1/2" | Bushed | €88.14 | |
 |
40BTB20 | 20 | 3.1962" | 3.457" | 1" | 1610 Taper Lock | 40 | 1/2" | Bushed | €91.01 | |
 |

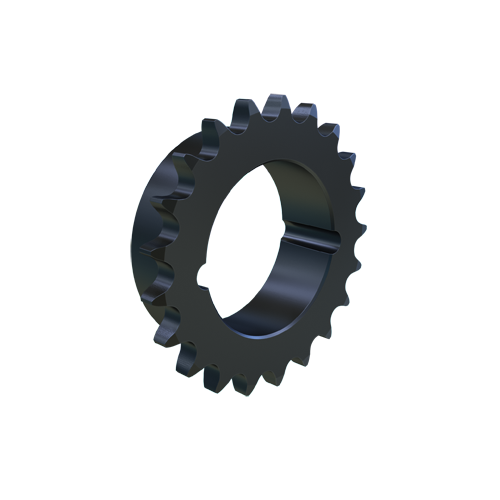

40BTB21 | 21 | 3.3548" | 3.617" | 1" | 1610 Taper Lock | 40 | 1/2" | Bushed | €97.54 |
