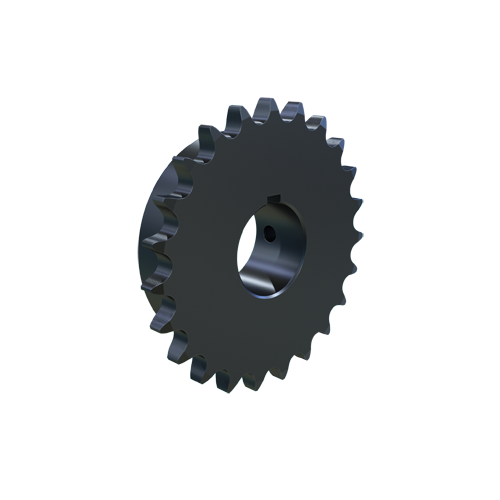

MARTIN SPROCKET 40BS23 1 1/4 Roller Chain Sprocket, Bore To Size, 1.250 Inch Bore, 3.938 Inch Outside Dia. Steel
Item: AJ8WEXModel: 40BS23 1 1/4
7 In Stock
3.938"
1.250"
Ships within 2 days via
€82.24 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 1 1/4" |
| Bore Size | 1 1/4" |
| Bore Type | Finished Bore |
| Chain Number | 40 |
| Chain Pitch | 1/2" |
| Chain Size | #40 |
| Construction | Solid |
| Construction Type | Solid |
| Finished Bore Size | 1 1/4" |
| For Chain Number | 40 |
| For Chain Pitch | 1/2" |
| Hub Configuration | B |
| Hub Dia. | 3" |
| Hub Outside Dia. | 3" |
| Individually Packaged | Yes |
| Key Way Size | 1/4" x 1/8" |
| Length Through Bore | 1" |
| Length Thru Bore | 1" |
| Material | Steel |
| No. Of Chain Rows | 1 |
| No. Of Teeth | 23 |
| Outside Dia. | 3.938" |
| Pitch | 1/2" |
| Pitch Dia. | 3.672" |
| Screw Size | 5/16"-18 x 5/16" |
| Set Screw Location | (1) Over Keyway And (1) At 90° |
| Set Screw Size | 5/16"-18 |
| Set Screw Thread Type | Coarse |
| Single Strand Tooth Thickness | 0.284" |
| Storage Dimension Height | 1.06" |
| Storage Dimension Length | 4 5/16" |
| Storage Dimension Width | 4 5/16" |
| Type | Bored to Size Type BS |
Shipping Info:
| Ship weight (kg) | 0.8 |
| Ship height (cm) | 2.69 |
| Ship length (cm) | 10.01 |
| Ship width (cm) | 10.01 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Pitch Dia. | Outside Dia. | Hub Dia. | Length Through Bore | Set Screw Size | Set Screw Location | Bore Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
40BS9 1/2 | 1/2" | 1.462" | 1.674" | 1 1/8" | 7/8" | #10-24 | (2) 90° Apart (No Keyway) | 1/2" | €29.33 | |
 |
40BS9 5/8 | 5/8" | 1.462" | 1.674" | 1 1/8" | 7/8" | 1/4"-20 | (1) Over Keyway And (1) At 90° | 5/8" | €29.33 | |
 |
40BS10 1/2 | 1/2" | 1.618" | 1.839" | 1 1/4" | 7/8" | #10-24 | (2) 90° Apart (No Keyway) | 1/2" | €30.42 | |
 |
40BS10 5/8 | 5/8" | 1.618" | 1.839" | 1 1/4" | 7/8" | 1/4"-20 | (1) Over Keyway And (1) At 90° | 5/8" | €30.42 | |
 |
40BS10 3/4 | 3/4" | 1.618" | 1.839" | 1 1/4" | 7/8" | 1/4"-20 | (1) Over Keyway And (1) At 90° | 3/4" | €30.42 | |
 |
40BS11 1/2 | 1/2" | 1.775" | 2.003" | 1 3/8" | 7/8" | #10-24 | (2) 90° Apart (No Keyway) | 1/2" | €31.80 | |
 |
40BS11 5/8 | 5/8" | 1.775" | 2.003" | 1 3/8" | 7/8" | 1/4"-20 | (1) Over Keyway And (1) At 90° | 5/8" | €31.80 |
