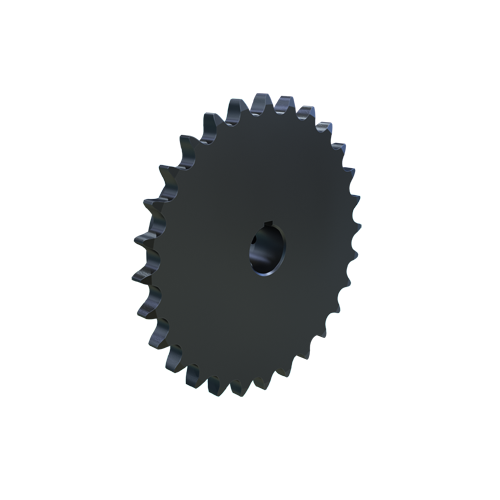

MARTIN SPROCKET 40BS28 3/4 Roller Chain Sprocket, 40 Chain No., 0.750 Inch Bore, 4.738 Inch Outside Dia. Steel
Item: AJ8WHEModel: 40BS28 3/4
7 In Stock
4.738"
0.750"
Ships within 2 days via
€106.75 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 3/4" |
| Bore Size | 3/4" |
| Bore Type | Finished Bore |
| Chain Number | 40 |
| Chain Pitch | 1/2" |
| Chain Size | #40 |
| Construction | Solid |
| Construction Type | Solid |
| Finished Bore Size | 3/4" |
| For Chain Number | 40 |
| For Chain Pitch | 1/2" |
| Hub Configuration | B |
| Hub Dia. | 3 1/4" |
| Hub Outside Dia. | 3 1/4" |
| Individually Packaged | Yes |
| Key Way Size | 3/16" x 3/32" |
| Length Thru Bore | 1" |
| Material | Steel |
| No. Of Chain Rows | 1 |
| No. Of Teeth | 28 |
| Outside Dia. | 4.738" |
| Pitch | 1/2" |
| Pitch Dia. | 4.4657" , 4.466" |
| Screw Size | 1/4"-20 x 1/4" |
| Set Screw Location | (1) Over Keyway And (1) At 90° |
| Set Screw Size | 1/4"-20 |
| Set Screw Thread Type | Coarse |
| Single Strand Tooth Thickness | 0.284" |
| Storage Dimension Height | 1.06" |
| Storage Dimension Length | 4 13/16" |
| Storage Dimension Width | 4 13/16" |
| Type | Bored to Size Type BS |
Shipping Info:
| Ship weight (kg) | 1.18 |
| Ship height (cm) | 2.69 |
| Ship length (cm) | 12.04 |
| Ship width (cm) | 12.04 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Hub Dia. | Bore Dia. | Length Thru Bore | Set Screw Size | Key Way Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
40BS9 1/2 | 1.462" | 9 | 7/8" | 1 1/8" | 1/2" | 7/8" | #10-24 | 1/8" x 1/16" | €29.33 | |
 |
40BS9 5/8 | 1.462" | 9 | 7/8" | 1 1/8" | 5/8" | 7/8" | 1/4"-20 | 3/16" x 3/32" | €29.33 | |
 |
40BS10 1/2 | 1.618" | 10 | 7/8" | 1 1/4" | 1/2" | 7/8" | #10-24 | 1/8" x 1/16" | €30.42 | |
 |
40BS10 5/8 | 1.618" | 10 | 7/8" | 1 1/4" | 5/8" | 7/8" | 1/4"-20 | 3/16" x 3/32" | €30.42 | |
 |
40BS10 3/4 | 1.618" | 10 | 7/8" | 1 1/4" | 3/4" | 7/8" | 1/4"-20 | 3/16" x 3/32" | €30.42 | |
 |
40BS11 1/2 | 1.775" | 11 | 7/8" | 1 3/8" | 1/2" | 7/8" | #10-24 | 1/8" x 1/16" | €31.80 | |
 |
40BS11 5/8 | 1.775" | 11 | 7/8" | 1 3/8" | 5/8" | 7/8" | 1/4"-20 | 3/16" x 3/32" | €31.80 |
