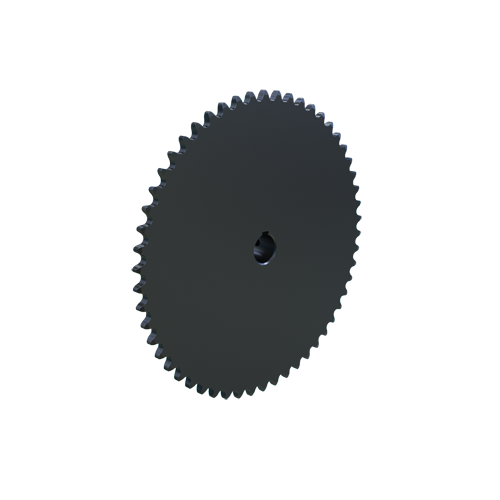

MARTIN SPROCKET 35BS54 5/8 Roller Chain Sprocket, Bore To Size, 0.625 Inch Bore, 6.664 Inch Outside Dia. Steel
Item: AZ9AXRModel: 35BS54 5/8
7 In Stock
6.664"
0.625"
Ships within 2 days via
€109.76 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Diameter | 5/8" |
| Bore Size | 5/8" |
| Bore Type | Finished Bore |
| Chain Number | 35 |
| Chain Pitch | 3/8" |
| Construction | Welded |
| Construction Type | Welded |
| Finished Bore Size | 5/8" |
| For Chain Number | 35 |
| For Chain Pitch | 3/8" |
| Hub Configuration | B |
| Hub Diameter | 2 1/4" |
| Hub Outside Dia. | 2 1/4" |
| Individually Packaged | No |
| Keyway Size | 3/16" x 3/32" |
| Length Through Bore | 1" |
| Length Thru Bore | 1" |
| Material | Steel |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 54 |
| Outside Dia. | 6.664" |
| Pitch | 3/8" |
| Pitch Dia. | 6.4494" |
| Product Datasheet | martin-sprocket-100a10.pdf |
| Set Screw Location | (1) Over Keyway And (1) At 90° |
| Set Screw Size | 1/4"-20 |
| Set Screw Thread Type | Coarse |
| Single Strand Tooth Thickness | 0.168" |
| Storage Dimension Height | 1" |
| Storage Dimension Length | 6.664" |
| Storage Dimension Width | 6.664" |
Shipping Info:
| Ship weight (kg) | 1.05 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 16.92 |
| Ship width (cm) | 16.92 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Length Through Bore | Set Screw Size | Bore Size | For Chain Pitch | For Chain Number | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
35BS9 3/8 | 9 | 1.0964" | 1.255" | 3/4" | #10-24 | 3/8" | 3/8" | 35 | €26.31 | |
 |
35BS10 3/8 | 10 | 1.2135" | 1.379" | 3/4" | #10-24 | 3/8" | 3/8" | 35 | €26.85 | |
 |
35BS10 1/2 | 10 | 1.2135" | 1.379" | 3/4" | #10-24 | 1/2" | 3/8" | 35 | €26.85 | |
 |
35BS10 5/8 | 10 | 1.2135" | 1.379" | 3/4" | 1/4"-20 | - | 3/8" | 35 | €26.85 | |
 |
35BS11 3/8 | 11 | 1.331" | 1.502" | 3/4" | #10-24 | 3/8" | 3/8" | 35 | €27.97 | |
 |
35BS11 1/2 | 11 | 1.331" | 1.502" | 3/4" | #10-24 | 1/2" | 3/8" | 35 | €27.97 | |
 |
35BS11 5/8 | 11 | 1.331" | 1.502" | 3/4" | 1/4"-20 | 5/8" | 3/8" | 35 | €27.97 |
