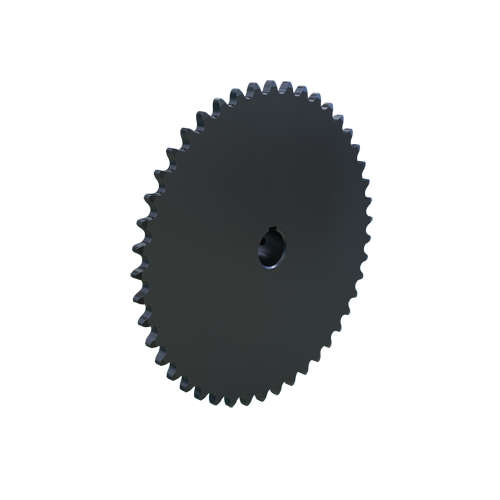

MARTIN SPROCKET 35BS45 5/8 Roller Chain Sprocket, Bore To Size, 0.625 Inch Bore, 5.588 Inch Outside Dia. Steel
Item: AJ8VXFModel: 35BS45 5/8
7 In Stock
5.588"
0.625"
Ships within 2 days via
€99.47 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 5/8" |
| Bore Size | 5/8" |
| Bore Type | Finished Bore |
| Chain Number | 35 |
| Chain Pitch | 3/8" |
| Chain Size | #35 |
| Construction | Welded |
| Construction Type | Welded |
| Finished Bore Size | 5/8" |
| For Chain Number | 35 |
| For Chain Pitch | 3/8" |
| Hub Configuration | B |
| Hub Dia. | 2 1/4" |
| Hub Outside Dia. | 2 1/4" |
| Individually Packaged | No |
| Key Way Size | 3/16" x 3/32" |
| Length Thru Bore | 1" |
| Material | Steel |
| No. Of Chain Rows | 1 |
| No. Of Teeth | 45 |
| Pitch | 3/8" |
| Pitch Dia. | 5.3758" |
| Product Datasheet | martin-sprocket-100a10.pdf |
| Screw Size | 1/4"-20 x 1/4" |
| Set Screw Size | 1/4"-20 |
| Set Screw Thread Type | Coarse |
| Single Strand Tooth Thickness | 0.168" |
| Storage Dimension Height | 1" |
| Storage Dimension Length | 5.588" |
| Storage Dimension Width | 5.588" |
| Type | Type B Bored to Size Single Strand Welded |
Shipping Info:
| Ship weight (kg) | 0.85 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 14.2 |
| Ship width (cm) | 14.2 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Hub Dia. | Bore Dia. | Finished Bore Size | Set Screw Size | Screw Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
35BS9 3/8 | 1.0964" | 9 | 3/4" | 0.844" | 3/8" | 3/8" | #10-24 | 10"-24 x 3/16" | €26.31 | |
 |
35BS10 3/8 | 1.214" | 10 | 3/4" | 0.969" | 3/8" | 3/8" | #10-24 | 10"-24 x 3/16" | €26.85 | |
 |
35BS10 1/2 | 1.214" | 10 | 3/4" | 0.969" | 1/2" | 1/2" | #10-24 | 1/4"-20 x 1/4" | €26.85 | |
 |
35BS10 5/8 | 1.214" | 10 | 3/4" | 0.969" | 5/8" | 5/8" | 1/4"-20 | 1/4"-20 x 1/4" | €26.85 | |
 |
35BS11 3/8 | 1.331" | 11 | 3/4" | 1.063" | 3/8" | 3/8" | #10-24 | 10"-24 x 3/16" | €27.97 | |
 |
35BS11 1/2 | 1.331" | 11 | 3/4" | 1.063" | 1/2" | 1/2" | #10-24 | 1/4"-20 x 1/4" | €27.97 | |
 |
35BS11 5/8 | 1.331" | 11 | 3/4" | 1.063" | 5/8" | 5/8" | 1/4"-20 | 1/4"-20 x 1/4" | €27.97 |
