MARTIN SPROCKET Bored To Size Type Roller Chain Sprockets, 35 Chain Number
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1
B1
C1
D1
E1
F1
G1
H1
I1
J1
K1
L1
M1
N1
O1
P1
Q1
R1
S1
T1
U1
V1
W1
X1
Y1
Z1
A2
B2
C2
D2
E2
F2
G2
H2
I2| Style | Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Hub Dia. | Bore Dia. | Finished Bore Size | Set Screw Size | Screw Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 35BS9 3/8 | 1.0964" | 9 | 3/4" | 0.844" | 3/8" | 3/8" | #10-24 | 10"-24 x 3/16" | €26.31 | |
| B | 35BS10 3/8 | 1.214" | 10 | 3/4" | 0.969" | 3/8" | 3/8" | #10-24 | 10"-24 x 3/16" | €26.85 | |
| C | 35BS10 1/2 | 1.214" | 10 | 3/4" | 0.969" | 1/2" | 1/2" | #10-24 | 1/4"-20 x 1/4" | €26.85 | |
| D | 35BS10 5/8 | 1.214" | 10 | 3/4" | 0.969" | 5/8" | 5/8" | 1/4"-20 | 1/4"-20 x 1/4" | €26.85 | |
| E | 35BS11 5/8 | 1.331" | 11 | 3/4" | 1.063" | 5/8" | 5/8" | 1/4"-20 | 1/4"-20 x 1/4" | €27.97 | |
| F | 35BS11 3/8 | 1.331" | 11 | 3/4" | 1.063" | 3/8" | 3/8" | #10-24 | 10"-24 x 3/16" | €27.97 | |
| G | 35BS11 1/2 | 1.331" | 11 | 3/4" | 1.063" | 1/2" | 1/2" | #10-24 | 1/4"-20 x 1/4" | €27.97 | |
| H | 35BS11 3/4 | 1.331" | 11 | 3/4" | 1.063" | 3/4" | 3/4" | 1/4"-20 | 1/4"-20 x 1/4" | €27.97 | |
| I | 35BS13 3/4 | 1.567" | 13 | 3/4" | 1 1/4" | 3/4" | 3/4" | 1/4"-20 | 1/4"-20 x 1/4" | €29.88 | |

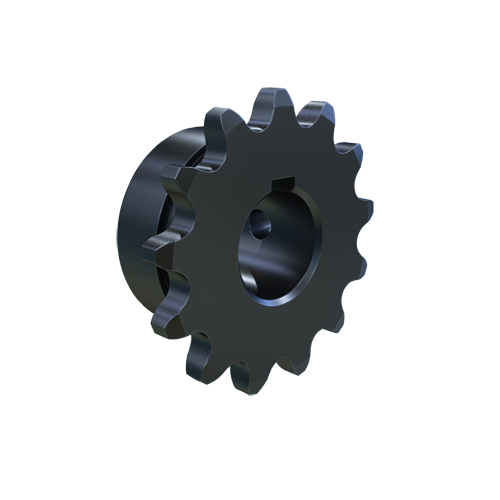

| J | 35BS13 5/8 | 1.567" | 13 | 3/4" | 1 1/4" | 5/8" | 5/8" | 1/4"-20 | 1/4"-20 x 1/4" | €29.88 | |
| K | 35BS13 1/2 | 1.567" | 13 | 3/4" | 1 1/4" | 1/2" | 1/2" | #10-24 | 1/4"-20 x 1/4" | €29.88 | |
| L | 35BS14 1/2 | 1.685" | 14 | 3/4" | 1 1/4" | 1/2" | 1/2" | #10-24 | 1/4"-20 x 1/4" | €29.88 | |
| M | 35BS14 3/4 | 1.685" | 14 | 3/4" | 1 1/4" | 3/4" | 3/4" | 1/4"-20 | 1/4"-20 x 1/4" | €29.88 | |

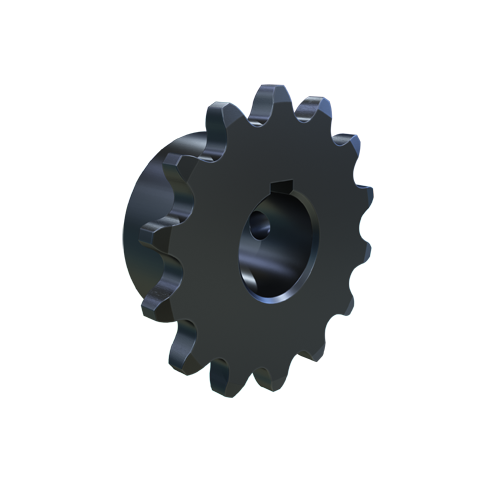

| N | 35BS14 5/8 | 1.685" | 14 | 3/4" | 1 1/4" | 5/8" | 5/8" | 1/4"-20 | 1/4"-20 x 1/4" | €29.88 | |
| O | 35BS15 5/8 | 1.804" | 15 | 3/4" | 1.344" | 5/8" | 5/8" | 1/4"-20 | 1/4"-20 x 1/4" | €30.42 | |
| P | 35BS15 1 | 1.804" | 15 | 3/4" | 1.344" | 1" | 1" | 5/16"-18 | 1/4"-20 x 1/4" | €30.42 | |
| Q | 35BS15 7/8 | 1.804" | 15 | 3/4" | 1.344" | 7/8" | 7/8" | 1/4"-20 | 1/4"-20 x 1/4" | €30.42 | |

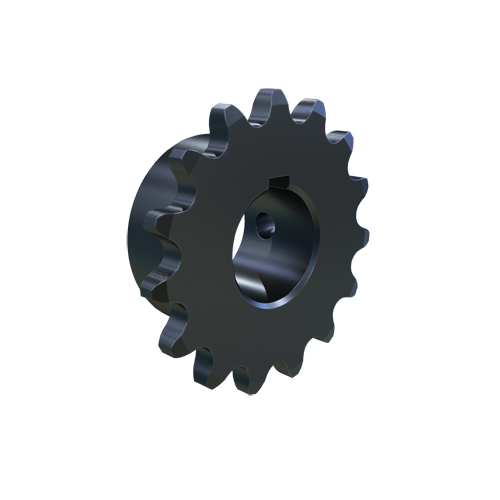

| R | 35BS15 3/4 | 1.804" | 15 | 3/4" | 1.344" | 3/4" | 3/4" | 1/4"-20 | 1/4"-20 x 1/4" | €30.42 | |
| S | 35BS15 1/2 | 1.804" | 15 | 3/4" | 1.344" | 1/2" | 1/2" | #10-24 | 1/4"-20 x 1/4" | €30.42 | |

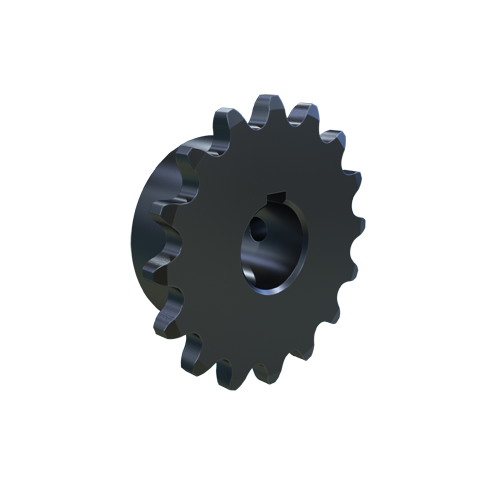

| T | 35BS16 5/8 | 1.922" | 16 | 3/4" | 1.469" | 5/8" | 5/8" | 1/4"-20 | 1/4"-20 x 1/4" | €32.34 | |

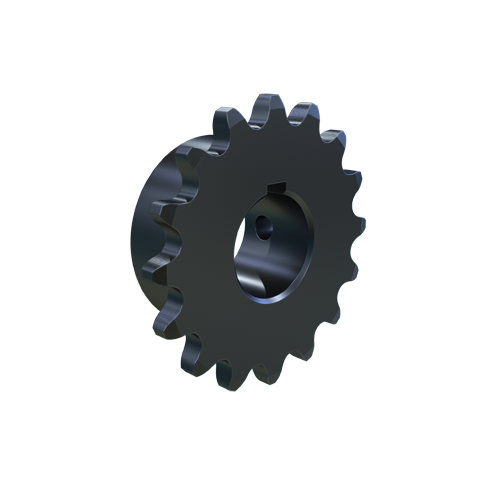

| U | 35BS16 3/4 | 1.922" | 16 | 3/4" | 1.469" | 3/4" | 3/4" | 1/4"-20 | 1/4"-20 x 1/4" | €32.34 | |

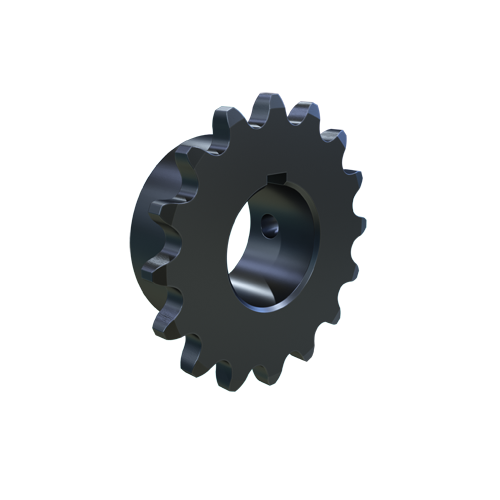

| V | 35BS16 7/8 | 1.922" | 16 | 3/4" | 1.469" | 7/8" | 7/8" | 1/4"-20 | 1/4"-20 x 1/4" | €32.34 | |
| W | 35BS16 1 | 1.922" | 16 | 3/4" | 1.469" | 1" | 1" | 5/16"-18 | 1/4"-20 x 1/4" | €32.34 | |
| X | 35BS16 1/2 | 1.922" | 16 | 3/4" | 1.469" | 1/2" | 1/2" | #10-24 | 1/4"-20 x 1/4" | €32.34 | |

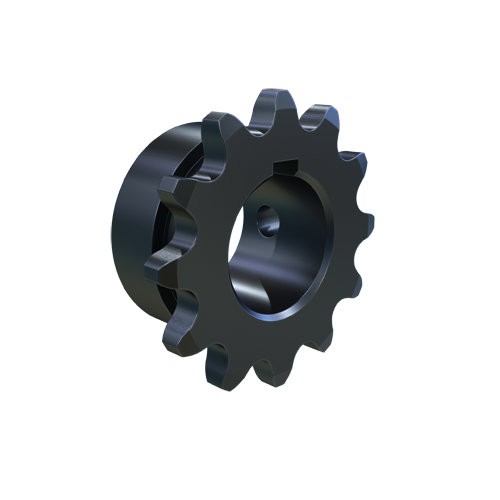

| Y | 35BS12 3/4 | 1.4489" | 12 | 3/4" | 1.219" | 3/4" | 3/4" | 1/4"-20 | 1/4"-20 x 1/4" | €28.78 | |
| Z | 35BS12 5/8 | 1.4489" | 12 | 3/4" | 1.219" | 5/8" | 5/8" | 1/4"-20 | 1/4"-20 x 1/4" | €28.78 | |
| A1 | 35BS12 1/2 | 1.4489" | 12 | 3/4" | 1.219" | 1/2" | 1/2" | #10-24 | 1/4"-20 x 1/4" | €28.78 | |
| B1 | 35BS18 5/8 | 2 4/25" | 18 | 3/4" | 1.719" | 5/8" | 5/8" | 1/4"-20 | 1/4"-20 x 1/4" | €35.37 | |
| C1 | 35BS18 7/8 | 2 4/25" | 18 | 3/4" | 1.719" | 7/8" | 7/8" | 1/4"-20 | 1/4"-20 x 1/4" | €35.37 | |
| D1 | 35BS18 1 | 2 4/25" | 18 | 3/4" | 1.719" | 1" | 1" | 5/16"-18 | 5/16"-18 x 5/16" | €35.37 | |
| E1 | 35BS18 3/4 | 2 4/25" | 18 | 3/4" | 1.719" | 3/4" | 3/4" | 1/4"-20 | 1/4"-20 x 1/4" | €35.37 | |
| F1 | 35BS18 1/2 | 2 4/25" | 18 | 3/4" | 1.719" | 1/2" | 1/2" | #10-24 | 1/4"-20 x 1/4" | €35.37 | |
| G1 | 35BS17 1/2 | 2.041" | 17 | 3/4" | 1.594" | 1/2" | 1/2" | #10-24 | 1/4"-20 x 1/4" | €33.41 | |
| H1 | 35BS17 5/8 | 2.041" | 17 | 3/4" | 1.594" | 5/8" | 5/8" | 1/4"-20 | 1/4"-20 x 1/4" | €33.41 | |
| I1 | 35BS17 3/4 | 2.041" | 17 | 3/4" | 1.594" | 3/4" | 3/4" | 1/4"-20 | 1/4"-20 x 1/4" | €33.41 | |
| J1 | 35BS17 7/8 | 2.041" | 17 | 3/4" | 1.594" | 7/8" | 7/8" | 1/4"-20 | 1/4"-20 x 1/4" | €33.41 | |
| K1 | 35BS17 1 | 2.041" | 17 | 3/4" | 1.594" | 1" | 1" | 5/16"-18 | 1/4"-20 x 1/4" | €33.41 | |

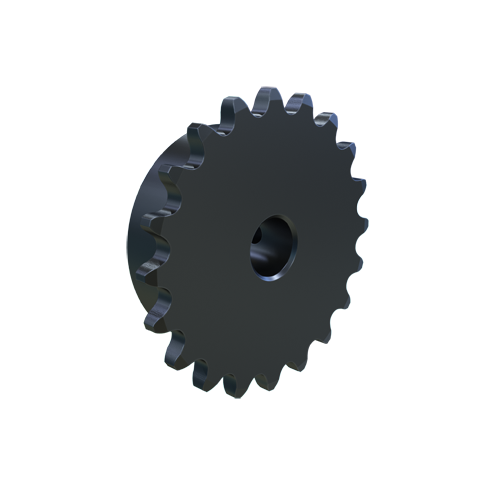

| L1 | 35BS20 1/2 | 2.397" | 20 | 3/4" | 1.938" | 1/2" | 1/2" | #10-24 | 1/4"-20 x 1/4" | €44.40 | |
| M1 | 35BS20 3/4 | 2.397" | 20 | 3/4" | 1.938" | 3/4" | 3/4" | 1/4"-20 | 1/4"-20 x 1/4" | €44.40 | |
| N1 | 35BS20 1 | 2.397" | 20 | 3/4" | 1.938" | 1" | 1" | 5/16"-18 | 5/16"-18 x 5/16" | €44.40 | |
| O1 | 35BS20 5/8 | 2.397" | 20 | 3/4" | 1.938" | 5/8" | 5/8" | 1/4"-20 | 1/4"-20 x 1/4" | €44.40 | |
| P1 | 35BS21 1 | 2.516" | 21 | 7/8" | 2" | 1" | 1" | 5/16"-18 | 5/16"-18 x 5/16" | €49.32 | |
| Q1 | 35BS21 5/8 | 2.516" | 21 | 7/8" | 2" | 5/8" | 5/8" | 1/4"-20 | 1/4"-20 x 1/4" | €49.32 | |
| R1 | 35BS21 1/2 | 2.516" | 21 | 7/8" | 2" | 1/2" | 1/2" | #10-24 | 1/4"-20 x 1/4" | €49.32 | |
| S1 | 35BS21 3/4 | 2.516" | 21 | 7/8" | 2" | 3/4" | 3/4" | 1/4"-20 | 1/4"-20 x 1/4" | €49.32 | |
| T1 | 35BS22 5/8 | 2.635" | 22 | 7/8" | 2" | 5/8" | 5/8" | 1/4"-20 | 1/4"-20 x 1/4" | €53.71 | |

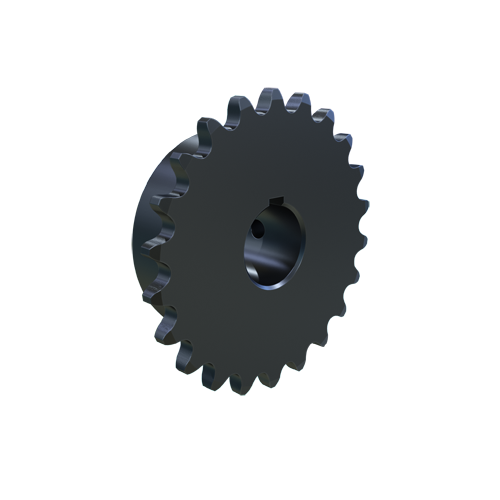

| U1 | 35BS22 3/4 | 2.635" | 22 | 7/8" | 2" | 3/4" | 3/4" | 1/4"-20 | 1/4"-20 x 1/4" | €53.71 | |
| V1 | 35BS22 1 | 2.635" | 22 | 7/8" | 2" | 1" | 1" | 5/16"-18 | 5/16"-18 x 5/16" | €53.71 | |

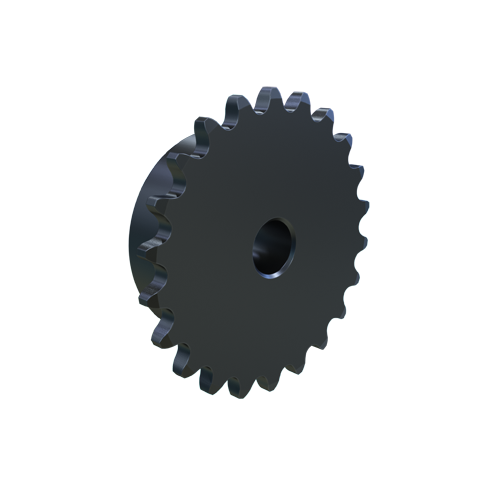

| W1 | 35BS22 1/2 | 2.635" | 22 | 7/8" | 2" | 1/2" | 1/2" | #10-24 | 1/4"-20 x 1/4" | €53.71 | |
| X1 | 35BS23 5/8 | 2.754" | 23 | 7/8" | 2" | 5/8" | 5/8" | 1/4"-20 | 1/4"-20 x 1/4" | €57.27 | |
| Y1 | 35BS23 3/4 | 2.754" | 23 | 7/8" | 2" | 3/4" | 3/4" | 1/4"-20 | 1/4"-20 x 1/4" | €57.27 | |
| Z1 | 35BS23 1/2 | 2.754" | 23 | 7/8" | 2" | 1/2" | 1/2" | #10-24 | 1/4"-20 x 1/4" | €57.27 | |

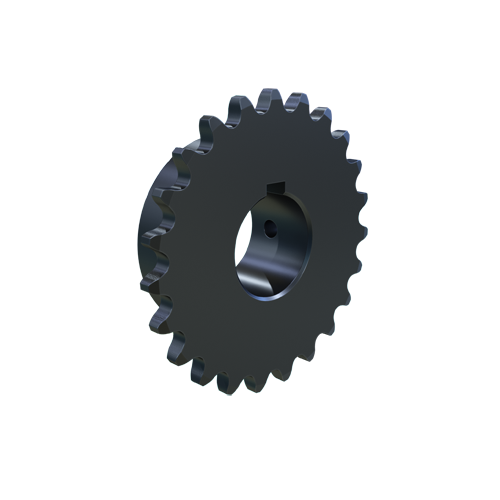

| A2 | 35BS23 1 | 2.754" | 23 | 7/8" | 2" | 1" | 1" | 5/16"-18 | 5/16"-18 x 5/16" | €57.27 | |

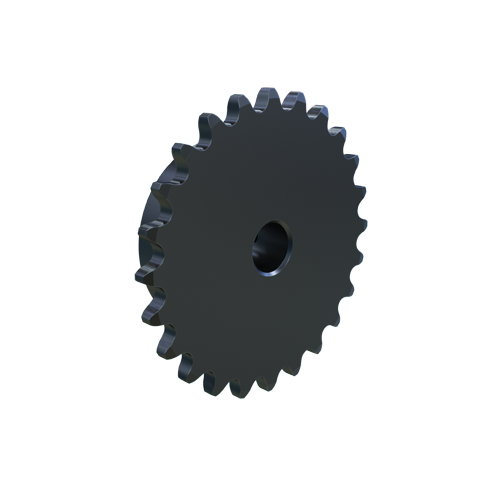

| B2 | 35BS24 1/2 | 2.873" | 24 | 7/8" | 2" | 1/2" | 1/2" | #10-24 | 1/4"-20 x 1/4" | €60.84 | |
| C2 | 35BS24 3/4 | 2.873" | 24 | 7/8" | 2" | 3/4" | 3/4" | 1/4"-20 | 1/4"-20 x 1/4" | €60.84 | |
| D2 | 35BS24 1 | 2.873" | 24 | 7/8" | 2" | 1" | 1" | 5/16"-18 | 5/16"-18 x 5/16" | €60.84 | |
| E2 | 35BS24 5/8 | 2.873" | 24 | 7/8" | 2" | 5/8" | 5/8" | 1/4"-20 | 1/4"-20 x 1/4" | €60.84 | |
| F2 | 35BS25 1/2 | 2.992" | 25 | 7/8" | 2" | 1/2" | 1/2" | #10-24 | 1/4"-20 x 1/4" | €65.22 | |
| G2 | 35BS25 1 | 2.992" | 25 | 7/8" | 2" | 1" | 1" | 5/16"-18 | 5/16"-18 x 5/16" | €65.22 | |
| H2 | 35BS25 3/4 | 2.992" | 25 | 7/8" | 2" | 3/4" | 3/4" | 1/4"-20 | 1/4"-20 x 1/4" | €65.22 | |
| I2 | 35BS25 5/8 | 2.992" | 25 | 7/8" | 2" | 5/8" | 5/8" | 1/4"-20 | 1/4"-20 x 1/4" | €65.22 |
