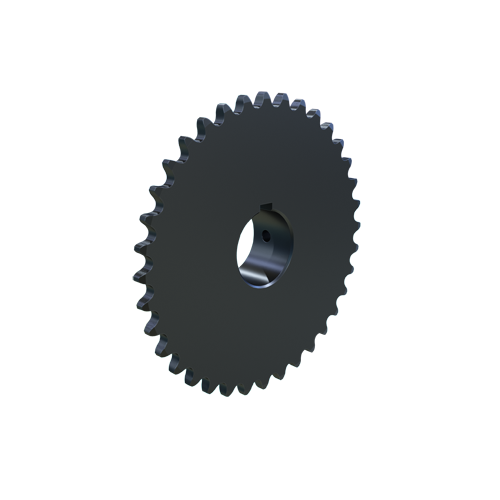

MARTIN SPROCKET 35BS36 1 1/8 Roller Chain Sprocket, Bore To Size, 1.125 Inch Bore, 4.511 Inch Outside Dia. Steel
Item: AJ9KHBModel: 35BS36 1 1/8
7 In Stock
4.511"
1.125"
Ships within 2 days via
€94.59 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Diameter | 1 1/8" |
| Bore Type | Finished Bore |
| Chain Number | 35 |
| Chain Pitch | 3/8" |
| Construction | Solid |
| Construction Type | Solid |
| Finished Bore Size | 1 1/8" |
| For Chain Number | 35 |
| For Chain Pitch | 3/8" |
| Hub Configuration | B |
| Hub Diameter | 2 1/4" |
| Hub Outside Dia. | 2 1/4" |
| Individually Packaged | Yes |
| Keyway Size | 1/4" x 1/8" |
| Length Through Bore | 7/8" |
| Length Thru Bore | 7/8" |
| Material | Steel |
| No. Of Teeth | 36 |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 36 |
| Outside Dia. | 4.511" |
| Pitch | 3/8" |
| Pitch Dia. | 4.3026" |
| Pitch Diameter | 4.303" |
| Set Screw Location | (1) Over Keyway And (1) At 90° |
| Set Screw Size | 5/16"-18 |
| Set Screw Thread Type | Coarse |
| Single Strand Tooth Thickness | 0.168" |
| Storage Dimension Height | 15/16" |
| Storage Dimension Length | 4 3/4" |
| Storage Dimension Width | 4 3/4" |
Shipping Info:
| Ship weight (kg) | 0.63 |
| Ship height (cm) | 2.38 |
| Ship length (cm) | 11.46 |
| Ship width (cm) | 11.46 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Length Through Bore | Set Screw Size | Bore Size | For Chain Pitch | For Chain Number | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
35BS9 3/8 | 9 | 1.0964" | 1.255" | 3/4" | #10-24 | 3/8" | 3/8" | 35 | €26.31 | |
 |
35BS10 3/8 | 10 | 1.2135" | 1.379" | 3/4" | #10-24 | 3/8" | 3/8" | 35 | €26.85 | |
 |
35BS10 1/2 | 10 | 1.2135" | 1.379" | 3/4" | #10-24 | 1/2" | 3/8" | 35 | €26.85 | |
 |
35BS10 5/8 | 10 | 1.2135" | 1.379" | 3/4" | 1/4"-20 | - | 3/8" | 35 | €26.85 | |
 |
35BS11 3/8 | 11 | 1.331" | 1.502" | 3/4" | #10-24 | 3/8" | 3/8" | 35 | €27.97 | |
 |
35BS11 1/2 | 11 | 1.331" | 1.502" | 3/4" | #10-24 | 1/2" | 3/8" | 35 | €27.97 | |
 |
35BS11 5/8 | 11 | 1.331" | 1.502" | 3/4" | 1/4"-20 | 5/8" | 3/8" | 35 | €27.97 |
