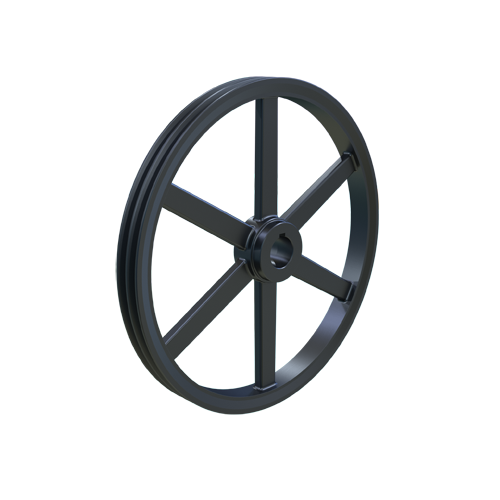

MARTIN SPROCKET 2AK154 1 7/16 Sheave, 1.438 Inch Bore, 15.250 Inch Outside Dia., 2 Groove, Cast Iron
15.250"
1.438"
Get it by Tuesday, Sep 1
€321.95 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Sheave |
| 3l Belt Pitch Dia. | 14.66" |
| 4la Or A Belt Pitch Dia. | 15" |
| Bore Dia. | 1 7/16" |
| Bore Type | Finished |
| Bushing Type | H |
| Face Width | 1 3/8" |
| Hub Projection | 0.344" |
| Length | 1 23/32" |
| Material | Cast Iron |
| No. Of Grooves | 2 |
| Series | 2AK Series |
| Suitable For Use With | A, 3L, 4L Cross Section Belts |
| Type | Arm, Spoke Bored to Size Type C |
Shipping Info:
| Ship weight (kg) | 6.44 |
| Ship height (cm) | 3.49 |
| Ship length (cm) | 38.74 |
| Ship width (cm) | 38.74 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Bore Dia. | Material | Face Width | Price | |
|---|---|---|---|---|---|---|---|
 |
2AK124 1 3/16 | 12 1/4" | 1.188" | Cast Iron | 1 3/8" | €224.40 | |
 |
2AK20 5/8 | 2" | 5/8" | Steel | 1 3/8" | €49.17 | |
 |
2AK21 1/2 | 2.15" | 1/2" | Steel | 1 3/8" | €49.17 | |
 |
2AK21 5/8 | 2.15" | 5/8" | Steel | 1 3/8" | €49.17 | |
 |
2AK22 1 | 2 1/4" | 1" | Steel | 1 3/8" | €49.17 | |
 |
2AK22 1/2 | 2 1/4" | 1/2" | Steel | 1 3/8" | €49.17 | |
 |
2AK22 3/4 | 2 1/4" | 3/4" | Steel | 1 3/8" | €49.17 |
