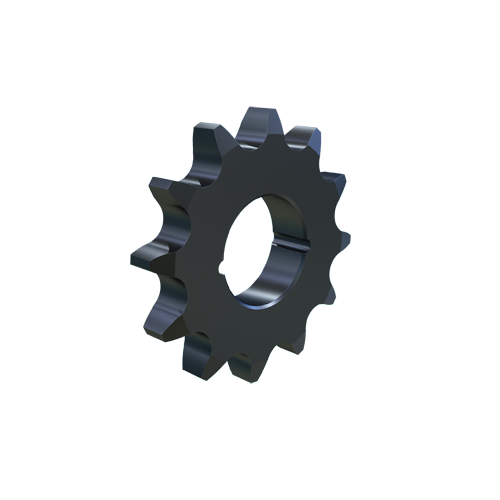

MARTIN SPROCKET 24BTB12H Sprocket, 24B-1 Chain, 12 Teeth, 147.210 mm Pitch Dia., 169.430 mm O.D., Steel
Item: BA7BZXModel: 24BTB12H
7 In Stock
169.430 mm
Ships within 2 days via
€632.14 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 50.8 mm |
| Bushing Type | 2012 Taper |
| Chain Size | #24B-1 |
| Hub Dia. | 91 mm |
| Length Through Bore | 31.75 mm |
| Material | Steel |
| No. Of Teeth | 12 |
| Pitch | 38.1 mm |
| Pitch Dia. | 147.21 mm |
| Type | Type B Single Strand Solid Stock Bore |
Shipping Info:
| Ship weight (kg) | 2.25 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 16.94 |
| Ship width (cm) | 16.94 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Hub Dia. | Bore Dia. | Bushing Type | Material | Pitch | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
24BTB15H | 183.25 mm | 15 | 44.45 mm | 108 mm | 63.5 mm | 2517 Taper | Steel | 38.1 mm | €804.55 | |
 |
24BTB16H | 195.29 mm | 16 | 50.8 mm | 133 mm | 76.2 mm | 3020 Taper | Steel | 38.1 mm | €827.02 | |
 |
24BTB17H | 207.35 mm | 17 | 50.8 mm | 132 mm | 76.2 mm | 3020 Taper | Steel | 38.1 mm | €808.49 | |
 |
24BTB19H | 231.48 mm | 19 | 50.8 mm | 132 mm | 76.2 mm | 3020 Taper | Steel | 38.1 mm | €817.41 | |
 |
24BTB20H | 243.55 mm | 20 | 50.8 mm | 133 mm | 76.2 mm | 3020 Taper | Steel | 38.1 mm | €852.09 | |
 |
24BTB21H | 255.63 mm | 21 | 50.8 mm | 133 mm | 76.2 mm | 3020 Taper | Steel | 38.1 mm | €890.77 | |
 |
24BTB28H | 340.29 mm | 28 | 50.8 mm | 133 mm | 76.2 mm | 3020 Taper | Steel | 38.1 mm | €1,109.86 |
