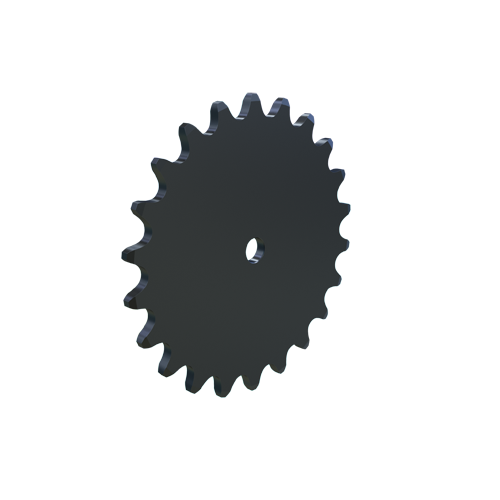

MARTIN SPROCKET 2082A22 Sprocket, 2082 Chain, 22 Teeth, 14.053 Inch Pitch Dia., 15.110 Inch O.D., Steel
15.110"
Get it by Monday, Aug 24
€319.48 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 1 1/4" to 4 3/4" |
| Bore Type | Finished Bore |
| Chain Number | 2082 |
| Chain Pitch | 2" |
| Chain Size | #2082 |
| Construction | Solid |
| Construction Type | Solid |
| Finished Bore Size | 1 1/4" |
| For Chain Number | 2082 |
| For Chain Pitch | 2" |
| Hub Configuration | A |
| Hub Dia. | 4 3/4" |
| Individually Packaged | No |
| Length Through Bore | 0.551" , 0.575" |
| Material | Steel |
| Min. Bore Size | 1 1/4" |
| No. Of Chain Rows | 1 |
| No. Of Teeth | 22 |
| Outside Dia. | 15.11" |
| Pitch | 2" |
| Pitch Dia. | 14.053" , 14.0533" |
| Single Strand Tooth Thickness | 0.575" |
| Storage Dimension Height | 0.575" |
| Storage Dimension Length | 15.11" |
| Storage Dimension Width | 15.11" |
| Type | Type A Single Strand Double Pitch Reboreable |
Shipping Info:
| Ship weight (kg) | 10.44 |
| Ship height (cm) | 1.46 |
| Ship length (cm) | 38.38 |
| Ship width (cm) | 38.38 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Hub Dia. | Bore Dia. | Storage Dimension Length | Storage Dimension Width | Min. Bore Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2082A11 | 3.6993" | 11 | 0.575" | 4 1/4" | 15/16" to 4 1/4" | 4.01" | 4.01" | 15/16" | €144.74 | |
 |
2082A12 | 7.7274" | 12 | 0.575" | 4 1/4" | 15/16" to 4 1/4" | 8.66" | 8.66" | 15/16" | €155.83 | |
|
2082A14 | 8.988" | 14 | 0.575" | 4 3/4" | 1 3/16" to 4 3/4" | 9 24/25" | 9 24/25" | 1 3/16" | €182.63 | |
 |
2082A16 | 10.252" | 16 | 0.575" | 4 3/4" | 1 3/16" to 4 3/4" | 11 1/4" | 11 1/4" | 1 3/16" | €189.87 | |
|
2082A18 | 11.518" | 18 | 0.575" | 4 3/4" | 1 3/16" to 4 3/4" | 12.54" | 12.54" | 1 3/16" | €217.66 | |
 |
2082A19 | 12.1511" | 19 | 0.575" | 4 3/4" | 1 3/16" to 4 3/4" | 13.19" | 13.19" | 1 3/16" | €249.49 | |
 |
2082A20 | 12.7849" | 20 | 0.575" | 4 3/4" | 1 3/16" to 4 3/4" | 13.83" | 13.83" | 1 3/16" | €260.86 |
