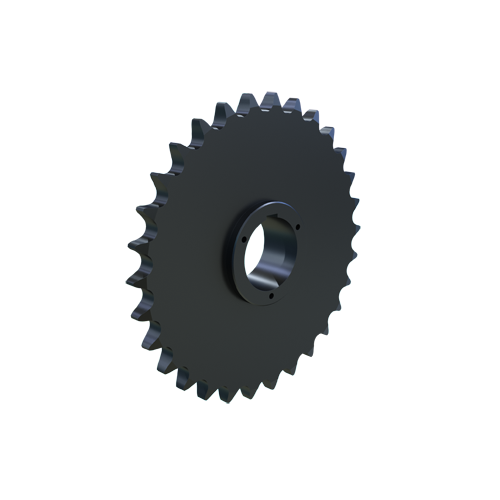

MARTIN SPROCKET 200U30 Sprocket, 200 Chain, 30 Teeth, 23.917 Inch Pitch Dia., 25.286 Inch O.D., Steel
25.286"
Get it by Thursday, Aug 27
€3,197.83 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 2 3/8" to 5 1/2" |
| Bore Type | Bushed |
| Bushing Part Number | U0 |
| Bushing Size | U0 |
| Bushing Type | MST U0 |
| Chain Number | 200 |
| Chain Pitch | 2 1/2" |
| Chain Size | #200 |
| Construction | Welded |
| Construction Type | Welded |
| For Chain Number | 200 |
| For Chain Pitch | 2 1/2" |
| Hub Configuration | C |
| Hub Dia. | 8 1/2" |
| Hub Outside Dia. | 8 1/2" |
| Individually Packaged | No |
| Key Way Size | 1 1/4" |
| Keyway Width | 1 1/4" |
| Length Through Bore | 3 3/4" |
| Length Thru Bore | 3 3/4" |
| Material | Steel |
| Max. Bore Size | 5 1/2" |
| Min. Bore Size | 2 3/8" |
| No. Of Chain Rows | 1 |
| No. Of Teeth | 30 |
| Pitch | 2 1/2" |
| Pitch Dia. | 23.9169" |
| Single Strand Tooth Thickness | 1.389" |
| Storage Dimension Height | 3 3/4" |
| Storage Dimension Length | 25.286" |
| Storage Dimension Width | 25.286" |
| Type | Type 6 Single Strand Welded Bushed |
Shipping Info:
| Ship weight (kg) | 77.85 |
| Ship height (cm) | 9.53 |
| Ship length (cm) | 64.24 |
| Ship width (cm) | 64.24 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Hub Dia. | Bore Dia. | Storage Dimension Length | Storage Dimension Width | Storage Dimension Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
200R12 | 9.6593" | 12 | 4" | 5 1/2" | 1 3/8" to 3 3/8" | 10.83" | 10.83" | 4" | €1,112.46 | |
 |
200S16 | 12.8146" | 16 | 5 11/16" | 6 1/2" | 1.875" to 4.188" | 14.068" | 14.068" | 5.69" | €1,317.06 | |
 |
200S17 | 13.6055" | 17 | 5 11/16" | 6 3/4" | 1.875" to 4.188" | 14.874" | 14.874" | 5.69" | €1,412.20 | |
 |
200U22 | 17.5667" | 22 | 3 3/4" | 8 1/2" | 2 3/8" to 5 1/2" | 18.888" | 18.888" | 3 3/4" | €1,930.44 | |
 |
200U25 | 19.9468" | 25 | 3 3/4" | 8 1/2" | 2 3/8" to 5 1/2" | 21.29" | 21.29" | 3 3/4" | €2,765.21 | |
 |
200U26 | 20.7406" | 26 | 3 3/4" | 8 1/2" | 2 3/8" to 5 1/2" | 22.089" | 22.089" | 3 3/4" | €2,866.88 | |
 |
200U45 | 35.839" | 45 | 5 5/8" | 8 1/2" | 2 3/8" to 5 1/2" | 37.252" | 37.252" | 5.63" | €4,718.75 |
