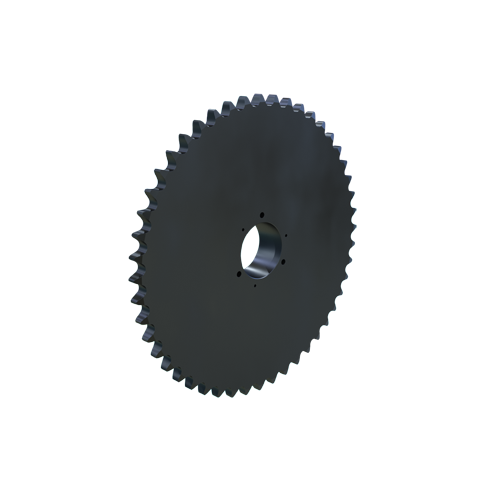

MARTIN SPROCKET 120F48 Sprocket, 120 Chain, 48 Teeth, 22.935 Inch Pitch Dia., 23.786 Inch O.D., Steel
23.786"
Get it by Monday, Aug 24
€1,120.85 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Type | Bushed |
| Bushing Part Number | F |
| Bushing Size | F |
| Bushing Type | Type F QD |
| Chain Number | 120 |
| Chain Pitch | 1 1/2" |
| Chain Size | #120 |
| Construction | Welded With Lightening Holes |
| Construction Type | Welded With Lightening Holes |
| For Chain Number | 120 |
| For Chain Pitch | 1 1/2" |
| Hub Configuration | B |
| Hub Dia. | 7" |
| Hub Outside Dia. | 7" |
| Individually Packaged | No |
| Length Through Bore | 3 5/8" |
| Length Thru Bore | 2 1/2" |
| Material | Steel |
| Max. Bore Size | 4" |
| Min. Bore Size | 1" |
| No. Of Chain Rows | 1 |
| No. Of Teeth | 48 |
| Outside Dia. | 23.786" |
| Pitch | 1 1/2" |
| Pitch Dia. | 22.9347" , 22.935" |
| Single Strand Tooth Thickness | 0.924" |
| Storage Dimension Height | 2 1/2" |
| Storage Dimension Length | 23.786" |
| Storage Dimension Width | 23.786" |
| Type | QD Bushed Type C |
Shipping Info:
| Ship weight (kg) | 41.4 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 60.43 |
| Ship width (cm) | 60.43 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Hub Dia. | Storage Dimension Length | Storage Dimension Width | Storage Dimension Height | Length Thru Bore | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
120SF12 | 5.796" | 12 | 2 1/16" | 4 3/8" | 6.498" | 6.498" | 1 1/4" | 1 1/4" | €346.28 | |
|
120SF13 | 6.2679" | 13 | 2 1/16" | 4 3/4" | 6.986" | 6.986" | 1 1/4" | 1 1/4" | €395.38 | |
|
120SF14 | 6.741" | 14 | 2 1/4" | 4 3/4" | 7.472" | 7.472" | 1 1/4" | 1 1/4" | €435.08 | |
 |
120SF15 | 7.215" | 15 | 2 1/16" | 4 3/4" | 7.957" | 7.957" | 1 1/4" | 1 1/4" | €483.64 | |
 |
120E16 | - | - | - | - | - | - | - | - | €488.09 | |
 |
120E17 | - | - | - | - | - | - | - | - | €529.75 | |
|
120E18 | - | - | - | - | - | - | - | - | €461.00 |
