Why are some thread inserts larger in diameter than the tapped hole before installation?

Selected thread inserts have a slightly larger diameter than the diameter of the tapped hole before installation, as the installation tool decreases the leading coil's diameter when it applies torque to the insert's prong / tang for easy installation. Once the threaded insert is installed, it acts like a spring and expands outward onto the material for strong anchoring.

How to choose the length of a helical insert?

The helical insert length should be at least as long as the desired screw diameter. Users may also choose inserts having longer lengths for increased strength. The exact insert length can vary depending upon the application & the material being installed into the insert. Materials like steel do not need long inserts. In contrast, for soft materials like aluminium, a longer insert is preferred.

How to install a helical thread insert?

Drill a hole according to the length of the insert / screw / bolt using the suggested drill bit size. Thread the drilled hole using a tap (sold separately), then wind the insert into the hole using an installation tool. Use a prong break-off tool or punch to remove the prong and allow free passage of the fastener.

How to install a key-locking thread insert?

Drill a hole according to the required application. Tap the drilled hole, then wind the insert into the hole. Drive the key into the material using the installation tool & hammer.

Can thread inserts be removed once installed?

Yes, some thread inserts can be removed using removal tools that attach to them & unwind them in the direction opposite to that used during installation.

Thread Inserts

VOLKEL -

Thread Inserts, Stainless Steel, UNC

A

Style	Model	MPN	Price
A	08200	08200	€0.44	RFQ
A	08201	08201	€0.16
A	08202	08202	€0.16
A	08203	08203	€0.12
A	08204	08204	€0.12
A	08205	08205	€0.16
A	08206	08206	€0.16
A	08207	08207	€0.16
A	08208	08208	€0.22
A	08209	08209	€0.34
A	08210	08210	€0.42
A	08211	08211	€0.45
A	08212	08212	€1.49
A	08214	08214	€1.36
A	08216	08216	€1.62
A	08218	08218	€2.16
A	08219	08219	€2.43
A	08300	08300	€0.50	RFQ
A	08301	08301	€0.15
A	08302	08302	€0.17
A	08303	08303	€0.14
A	08304	08304	€0.14
A	08305	08305	€0.16
A	08306	08306	€0.18
A	08307	08307	€0.18

Style	Model	MPN	Price
A	08225	08225	€0.16
A	08226	08226	€0.22
A	08227	08227	€0.32
A	08228	08228	€0.42
A	08229	08229	€0.42
A	08230	08230	€1.03
A	08231	08231	€1.03
A	08233	08233	€1.79
A	08235	08235	€2.47
A	08237	08237	€2.76
A	08290	08290	€0.36	RFQ
A	08291	08291	€0.36
A	08292	08292	€0.36
A	08293	08293	€0.16
A	08325	08325	€0.17
A	08326	08326	€0.23
A	08327	08327	€0.36
A	08328	08328	€0.50
A	08329	08329	€0.50
A	08330	08330	€1.08
A	08331	08331	€1.08
A	08333	08333	€2.48
A	08335	08335	€3.51
A	08337	08337	€3.89
A	08390	08390	€0.42

Style	Model	MPN	Price
A	44200	44200	€6.31
A	44201	44201	€3.66
A	44202	44202	€3.74
A	44203	44203	€3.35
A	44204	44204	€3.35
A	44205	44205	€3.66
A	44206	44206	€3.74
A	44207	44207	€3.74
A	44208	44208	€4.29
A	44209	44209	€3.90
A	44210	44210	€4.09
A	44211	44211	€4.25
A	44212	44212	€9.46
A	44213	44213	€8.80
A	44216	44216	€10.17
A	44218	44218	€12.82
A	44219	44219	€14.18
A	44300	44300	€7.01
A	44301	44301	€3.58
A	44302	44302	€3.90
A	44303	44303	€3.51
A	44304	44304	€3.51
A	44305	44305	€3.66
A	44306	44306	€3.97
A	44307	44307	€3.97

Style	Model	Thread Size	Overall Length	Drill Size	Thread Type	Display Qty	Finish	Material	Price	Pkg. Qty.
A	83100	#2-56	-	3/32"	-	-	-	Stainless Steel	-	12	RFQ
A	83102	#3-48	-	#36	-	-	-	Stainless Steel	-	12	RFQ
A	83103	#3-56	-	#37	-	-	-	Stainless Steel	-	12	RFQ
A	83104	#4-40	-	#31	-	-	-	Stainless Steel	-	12	RFQ
A	83105	#4-48	-	#31	-	-	-	Stainless Steel	-	12	RFQ
A	83106	#5-40	-	#29	-	-	-	Stainless Steel	-	12	RFQ
B	83636	#6-32	1 1/2"	1 1/32"	BSF	4	Plain	Stainless Steel	€71.13	4
A	83108	#6-32	-	#25	-	-	-	Stainless Steel	-	12	RFQ
A	83109	#6-40	-	#25	-	-	-	Stainless Steel	-	12	RFQ
A	83110	#8-32	-	11/64"	-	-	-	Stainless Steel	-	12	RFQ
A	83111	#8-36	-	#17	-	-	-	Stainless Steel	-	12	RFQ
A	83112	#10-24	-	13/64"	-	-	-	Stainless Steel	-	12	RFQ
A	83113	#10-32	-	13/64"	-	-	-	Stainless Steel	-	12	RFQ
A	83114	#12-24	-	15/64"	-	-	-	Stainless Steel	-	12	RFQ
A	83115	#12-28	-	15/64"	-	-	-	Stainless Steel	-	12	RFQ
A	83144	1 1/2"-6	-	1 17/32"	-	-	-	Stainless Steel	-	1	RFQ
A	83145	1 1/2"-12	-	1 17/32"	-	-	-	Stainless Steel	-	1	RFQ
A	83140	1 1/4"-7	-	1 9/32"	-	-	-	Stainless Steel	-	1	RFQ
A	83141	1 1/4"-12	-	1 9/32"	-	-	-	Stainless Steel	-	1	RFQ
A	83138	1 1/8"-7	-	1 5/32"	-	-	-	Stainless Steel	-	1	RFQ
A	83139	1 1/8"-12	-	1 5/32"	-	-	-	Stainless Steel	-	1	RFQ
A	83142	1 3/8"-6	-	1 13/32"	-	-	-	Stainless Steel	-	1	RFQ
A	83143	1 3/8"-12	-	1 13/32"	-	-	-	Stainless Steel	-	1	RFQ
B	83735	1"-8	1 1/2"	1 1/32"	BSW	4	Plain	Stainless Steel	€81.55	4
A	83135	1"-8	-	1 1/32"	-	-	-	Stainless Steel	-	1	RFQ

Style	Model	MPN	Price

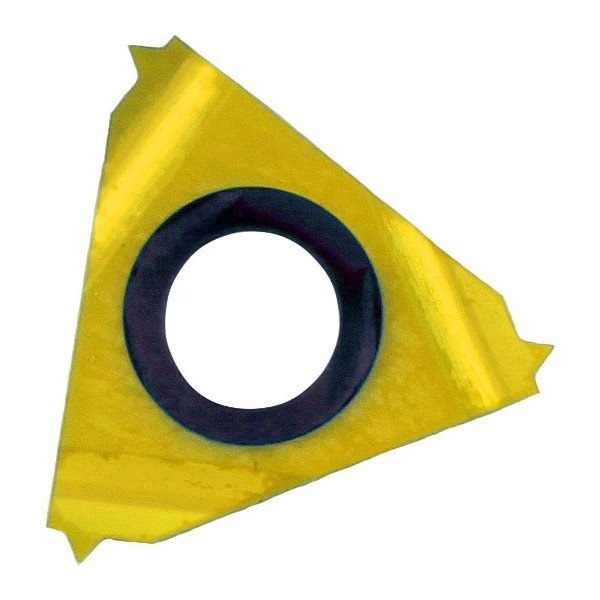

A	37-1300	37-1300	€32.27
A	37-1308	37-1308	€31.97
A	37-1312	37-1312	€33.04
A	37-1316	37-1316	€33.04
A	37-1320	37-1320	€33.18
A	37-1324	37-1324	€33.04
A	37-1328	37-1328	€33.04
A	37-1332	37-1332	€31.97
A	37-1336	37-1336	€33.04
A	37-1340	37-1340	€33.04
A	37-1344	37-1344	€33.04
A	37-1348	37-1348	€34.11
A	37-1366	37-1366	€29.22
A	37-1368	37-1368	€33.04
A	37-1370	37-1370	€30.29
A	37-1372	37-1372	€35.16
A	37-1374	37-1374	€30.29
A	37-1376	37-1376	€33.04
A	37-1378	37-1378	€29.22
A	37-1380	37-1380	€31.97
A	37-1382	37-1382	€30.29
A	37-1383	37-1383	€29.22
A	37-1384	37-1384	€33.04
A	37-1385	37-1385	€32.27
A	37-1386	37-1386	€31.51

Style	Model	Min. Material Thickness	Insert Dia.	Max. Hole Dia.	Price	Pkg. Qty.

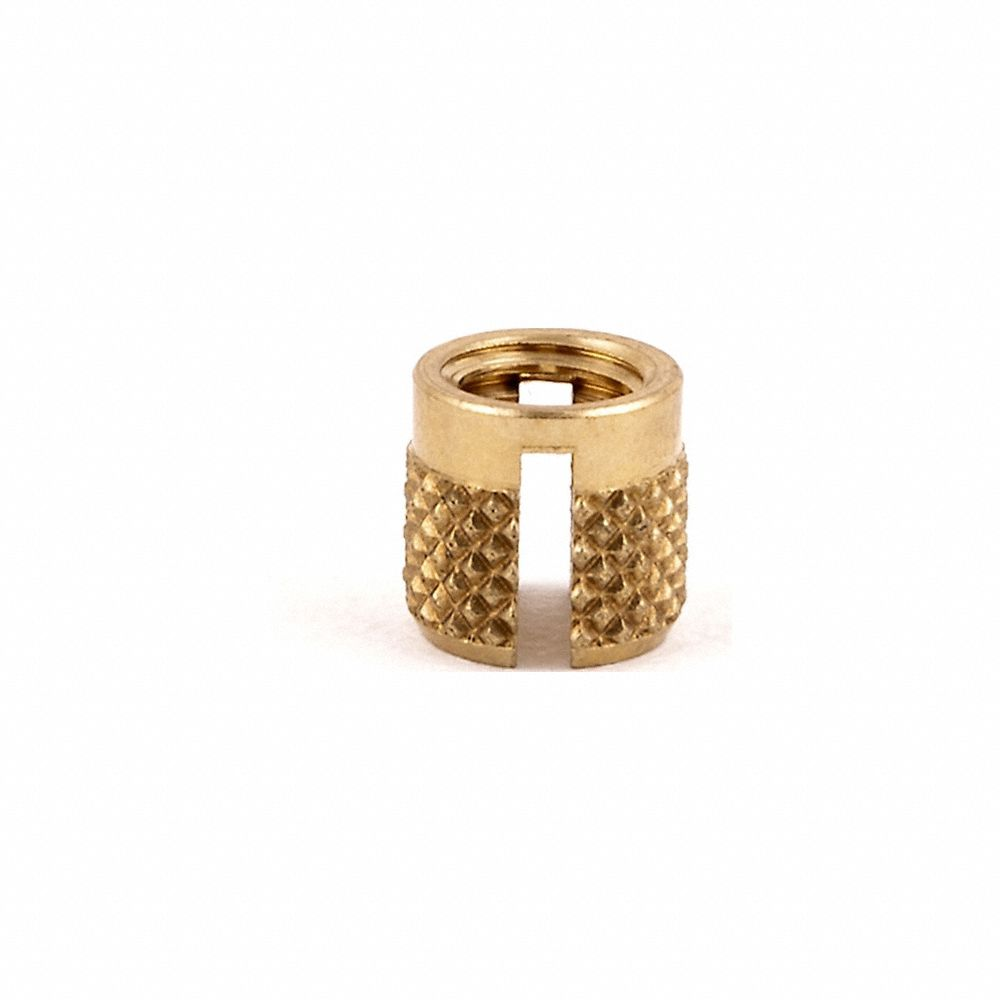

A	240008BR250PK100	-	-	-	€39.44	100
B	240332BR250PK25	-	-	-	€9.64	25

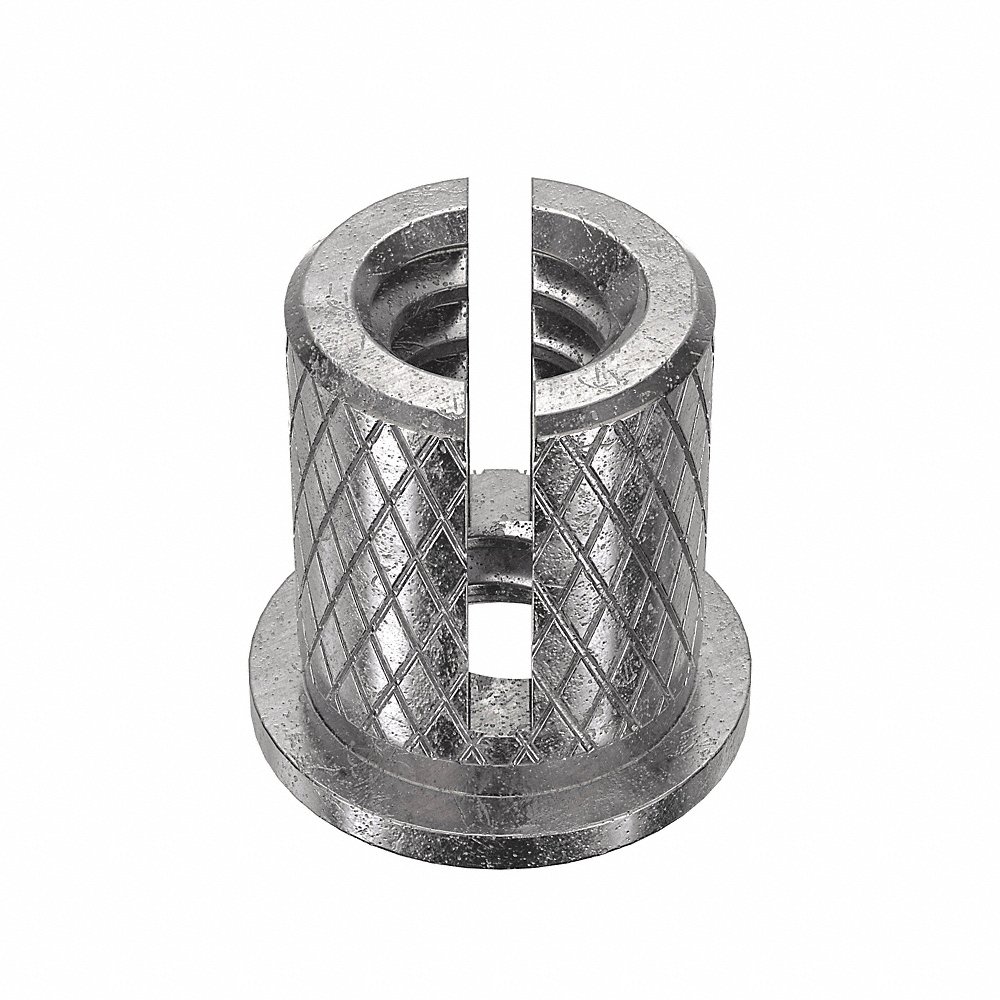

C	260M10ALPK10	-	-	-	€23.21	10
C	2606ALPK10	-	-	-	€23.21	10

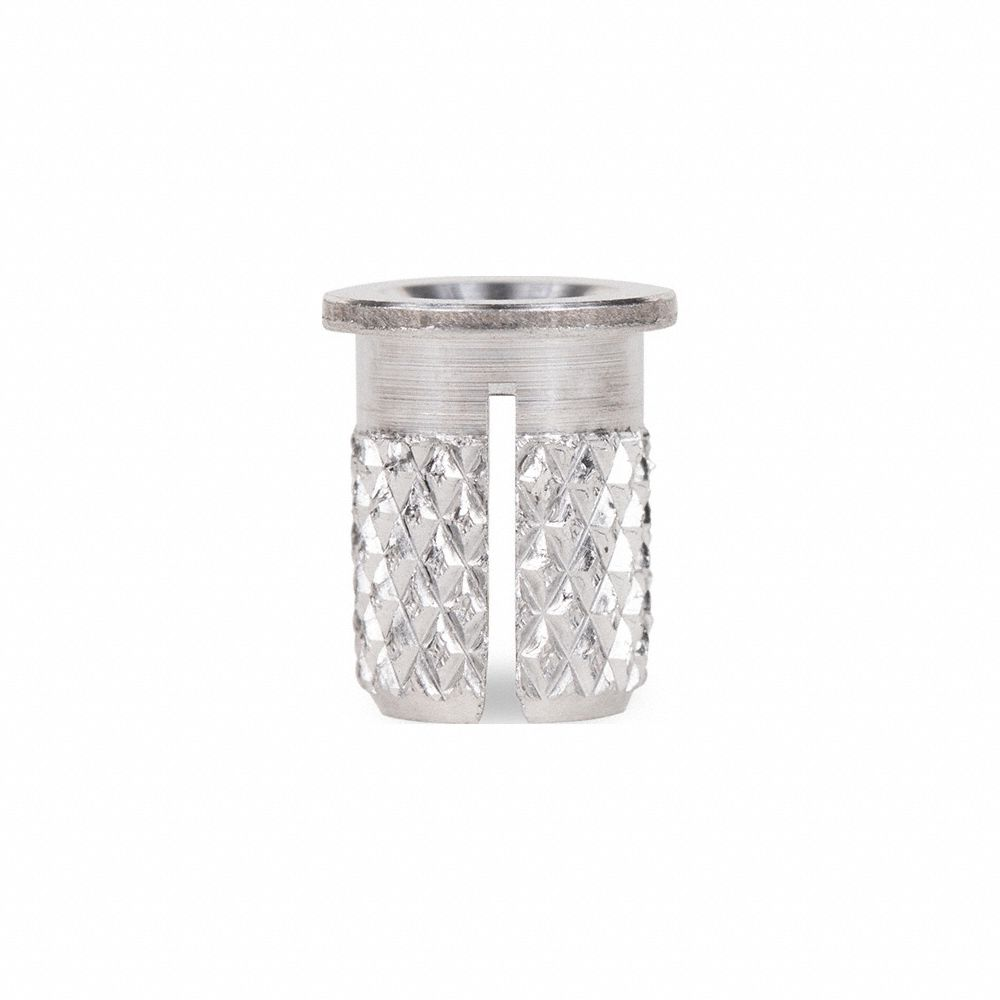

D	2603ALPK10	-	-	-	€13.04	10

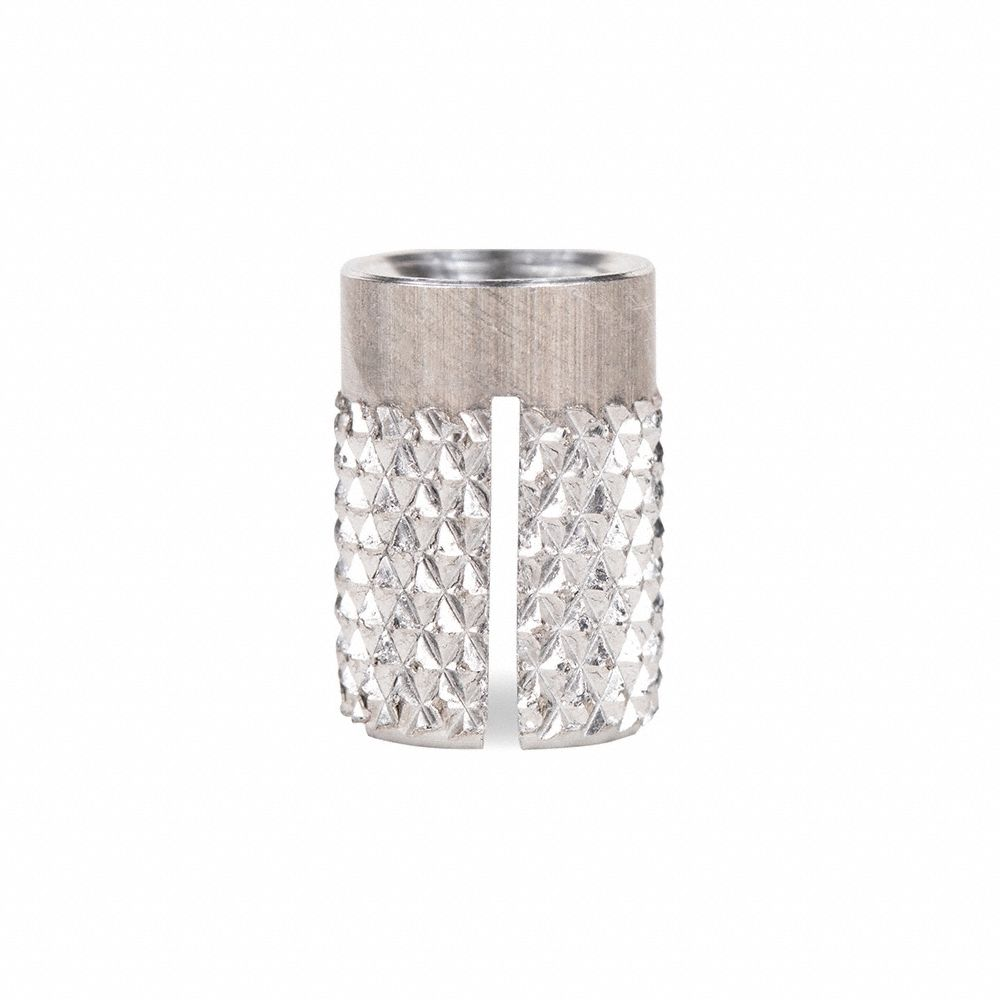

E	240M8ALPK10	-	-	9.525 mm	€10.42	10

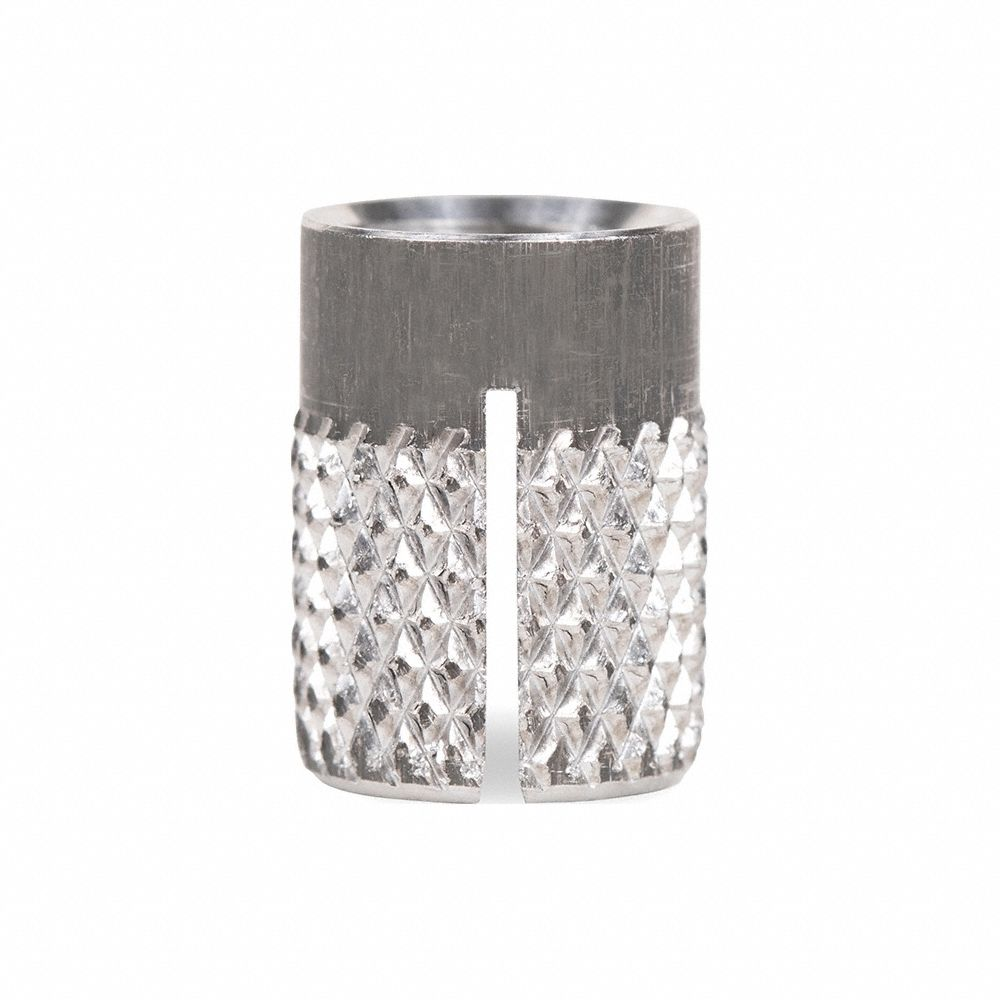

F	240M10ALPK10	-	-	-	€13.36	10
E	2405ALPK10	-	-	-	€10.42	10

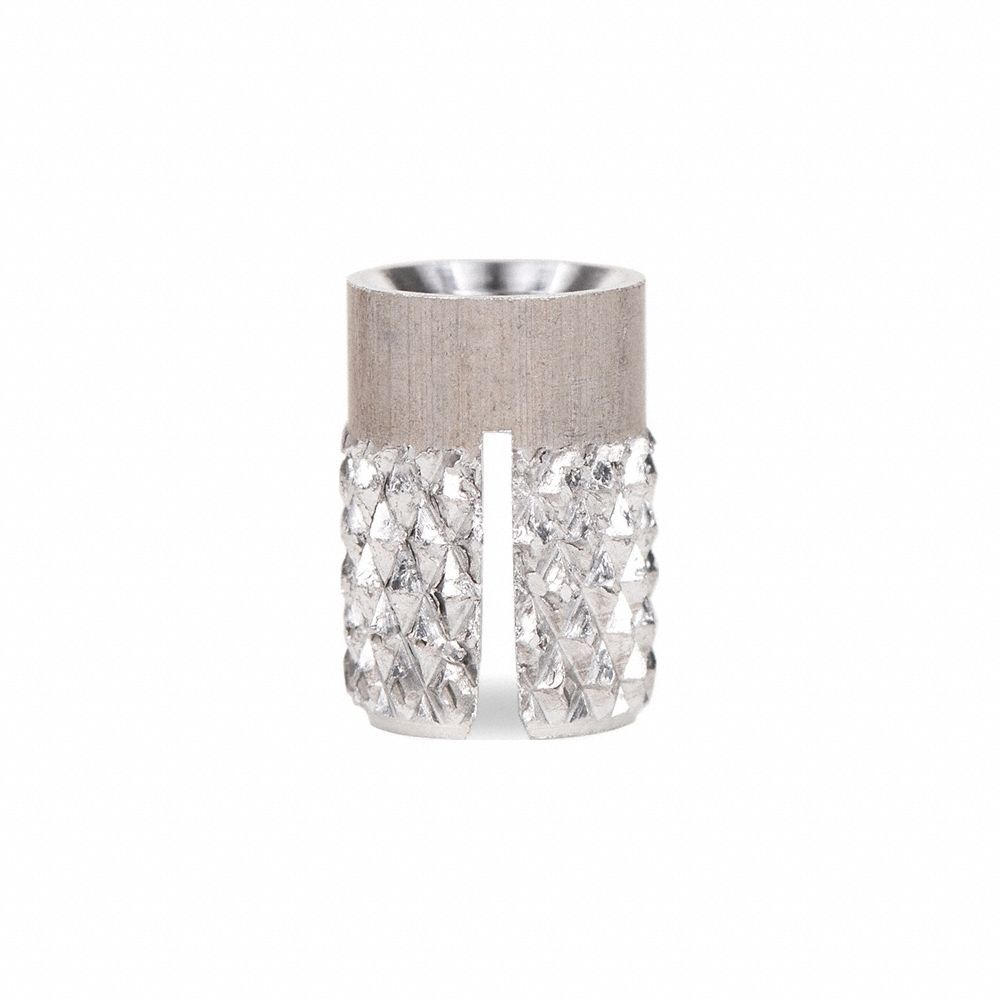

G	2403ALPK25	-	-	-	€41.72	25
H	260M6CRPK5	-	-	-	€17.85	5
H	260M5CRPK5	-	-	-	€11.45	5

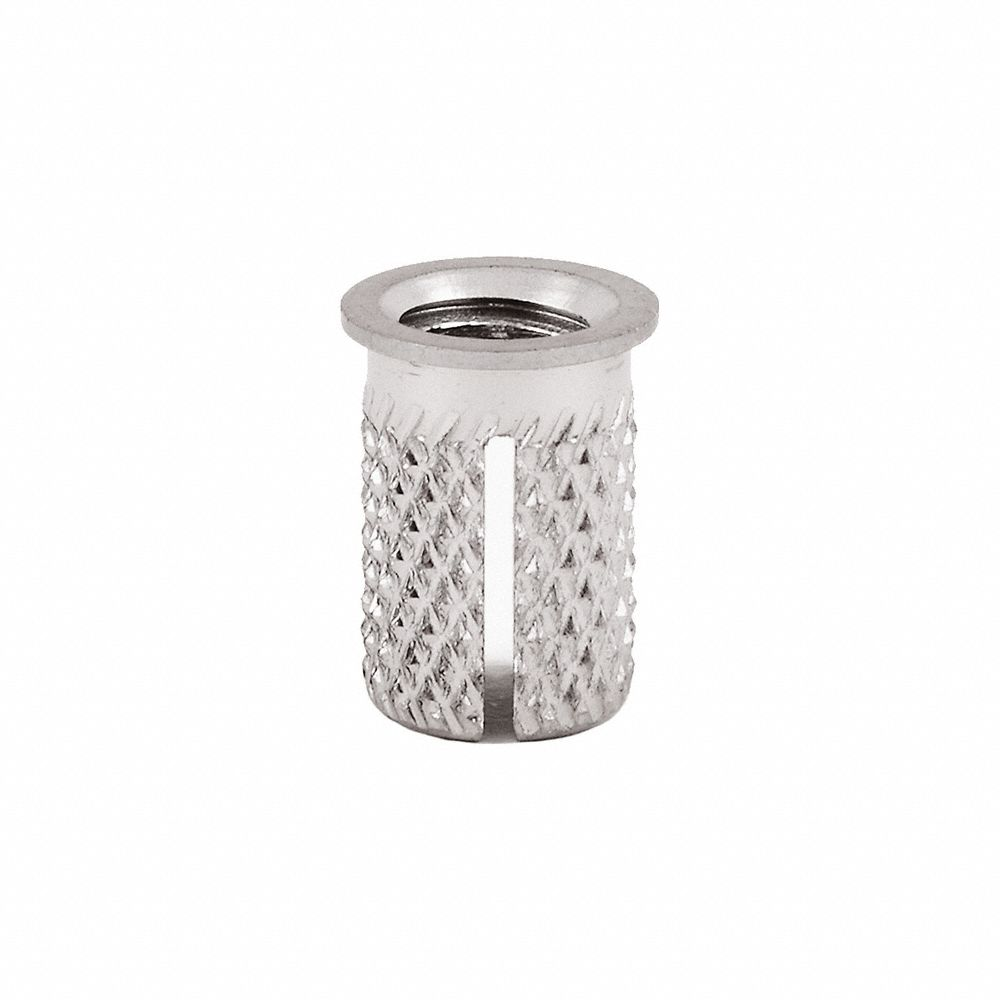

H	260M4CRPK5	-	5.842 mm	-	€9.70	5

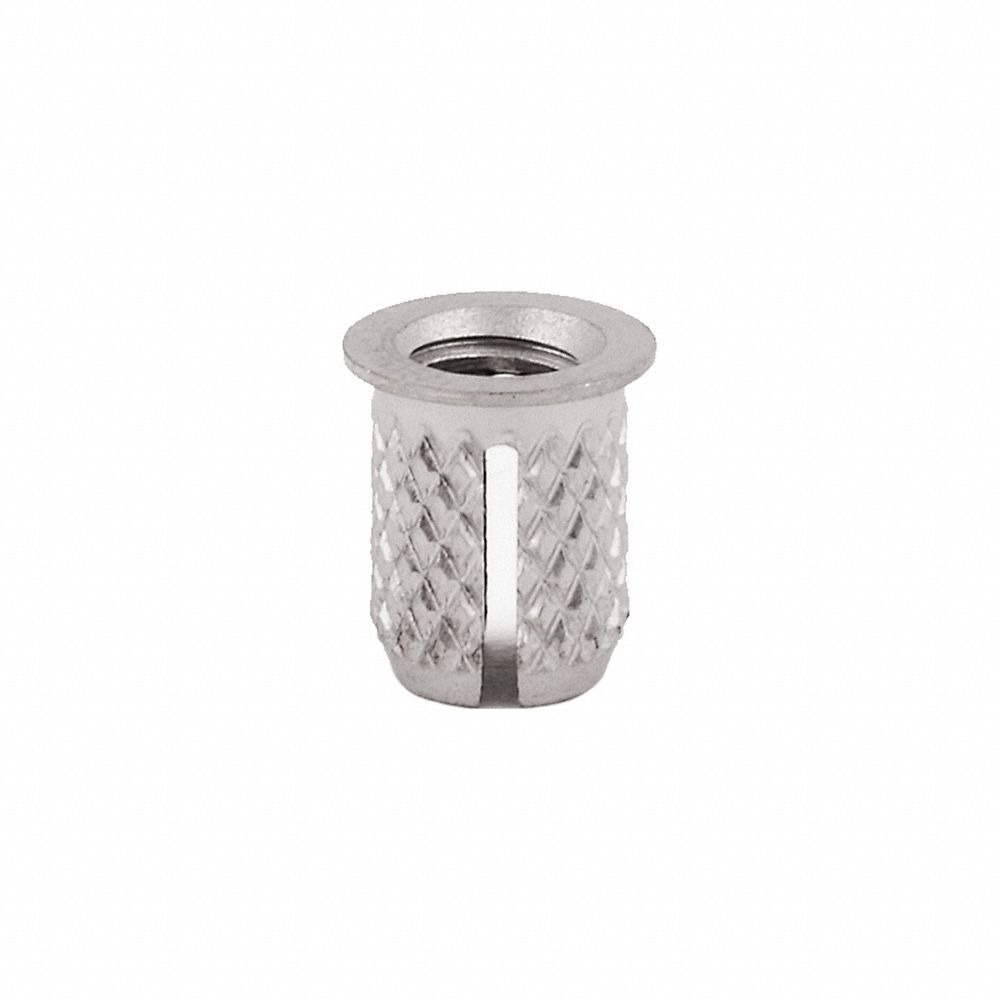

I	260M3CRPK5	-	-	-	€9.25	5
J	240M6CRPK5	-	-	-	€17.35	5
J	240M5CRPK5	-	-	-	€12.60	5
J	240M4CRPK5	-	5.842 mm	-	€10.40	5

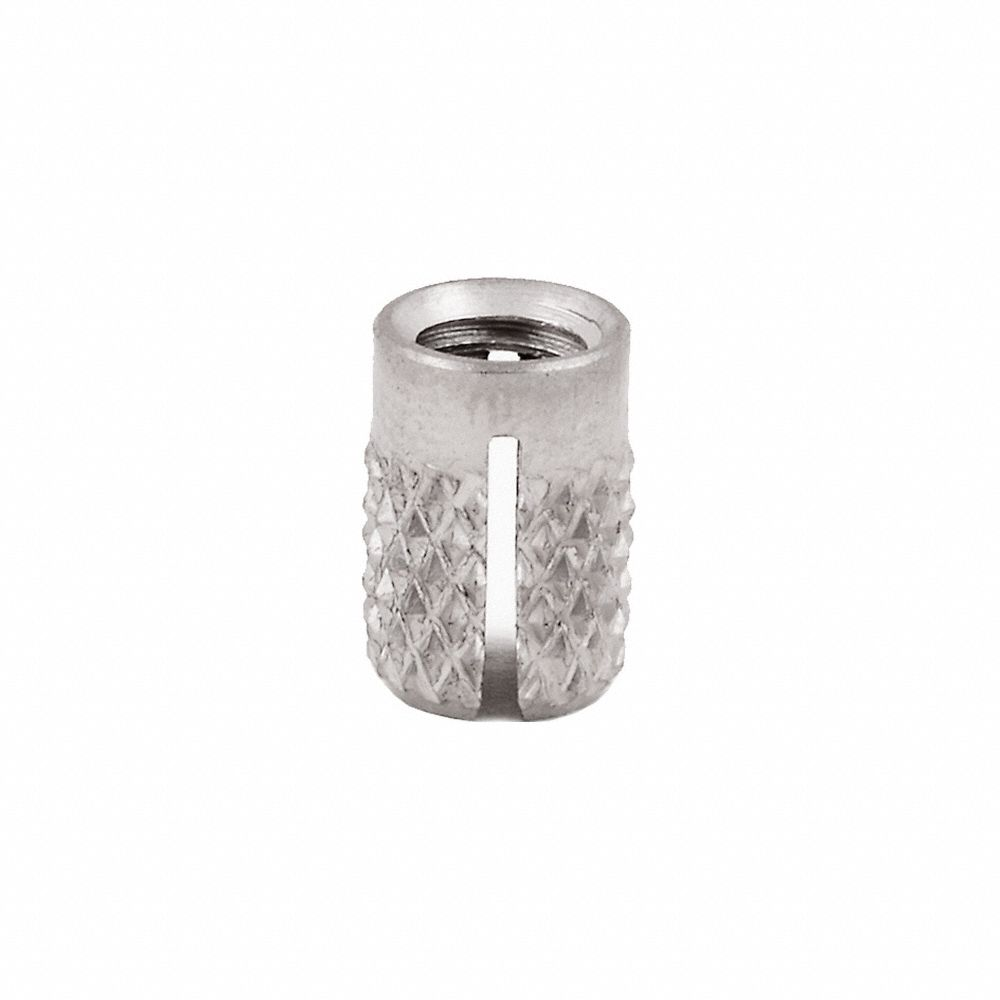

J	240M3CRPK5	-	-	-	€8.25	5
J	2403CRPK5	-	-	-	€12.60	5
K	260M8BRPK10	-	-	9.525 mm	€11.20	10

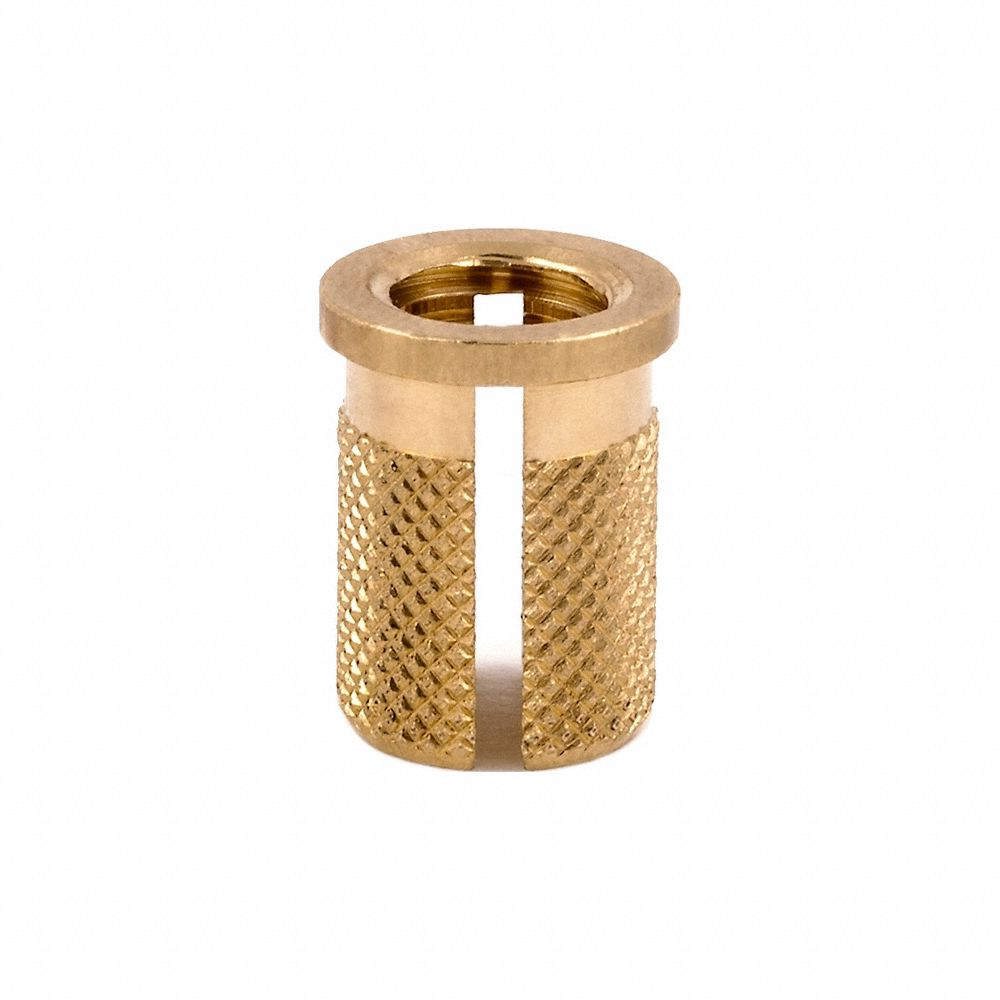

K	260M6BRPK25	-	-	-	€14.89	25
L	260M5BRPK25	-	-	-	€12.28	25
L	260M4BRPK50	-	5.842 mm	-	€19.10	50

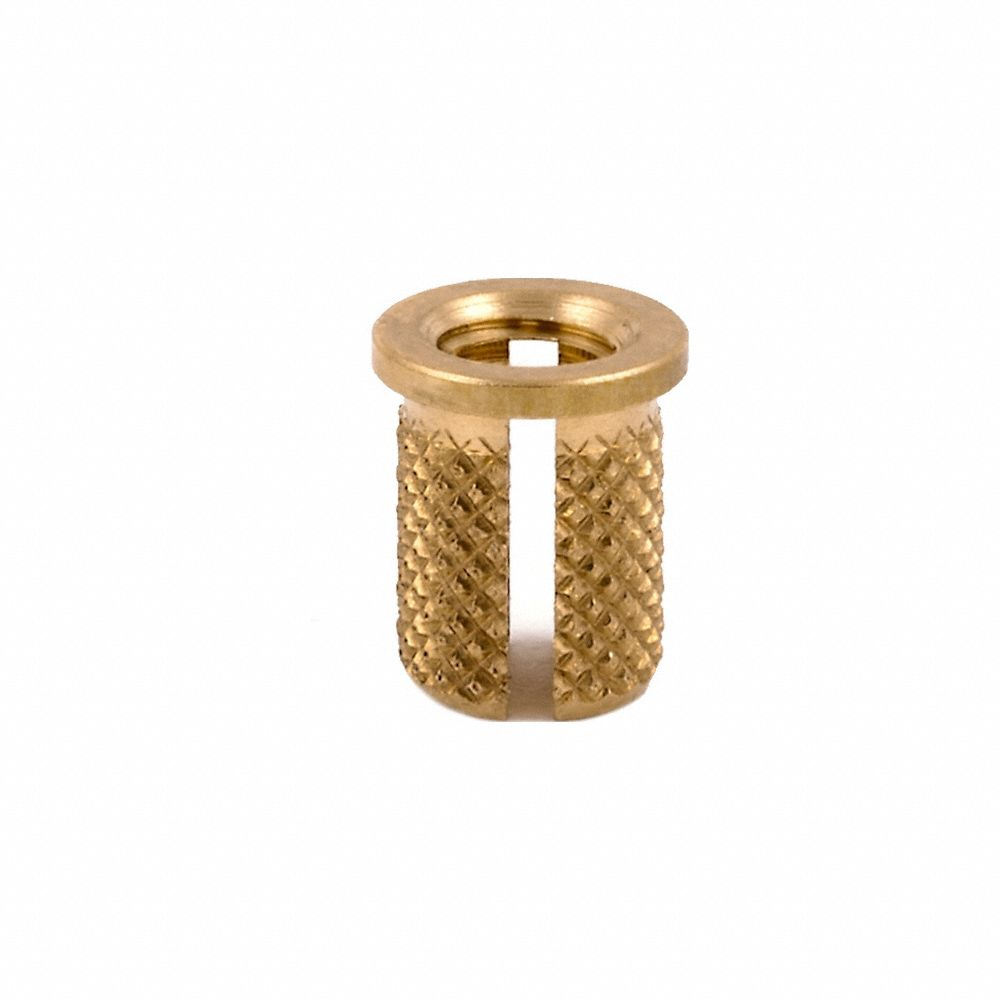

L	260M3BRPK50	-	-	-	€17.42	50

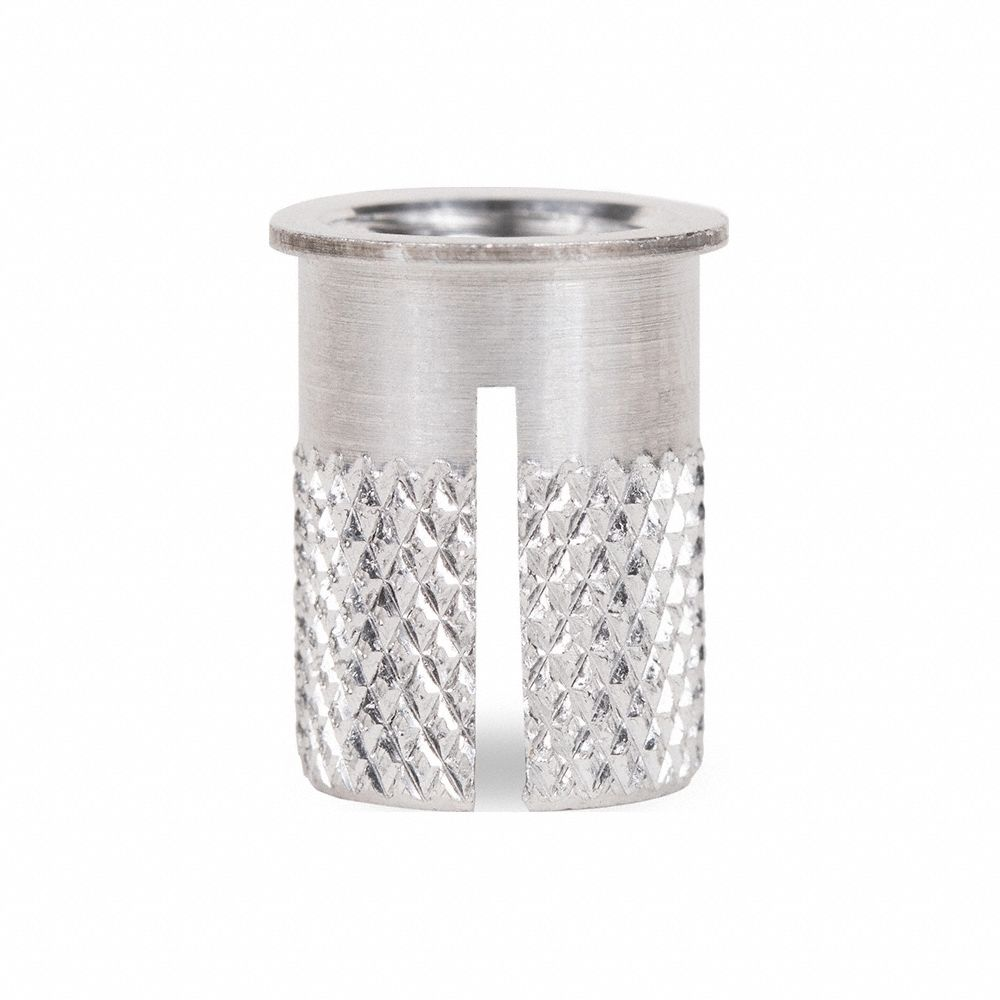

C	260M8ALPK10	-	-	-	€18.45	10
C	2605ALPK10	9/16"	-	-	€18.45	10

Style	Model	MPN	Price
A	44262	44262	€7.01
A	44263	44263	€4.21
A	44265	44265	€4.37
A	44266	44266	€4.29
A	44267	44267	€4.91
A	44268	44268	€4.91
A	44269	44269	€9.46
A	44270	44270	€9.46
A	44272	44272	€11.80
A	44274	44274	€14.45
A	44276	44276	€15.86
A	44362	44362	€7.79
A	44363	44363	€4.37
A	44365	44365	€4.98
A	44366	44366	€4.45
A	44367	44367	€5.26
A	44368	44368	€5.26
A	44369	44369	€11.97
A	44370	44370	€11.97
A	44372	44372	€14.45
A	44374	44374	€19.44
A	44376	44376	€21.54
A	44462	44462	€11.06
A	44463	44463	€4.83
A	44465	44465	€5.23

Style	Model	Thread Size	Drill Size	Internal Thread Size	Material
A	76283	#8-32	#29	#2-56	Stainless Steel	RFQ
A	64901	#10-24, #10-32, 1/2"-13, 1/2"-20, 1/4"-20, 1/4"-28, 3/8"-16, 3/8"-24, 5/16"-18, 5/16"-24, 7/16"-14, 7/16"-20	-	-	Stainless Steel	RFQ
A	64906	#10-24, #10-32, 1/2"-13, 1/2"-20, 1/4"-20, 1/4"-28, 3/8"-16, 3/8"-24, 5/16"-18, 5/16"-24, 7/16"-14, 7/16"-20	-	-	Stainless Steel	RFQ
A	76284	#10-32	#20	#4-40	Stainless Steel	RFQ
B	9303-004	#10-32	5/32"	#4-40	Stainless Steel	RFQ
A	76285	#12-28	3/16"	#6-32	Stainless Steel	RFQ
C	76543	1 1/2"-12	1 5/16"	#1-12	Stainless Steel	RFQ
A	76343	1 1/2"-12	1 7/16"	1"-8	Stainless Steel	RFQ
A	76510	1 1/4"-12	1 3/16"	7/8"-14	Stainless Steel	RFQ
A	76341	1 1/4"-12	1 3/16"	3/4"-10	Stainless Steel	RFQ
C	76541	1 1/4"-12	1 3/16"	3/4"-16	Stainless Steel	RFQ
A	76310	1 1/4"-12	1 3/16"	7/8"-9	Stainless Steel	RFQ
A	76309	1 1/8"-12	1 1/16"	3/4"-10	Stainless Steel	RFQ
A	76509	1 1/8"-12	1 1/16"	3/4"-16	Stainless Steel	RFQ
A	76342	1 3/8"-12	1 5/16"	7/8"-9	Stainless Steel	RFQ
C	76542	1 3/8"-12	1 5/16"	7/8"-14	Stainless Steel	RFQ
A	76311	1 3/8"-12	1 5/16"	1"-8	Stainless Steel	RFQ
A	76511	1 3/8"-12	1 5/16"	#1-12	Stainless Steel	RFQ
B	9303-12	1"-8	7/8"	3/4"-10	Stainless Steel	RFQ
C	76540	1"-12	15/16"	5/8"-18	Stainless Steel	RFQ
A	76340	1"-12	15/16"	5/8"-11	Stainless Steel	RFQ
A	76334	1/2"-13	29/64"	1/4"-20	Stainless Steel	RFQ
A	76303	1/2"-13	29/64"	5/16"-18	Stainless Steel	RFQ
B	9303-524	1/2"-13	27/64"	5/16"-24	Stainless Steel	RFQ
A	76503	1/2"-13	29/64"	5/16"-24	Stainless Steel	RFQ

Style	Model	Thread Size	Drill Size	Internal Thread Size	Material
A	64905	#10-24, #10-32, 1/2"-13, 1/2"-20, 1/4"-20, 1/4"-28, 3/8"-16, 3/8"-24, 5/16"-18, 5/16"-24, 7/16"-14, 7/16"-20	-	-	Carbon Steel	RFQ
A	64900	#10-24, #10-32, 1/2"-13, 1/2"-20, 1/4"-20, 1/4"-28, 3/8"-16, 3/8"-24, 5/16"-18, 5/16"-24, 7/16"-14, 7/16"-20	-	-	Carbon Steel	RFQ
B	66113	1 1/2"-12	1 7/16"	1 1/8"-12	Carbon Steel	RFQ
C	65913	1 1/2"-12	1 7/16"	1 1/8"-7	Carbon Steel	RFQ
C	65943	1 1/2"-12	1 7/16"	1"-8	Carbon Steel	RFQ
B	66143	1 1/2"-12	1 5/16"	#1-12	Carbon Steel	RFQ
B	66141	1 1/4"-12	1 3/16"	3/4"-16	Carbon Steel	RFQ
C	65941	1 1/4"-12	1 3/16"	3/4"-10	Carbon Steel	RFQ
B	66110	1 1/4"-12	1 3/16"	7/8"-14	Carbon Steel	RFQ
C	65910	1 1/4"-12	1 3/16"	7/8"-9	Carbon Steel	RFQ
C	65909	1 1/8"-12	1 1/16"	3/4"-10	Carbon Steel	RFQ
B	66109	1 1/8"-12	1 1/16"	3/4"-16	Carbon Steel	RFQ
C	65942	1 3/8"-12	1 5/16"	7/8"-9	Carbon Steel	RFQ
B	66112	1 3/8"-12	1 5/16"	1"-14	Carbon Steel	RFQ
B	66111	1 3/8"-12	1 5/16"	#1-12	Carbon Steel	RFQ
C	65911	1 3/8"-12	1 5/16"	1"-8	Carbon Steel	RFQ
B	66142	1 3/8"-12	1 5/16"	7/8"-14	Carbon Steel	RFQ
C	65914	1 5/8"-12	1 9/16"	1 1/4"-7	Carbon Steel	RFQ
B	66114	1 5/8"-12	1 9/16"	1 1/4"-12	Carbon Steel	RFQ
B	66116	1 7/8"-12	1 13/16"	1 1/2"-12	Carbon Steel	RFQ
C	65916	1 7/8"-12	1 13/16"	1 1/2"-6	Carbon Steel	RFQ
C	65940	1"-12	15/16"	5/8"-11	Carbon Steel	RFQ
B	66140	1"-12	15/16"	5/8"-18	Carbon Steel	RFQ
B	66103	1/2"-13	29/64"	5/16"-24	Carbon Steel	RFQ
C	65903	1/2"-13	29/64"	5/16"-18	Carbon Steel	RFQ

Style	Model	Drill Size	Internal Thread Size	Material
A	9329-006	#7	#6-32	Steel	RFQ
A	9329-14	1 7/64"	7/8"-9	Steel	RFQ
A	9329-1414	1 7/64"	7/8"-14	Steel	RFQ
A	9329-16	1 9/32"	1"-8	Steel	RFQ
A	9329-1614	1 9/32"	1"-14	Steel	RFQ
A	9329-3	5/16"	#10-24	Steel	RFQ
A	9329-332	5/16"	#10-32	Steel	RFQ
A	9329-004	5/32"	#4-40	Steel	RFQ
B	9335-10	7/8"	5/8"-11	Steel	RFQ
A	9329-12	7/8"	3/4"-10	Steel	RFQ
A	9329-1216	7/8"	3/4"-16	Steel	RFQ
B	9329-1412	11/16"	M14 x 1.25	Steel	RFQ
B	9329-1408	11/16"	M14 x 1.25	Steel	RFQ
B	9329-1406	11/16"	M14 x 1.25	Steel	RFQ
B	9750-14	16.5 mm	M14 x 1.25	Steel	RFQ
A	9329-720	17/32"	7/16"-20	Steel	RFQ
B	9335-6	17/32"	3/8"-16	Steel	RFQ
A	9329-7	17/32"	7/16"-14	Steel	RFQ
A	9329-8	21/32"	1/2"-13	Steel	RFQ
A	9329-801	21/32"	1/2"-13	Steel	RFQ
A	9329-820	21/32"	1/2"-20	Steel	RFQ
A	9329-9	21/32"	9/16"-12	Steel	RFQ
A	9329-918	21/32"	9/16"-18	Steel	RFQ
A	9329-428	23/64"	1/4"-28	Steel	RFQ
A	9329-4	23/64"	1/4"-20	Steel	RFQ

Style	Model	MPN	Price
A	05205	05205	€0.16	RFQ
A	05207	05207	€0.16
A	05208	05208	€0.17
A	05209	05209	€0.19
A	05211	05211	€0.20
A	05215	05215	€0.25
A	05221	05221	€0.41
A	05225	05225	€0.57
A	05234	05234	€0.78
A	05305	05305	€0.16
A	05307	05307	€0.16
A	05308	05308	€0.18
A	05309	05309	€0.21
A	05311	05311	€0.23
A	05315	05315	€0.28
A	05321	05321	€0.60
A	05325	05325	€0.60
A	05334	05334	€0.81
A	05405	05405	€0.17
A	05407	05407	€0.17
A	05408	05408	€0.19
A	05409	05409	€0.23
A	05411	05411	€0.27
A	05415	05415	€0.31
A	05421	05421	€0.46

Style	Model	MPN	Price

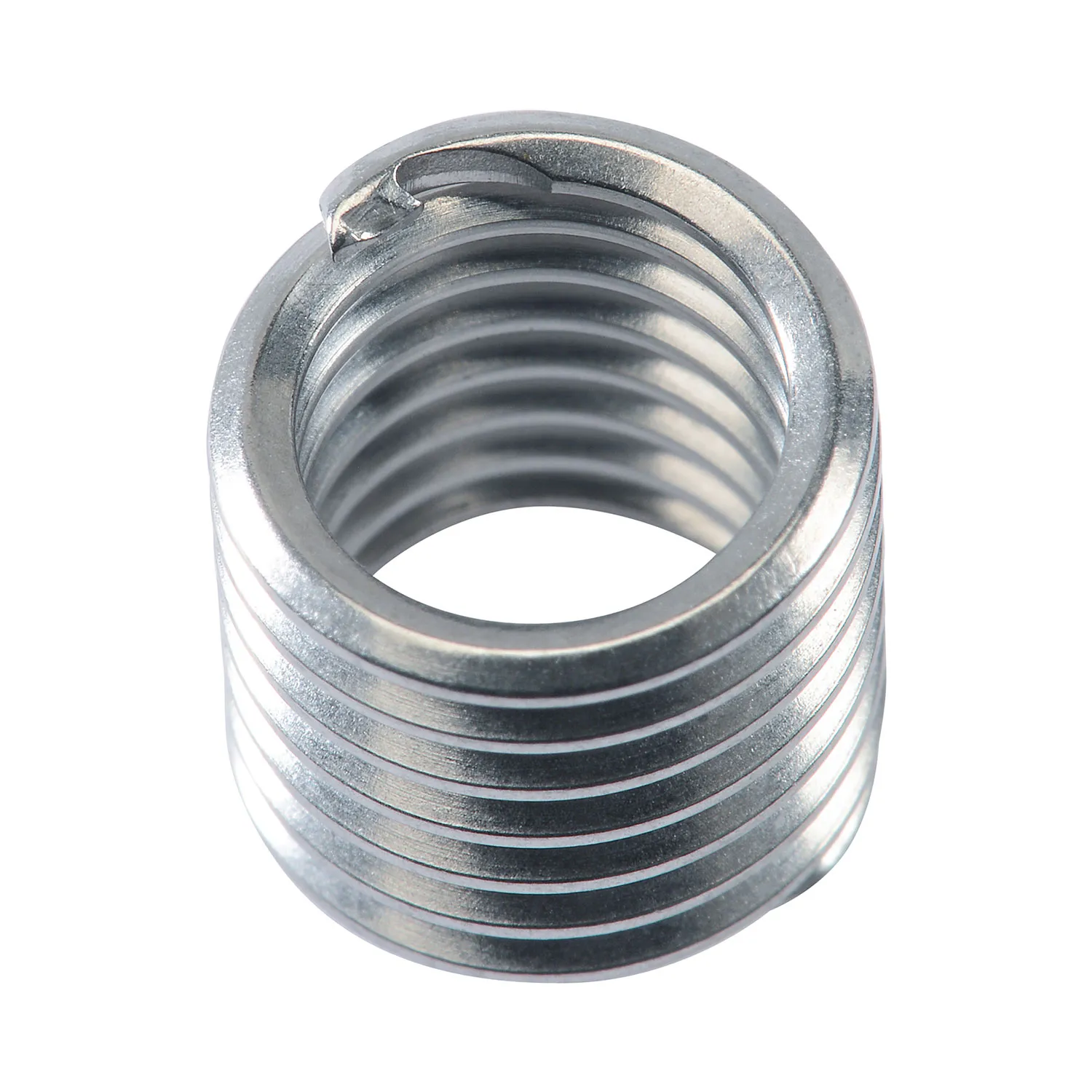

A	09205	09205	€0.30
A	09207	09207	€0.30
A	09208	09208	€0.31
A	09209	09209	€0.33
A	09211	09211	€0.37
A	09215	09215	€0.45
A	09221	09221	€0.57
A	09305	09305	€0.30
A	09307	09307	€0.31
A	09308	09308	€0.33
A	09309	09309	€0.35
A	09311	09311	€0.43
A	09315	09315	€0.54
A	09321	09321	€0.72
A	09407	09407	€0.33
A	09408	09408	€0.35
A	09409	09409	€0.38
A	09411	09411	€0.48
A	09415	09415	€0.63
A	09421	09421	€0.88

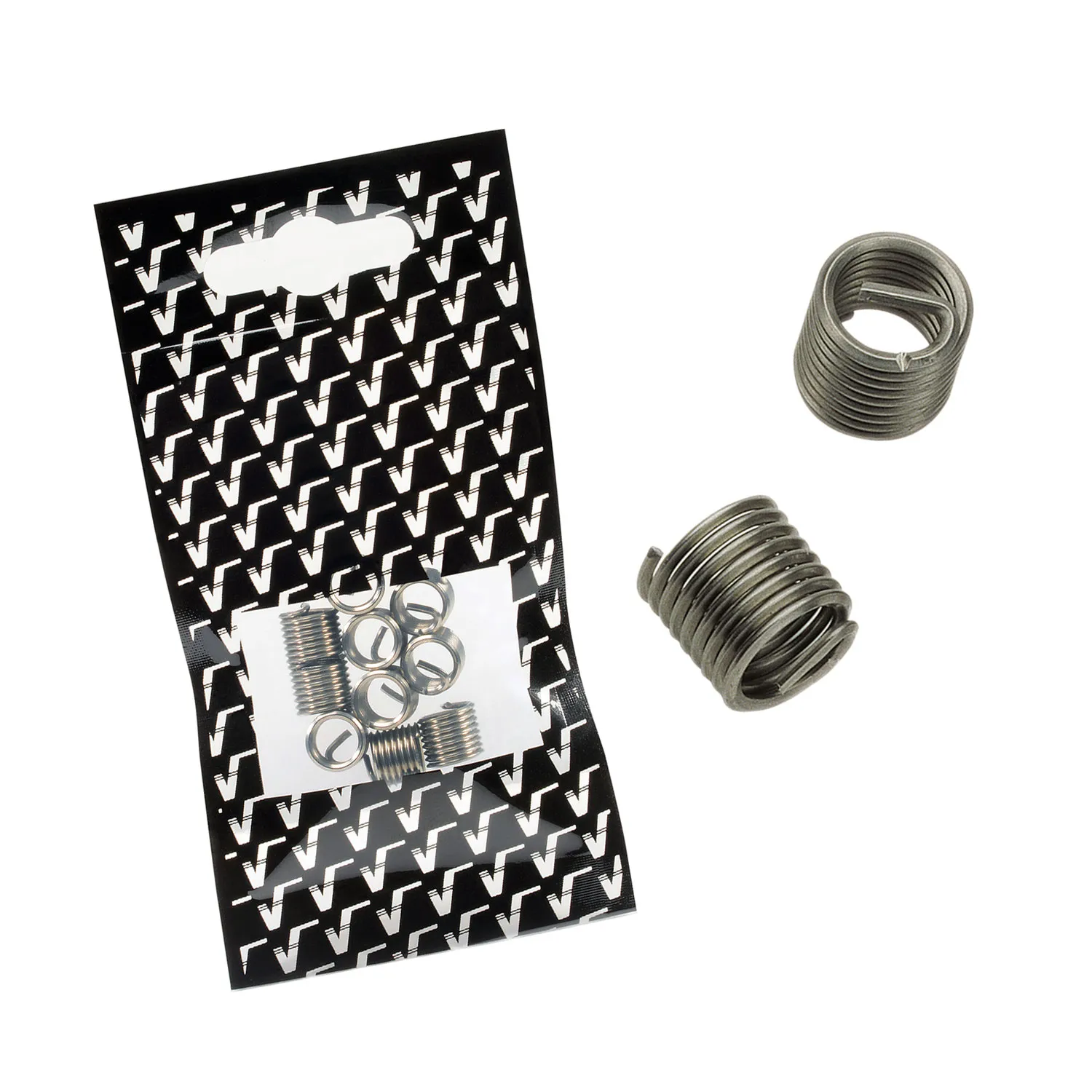

B	40202	40202	€6.24
B	40203	40203	€6.24
B	40204	40204	€3.35
B	40205	40205	€3.35
B	40206	40206	€3.51

Style	Model	MPN	Price
A	44241	44241	€7.01
A	44242	44242	€7.01
A	44243	44243	€4.21
A	44244	44244	€4.59
A	44245	44245	€4.29
A	44246	44246	€4.91
A	44247	44247	€4.91
A	44248	44248	€9.46
A	44249	44249	€9.46
A	44251	44251	€11.80
A	44253	44253	€14.45
A	44255	44255	€15.90
A	44341	44341	€7.79
A	44342	44342	€7.79
A	44343	44343	€4.37
A	44344	44344	€4.98
A	44345	44345	€4.45
A	44346	44346	€5.26
A	44347	44347	€5.26
A	44348	44348	€11.92
A	44349	44349	€11.92
A	44351	44351	€14.45
A	44353	44353	€19.44
A	44355	44355	€21.58
A	44441	44441	€11.06

Style	Model	MPN	Price
A	44380	44380	€3.90
A	44381	44381	€4.83
A	44382	44382	€5.23
A	44383	44383	€6.08

Style	Model	MPN	Price
A	08241	08241	€0.48
A	08242	08242	€0.48
A	08243	08243	€0.20
A	08244	08244	€0.24
A	08245	08245	€0.43
A	08246	08246	€0.57
A	08247	08247	€0.57
A	08248	08248	€1.49
A	08249	08249	€1.49
A	08251	08251	€1.96
A	08253	08253	€2.48
A	08255	08255	€2.78
A	08341	08341	€0.54
A	08342	08342	€0.54
A	08343	08343	€0.23
A	08344	08344	€0.29
A	08345	08345	€0.48
A	08346	08346	€0.64
A	08347	08347	€0.64
A	08348	08348	€1.98
A	08349	08349	€1.98
A	08351	08351	€2.48
A	08353	08353	€3.48
A	08355	08355	€3.91
A	08441	08441	€0.85

Style	Model	MPN	Price
A	08380	08380	€0.34
A	08381	08381	€0.53
A	08382	08382	€0.60
A	08383	08383	€0.80
A	08384	08384	€2.07
A	08385	08385	€2.07
A	08386	08386	€6.39
A	08387	08387	€7.10

Style	Model	MPN	Price
A	08262	08262	€0.48
A	08263	08263	€0.20
A	08265	08265	€0.23
A	08266	08266	€0.43
A	08267	08267	€0.57
A	08268	08268	€0.57
A	08269	08269	€1.49
A	08270	08270	€1.49
A	08272	08272	€1.96
A	08274	08274	€2.48
A	08276	08276	€2.77
A	08362	08362	€0.54
A	08363	08363	€0.23
A	08365	08365	€0.29
A	08366	08366	€0.46
A	08367	08367	€0.64
A	08368	08368	€0.64
A	08369	08369	€1.99
A	08370	08370	€1.99
A	08372	08372	€2.48
A	08374	08374	€3.48
A	08376	08376	€3.90
A	08462	08462	€0.85
A	08463	08463	€0.26
A	08465	08465	€0.30

Style	Model	MPN	Price
A	44221	44221	€5.85
A	44222	44222	€5.85
A	44223	44223	€5.85
A	44224	44224	€3.66
A	44225	44225	€3.66
A	44226	44226	€4.29
A	44227	44227	€3.74
A	44228	44228	€4.13
A	44229	44229	€4.13
A	44230	44230	€7.17
A	44231	44231	€7.17
A	44233	44233	€10.99
A	44235	44235	€14.35
A	44237	44237	€15.82
A	44321	44321	€6.46
A	44322	44322	€6.46
A	44323	44323	€6.46
A	44324	44324	€3.74
A	44325	44325	€3.74
A	44326	44326	€4.52
A	44327	44327	€3.90
A	44328	44328	€4.56
A	44329	44329	€4.56
A	44330	44330	€7.44
A	44331	44331	€7.44

Style	Model	MPN	Price
A	08731	08731	€4.38
A	08732	08732	€4.80
A	08733	08733	€5.32
A	08734	08734	€6.17
A	08735	08735	€8.82
A	08736	08736	€9.59
A	08737	08737	€11.11
A	08738	08738	€14.90
B	08739	08739	€21.88
B	08740	08740	€32.83

Style	Model	Thread Size	Overall Length	Insert Dia.	Compatible Material	Drill Size	Internal Thread Size	Thread Type	Max. Hole Dia.	Price	Pkg. Qty.
A	270-4-BR-PK50	-	-	-	-	21/64"	1/4"-20	Coarse	-	€66.59	50
B	9400-008	-	-	-	-	1/4"	#8-32	-	-	-	1	RFQ
B	9400-M8	-	-	-	-	1/2"	M8 x 1.25	-	-	-	1	RFQ
B	9400-M6	-	-	-	-	3/8"	M6 x 1	-	-	-	1	RFQ
B	9400-M5	-	-	-	-	3/8"	M5 x 0.8	-	-	-	1	RFQ
B	9400-M4	-	-	-	-	1/4"	M4 x 0.7	-	-	-	1	RFQ
B	9400-M3	-	-	-	-	1/4"	M3 x 0.5	-	-	-	1	RFQ
B	9400-624	-	-	-	-	1/2"	3/8"-24	-	-	-	1	RFQ
B	9400-6	-	-	-	-	1/2"	3/8"-16	-	-	-	1	RFQ
B	9400-524	-	-	-	-	1/2"	5/16"-24	-	-	-	1	RFQ
B	9400-5	-	-	-	-	1/2"	5/16"-18	-	-	-	1	RFQ
B	9400-428	-	-	-	-	3/8"	1/4"-28	-	-	-	1	RFQ
B	9400-4	-	-	-	-	3/8"	1/4"-20	-	-	-	1	RFQ
B	9400-332	-	-	-	-	3/8"	#10-32	-	-	-	1	RFQ
B	9400-3	-	-	-	-	3/8"	#10-24	-	-	-	1	RFQ
B	9400-006	-	-	-	-	1/4"	#6-32	-	-	-	1	RFQ
B	9400-004	-	-	-	-	1/4"	#4-40	-	-	-	1	RFQ
C	260-002-RS-PK50	#2-56	5/32"	9/64"	Plastic	1/8"	#2-56	Coarse	1/8"	€18.29	50
D	260-004-RS-PK50	#4-40	3/16"	11/64"	Plastic	3/16"	#4-40	Coarse	0.156"	€19.30	50
E	270-006-BR-PK50	#6-32	3/8"	13/64"	Plastic, Wood	#5	#6-32	Coarse	0.205"	€48.45	50
F	170-006-BR-PK50	#6-32	3/16"	13/64"	Plastic, Wood	#5	#6-32	Coarse	0.205"	€33.82	50
G	260-006-RS-PK50	#6-32	1/4"	13/64"	Plastic	3/16"	#6-32	Coarse	0.188"	€19.53	50
H	260-008-RS-PK50	#8-32	5/16"	15/64"	Plastic	7/32"	#8-32	Coarse	0.219"	€22.30	50
I	170-008-BR-PK50	#8-32	3/16"	15/64"	Plastic, Wood	15/64"	#8-32	Coarse	0.234"	€34.49	50
J	270-008-BR-PK50	#8-32	3/8"	15/64"	Plastic, Wood	15/64"	#8-32	Coarse	0.234"	€53.30	50

Style	Model	Thread Size	Overall Length	Drill Size	Finish	Shank Dia.	Thread Direction	Features	Tap Style	Price
A	328-8	1/2"-14	3 1/4"	45/64"	Bright	57/64"	Right Hand	Used For General Hand And Machine Tapping Operations	Pipe	€445.04
B	328-4	1/4"-18	2 1/2"	-	Uncoated	11/16"	Right Hand	-	Pipe	€271.65
A	328-2	1/8"-27	2 7/16"	-	Uncoated	9/16"	Right Hand	Used For General Hand And Machine Tapping Operations	Pipe	€141.41
B	328-6	3/8"-18	3 1/8"	9/16"	Uncoated	11/16"	Right Hand	-	Pipe	€530.97

Select your cookie preferences

Strictly Necessary Cookies

Advertising

Recommendations

Functionality

Analytics

Categories

Brands

Thread Inserts

Thread Inserts

Frequently Asked Questions

Why are some thread inserts larger in diameter than the tapped hole before installation?

How to choose the length of a helical insert?

How to install a helical thread insert?

How to install a key-locking thread insert?

Can thread inserts be removed once installed?

Popular Search Queries

Explore More
