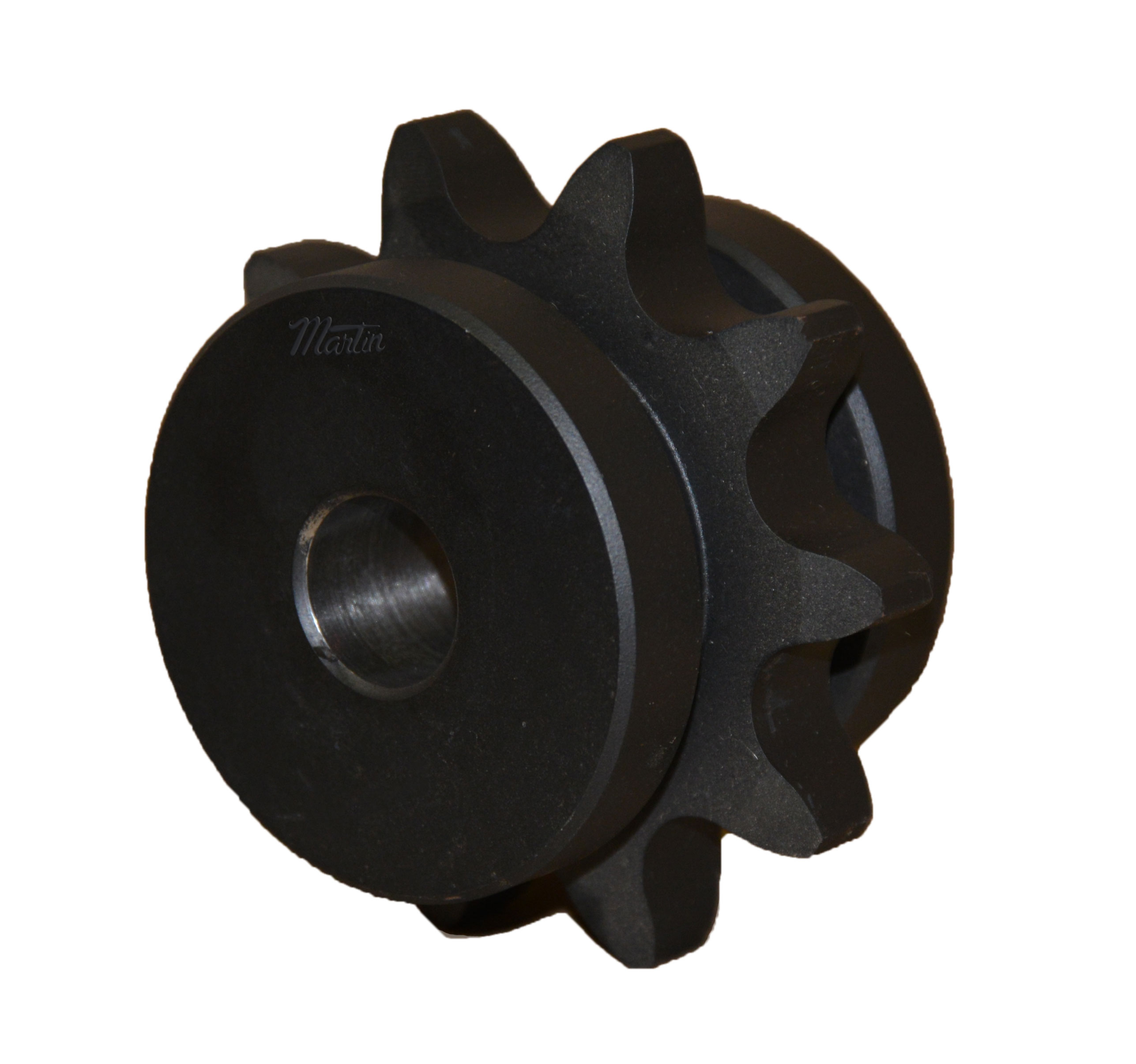

MARTIN SPROCKET 100C12 Sprocket, 100 Chain, 12 Teeth, 4.830 Inch Pitch Dia., 5.415 Inch O.D., Steel
Item: AJ9LYFModel: 100C12
7 In Stock
Ships within 2 days via
€370.83 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 1" |
| Bore Type | Finished Bore |
| Chain Number | 100 |
| Chain Pitch | 1 1/4" |
| Chain Size | #100 |
| Construction | Welded |
| Construction Type | Welded |
| Finished Bore Size | 1" |
| For Chain Number | 100 |
| For Chain Pitch | 1 1/4" |
| Hub Configuration | C |
| Hub Dia. | 4" |
| Hub Outside Dia. | 4" |
| Individually Packaged | No |
| Length Through Bore | 2 7/8" |
| Length Thru Bore | 2 7/8" |
| Material | Steel |
| Max. Bore Size | 2 1/4" |
| Min. Bore Size | 1" |
| No. Of Chain Rows | 1 |
| No. Of Teeth | 12 |
| Outside Dia. | 5.415" |
| Pitch | 1 1/4" |
| Pitch Dia. | 4.83" |
| Single Strand Tooth Thickness | 0.692" |
| Storage Dimension Height | 2 7/8" |
| Storage Dimension Length | 5.415" |
| Storage Dimension Width | 5.415" |
| Type | Stock Bore Type C |
Shipping Info:
| Ship weight (kg) | 3.77 |
| Ship height (cm) | 7.32 |
| Ship length (cm) | 13.77 |
| Ship width (cm) | 13.77 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | Outside Dia. | Bore Dia. | Length Through Bore | Hub Dia. | For Chain Number | For Chain Pitch | Bore Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
100C54 | 21.498" | 22.212" | 1 1/2" to 4" | 3 1/4" | 6" | 100 | 1 1/4" | Finished Bore | €814.80 | |
 |
100C60 | 23.8842" | 24.601" | - | 3 1/4" | - | 100 | 1 1/4" | Finished Bore | €855.43 | |
 |
100C70 | 27.8615" | 28.583" | 1 1/2" to 5 1/4" | 3 3/4" | 7" | 100 | 1 1/4" | Finished Bore | €1,071.28 | |
|
100C72 | 28.657" | 29.38" | 1 1/2" to 5 1/4" | 3 3/4" | 7" | 100 | 1 1/4" | Finished Bore | €1,082.03 | |
|
100C80 | 31.8392" | 32.565" | 1 1/2" to 5 1/4" | 3 3/4" | 7" | 100 | 1 1/4" | Finished Bore | €1,274.30 | |
 |
100C84 | 33.4303" | 34.157" | 1 1/2" to 5 1/4" | 3 3/4" | 7" | 100 | 1 1/4" | Finished Bore | €1,307.70 | |
 |
100C96 | 38.204" | 38.934" | 1 1/2" to 5 1/4" | 4 1/2" | 7" | 100 | 1 1/4" | Finished Bore | €1,907.13 |
