MARTIN SPROCKET 100C84 Roller Chain Sprocket, 100 Chain, Stock Bore, 84 Teeth, 33.430 Inch Pitch Dia., Steel
Get it by Wednesday, Dec 17
€1,307.70 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 100 |
| Chain Pitch | 1 1/4" |
| Construction | Welded With Lightening Holes |
| Construction Type | Welded With Lightening Holes |
| Finished Bore Size | 1 1/2" |
| For Chain Number | 100 |
| For Chain Pitch | 1 1/4" |
| Hub Configuration | C |
| Hub Outside Dia. | 7" |
| Individually Packaged | No |
| Length Through Bore | 3 3/4" |
| Length Thru Bore | 3 3/4" |
| Material | Steel |
| Max. Bore Size | 5 1/4" |
| Min. Bore Size | 1 1/2" |
| No. Of Teeth | 84 |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 84 |
| Outside Dia. | 34.157" |
| Pitch | 1 1/4" |
| Pitch Dia. | 33.4303" |
| Single Strand Tooth Thickness | 0.692" |
| Storage Dimension Height | 3 3/4" |
| Storage Dimension Length | 34 4/25" |
| Storage Dimension Width | 34 4/25" |
Shipping Info:
| Ship weight (kg) | 67.95 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 86.77 |
| Ship width (cm) | 86.77 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Length Through Bore | For Chain Number | For Chain Pitch | Bore Type | Pitch | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
100C54 | 54 | 21.498" | 22.212" | 3 1/4" | 100 | 1 1/4" | Finished Bore | 1 1/4" | €814.80 | |
 |
100C60 | 60 | 23.8842" | 24.601" | 3 1/4" | 100 | 1 1/4" | Finished Bore | 1 1/4" | €855.43 | |
 |
100C70 | 70 | 27.8615" | 28.583" | 3 3/4" | 100 | 1 1/4" | Finished Bore | 1 1/4" | €1,071.28 | |
|
100C72 | 72 | 28.657" | 29.38" | 3 3/4" | 100 | 1 1/4" | Finished Bore | 1 1/4" | €1,082.03 | |
|
100C80 | 80 | 31.8392" | 32.565" | 3 3/4" | 100 | 1 1/4" | Finished Bore | 1 1/4" | €1,274.30 | |
 |
100C96 | 96 | 38.204" | 38.934" | 4 1/2" | 100 | 1 1/4" | Finished Bore | 1 1/4" | €1,907.13 | |
 |

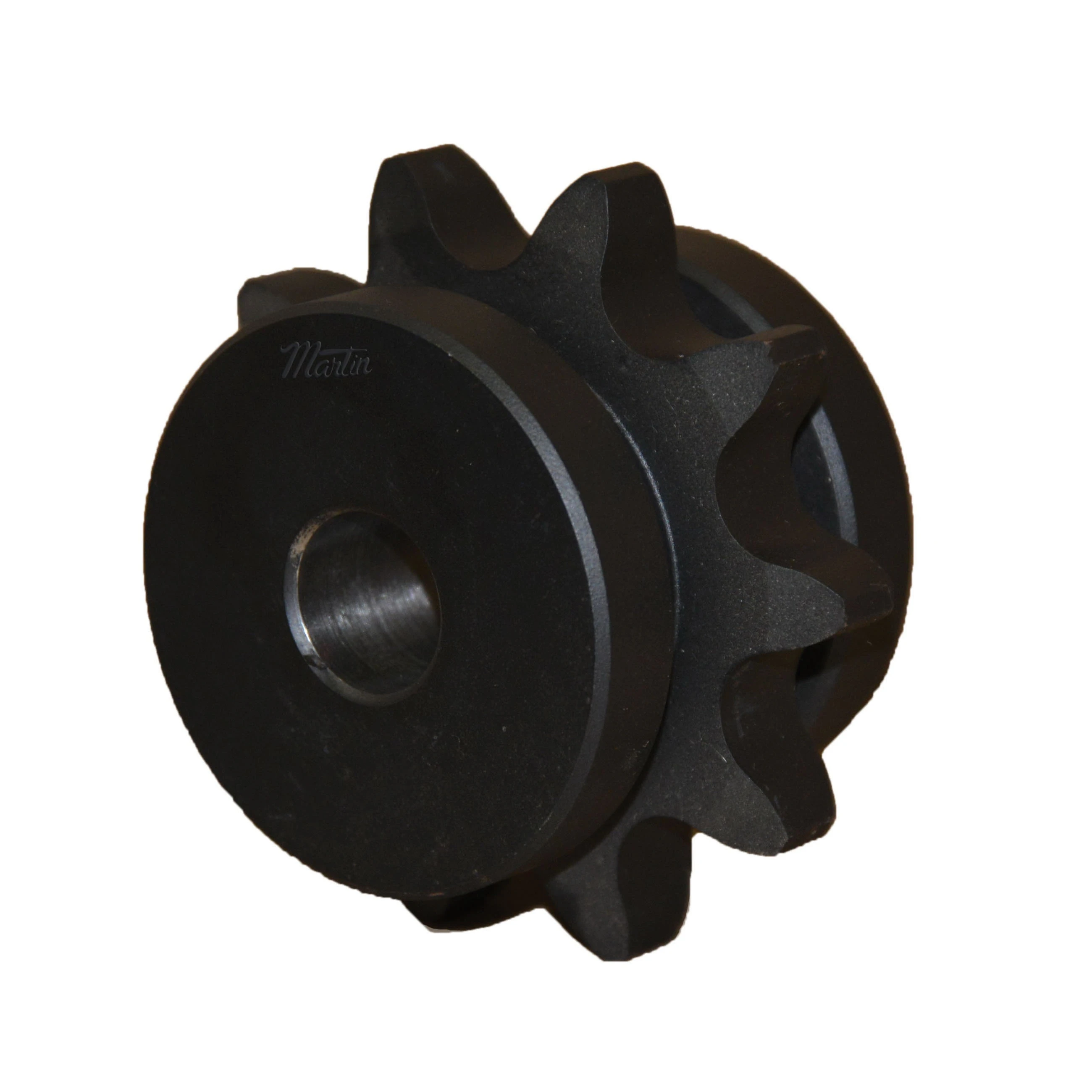

100C10 | 10 | 4.045" | 4.598" | 2 7/8" | 100 | 1 1/4" | Finished Bore | 1 1/4" | €315.99 |
