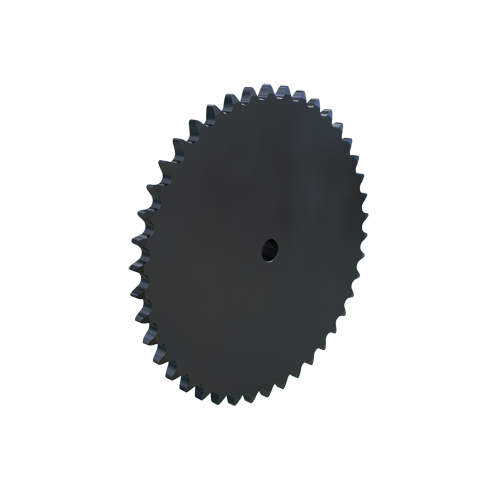

MARTIN SPROCKET 100B42 Roller Chain Sprocket, 100 Chain, Stock Bore, 42 Teeth, 16.727 Inch Pitch Dia., Steel
16.727"
Get it by Wednesday, Dec 17
€586.48 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 100 |
| Chain Pitch | 1 1/4" |
| Construction | Welded |
| Construction Type | Welded |
| Finished Bore Size | 1 1/4" |
| For Chain Number | 100 |
| For Chain Pitch | 1 1/4" |
| Hub Configuration | B |
| Hub Diameter | 5" |
| Hub Outside Dia. | 5" |
| Individually Packaged | No |
| Length Through Bore | 2 1/2" |
| Length Thru Bore | 2 1/2" |
| Material | Steel |
| Max. Bore Size | 3 5/16" |
| Min. Bore Size | 1 1/4" |
| No. Of Teeth | 42 |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 42 |
| Outside Dia. | 17.43" |
| Pitch | 1 1/4" |
| Pitch Dia. | 16.7269" |
| Single Strand Tooth Thickness | 0.692" |
| Storage Dimension Height | 2 1/2" |
| Storage Dimension Length | 17.43" |
| Storage Dimension Width | 17.43" |
Shipping Info:
| Ship weight (kg) | 22.68 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 44.27 |
| Ship width (cm) | 44.27 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Length Through Bore | For Chain Number | For Chain Pitch | Bore Type | Pitch | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
100B8 | 8 | 3.2664" | 3.768" | 1 7/8" | 100 | 1 1/4" | Finished Bore | 1 1/4" | €96.50 | |
 |
100B9 | 9 | 3.6548" | 4.184" | 1 7/8" | 100 | 1 1/4" | Finished Bore | 1 1/4" | €122.36 | |
 |
100B10 | 10 | 4.0451" | 4.597" | 1 7/8" | 100 | 1 1/4" | Finished Bore | 1 1/4" | €126.39 | |
 |
100B11 | 11 | 4.4368" | 5.007" | 1 7/8" | 100 | 1 1/4" | Finished Bore | 1 1/4" | €146.79 | |
 |
100B12 | 12 | 4.8296" | 5.415" | 1 7/8" | 100 | 1 1/4" | Finished Bore | 1 1/4" | €158.52 | |
 |
100B13 | 13 | 5.2232" | 5.821" | 1 5/8" | 100 | 1 1/4" | Finished Bore | 1 1/4" | €170.53 | |
 |
100B14 | 14 | 5.6174" | 6.227" | 1 5/8" | 100 | 1 1/4" | Finished Bore | 1 1/4" | €183.86 |
